| UPC | 0731304402800 |
| 2U Tower/Rack Convertible - 3 Hour Recharge - 120 V Input - 120 V AC Output - 1 x NEMA L5-30R, 3 x NEMA 5-15R, 3 x NEMA 5-20R - 7 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SMX3KR2UNCX145 |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS X |

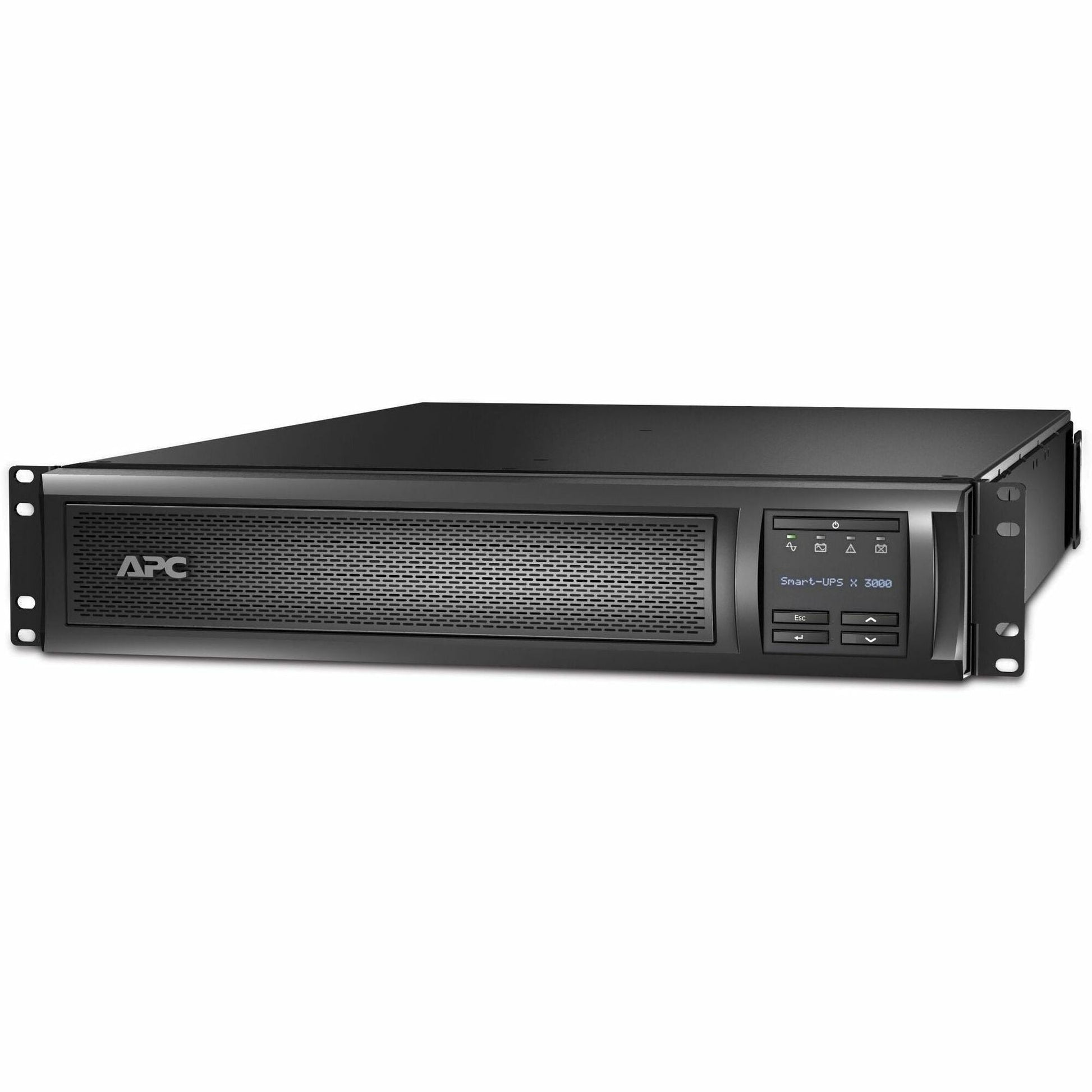

| Product Name: | Smart-UPS X 3000VA Tower/Rack Convertible UPS |
| Marketing Information: | This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. |
| Packaged Quantity: | 1 |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | NEMA L5-30P |
| Receptacle Type: | NEMA L5-30P |
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 7 |
| Cord Length: | 10 ft |
| Transfer Time: | 4 ms |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 2.88 kVA |
| Load Capacity (Watt): | 2.70 kW |
| Input Voltage: | 120 V |
| Input Voltage Range: | 70 V AC - 153 V AC |
| Input Current: | 15 A |
| Output Voltage: | 120 V AC |
| Input Frequency: | 60 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 540 J | Management |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: |
LED:
|
Interfaces/Ports |
| EPO Port: | Yes |
| USB (HID Compliant) Port: | No | Battery Information |
| Battery Chemistry: | Lead Acid |
| Battery Life: | 5 Year |
| Typical Battery Recharge Time: | 3 Hour | Environmental Conditions |
| Maximum Operating Temperature: | 104°F (40°C) |
| Storage Temperature: | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation: | 10000 ft (3048000 mm) |
| Maximum Storage Elevation: | 50000 ft (15240000 mm) |
| Storage Relative Humidity: | 0% - 95% |
| Sound Emission (A-Weighted): | 55 dB(A) |
| Thermal Dissipation: | 276 BTU/h | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 3.35" (85 mm) |
| Width: | 17.01" (432 mm) |
| Depth: | 26.26" (667 mm) |
| Rack Height: | 2U |
| Form Factor: | Tower/Rack Convertible |
| Mounting Preference: | Lower |
| Mounting Location: | Front |
| Weight (Approximate): | 38.37 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | BSMI|CSA|NOM|TÃœV|VCCI Class A |
| Green Premium: | Yes |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3KR2UNCX145_ROHS_DECLARATION&p_FileName=SMX3KR2UNCX145KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557301549&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557301549&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| WEEE Statement: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | 3 years repair or replace (excluding battery) and 2 years for battery |
| Directly Connected Equipment Guarantee: |
|
Call us if more information required.
