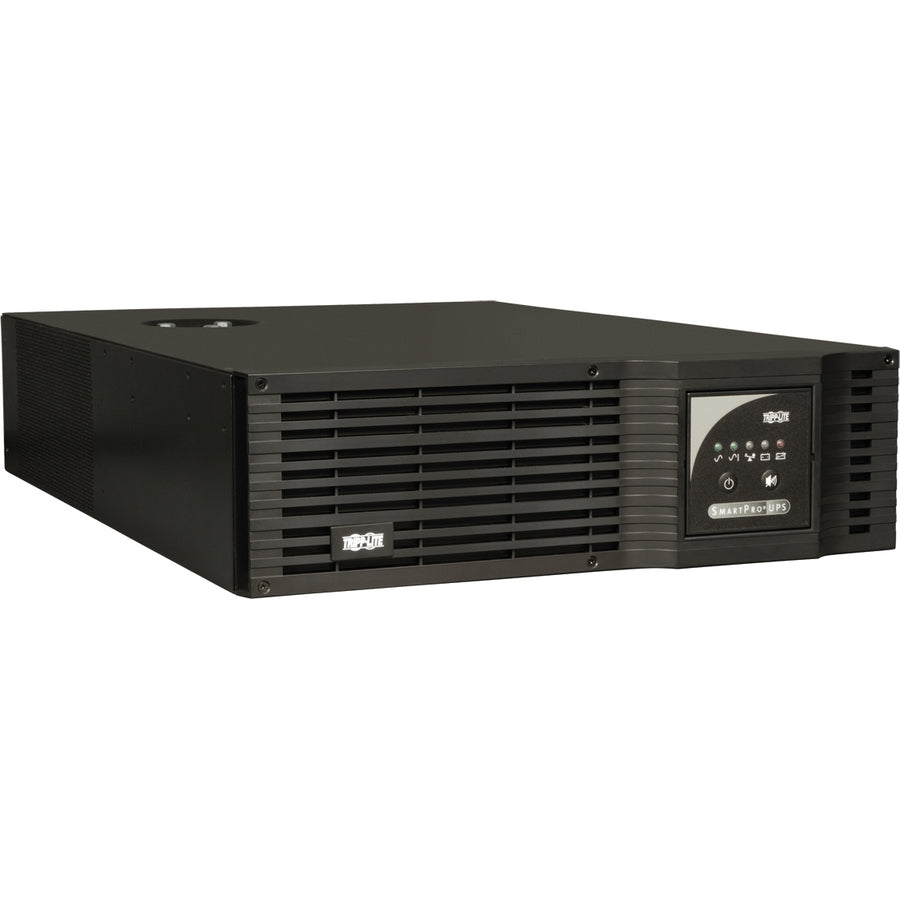

Tripp Lite SmartPro SMX5000XLRT3U 5000 VA / 3750 W Rack Line-Interactive UPS 230 V, Hardwired

Product Features:

Manufacturer:Eaton Corporation

Manufacturer Part Number:SMX5000XLRT3U

Manufacturer Website Address:https://tripplite.eaton.com/

Brand Name:Tripp Lite by Eaton

Product Line:SmartPro

Product Name:SMX5000XLRT3U UPS System

Marketing Information:5000VA line interactive UPS system for server, network and telecommunications equipment. 5kVA UPS with internal batteries installs in only 3 rack spaces with a depth of only 635mm / 25 inches. High 98% line-power efficiency rating reduces energy consumption and BTU heat output. Expandable battery runtime with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs. Uninterruptible Power Supply (UPS) switches to battery-derived AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) offers voltage boost during brownouts and voltage reduction during overvoltage conditions to maintain regulated 230v output over an input range of 170-282V. Supports hardwire input. Includes C19 and C13 output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support communications via USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces at once. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. 3-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rackmount installation accessories included; 2-9USTAND tower kit and 2POSTRMKITHD two post rack mounting accessories available. Field-replaceable, hot-swappable internal batteries and external battery packs.

PRODUCT SPECIFICATIONS
Plug/Connector Type	Hardwired
Receptacle Type	IEC 60320 C19 IEC 60320 C13
Receptacle Detail	3 x IEC 60320 C19 8 x IEC 60320 C13
Dataline Protection	RJ-11
Emergency Power OFF	Yes
Transfer Time	4 ms
Load Capacity (VA)	5 kVA
Load Capacity (Watt)	3.75 kW
Input Voltage	230 V AC
Output Voltage	220 V AC 230 V AC 240 V AC
Network Management	SNMP Manageable
Serial Port	Yes
USB	Yes
Backup/Run Time (Full Load)	8.50 Minute
Backup/Run Time (Half Load)	20 Minute
Typical Battery Recharge Time	4 Hour
Hot Swappable	Yes
Height	5.20" (132.08 mm)
Width	17.50" (444.50 mm)
Depth	25" (635 mm)
Rack Height	3U
Form Factor	Rack/Tower
Weight (Approximate)	143 lb (64863.71 g)
Package Contents	SMX5000XLRT3U UPS System PowerAlert Software and Cabling Mounting hardware for 4 post rackmount installation Warranty information Instruction manual
Additional Information	Switches: Yes, includes 2 front panel-mounted push button switches for system enable, self-test and alarm cancel functions Low voltage transfer to battery power: 170VAC (resets to line power as voltage increases to 179VAC) High voltage transfer to battery power: 282V (resets to line power as voltage decreases to 274VAC) Cold Start: Yes, inverter can be cold started to enable temporary AC output during a power failure TVSS grounding: Includes back panel grounding point with thubscrew for dataline surge suppressors and other network accessories requiring a safe grounding point
Certifications & Standards	CE, GOST, SASO
Software Included	PowerAlert Software
Country of Origin	China
Limited Warranty	2 Year
