| UPC | 0731304401117 |
| 2U Rack-mountable - 3 Hour Recharge - 12 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - 8 x NEMA 5-15R - 8 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SMX750CNC |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Series: | X |

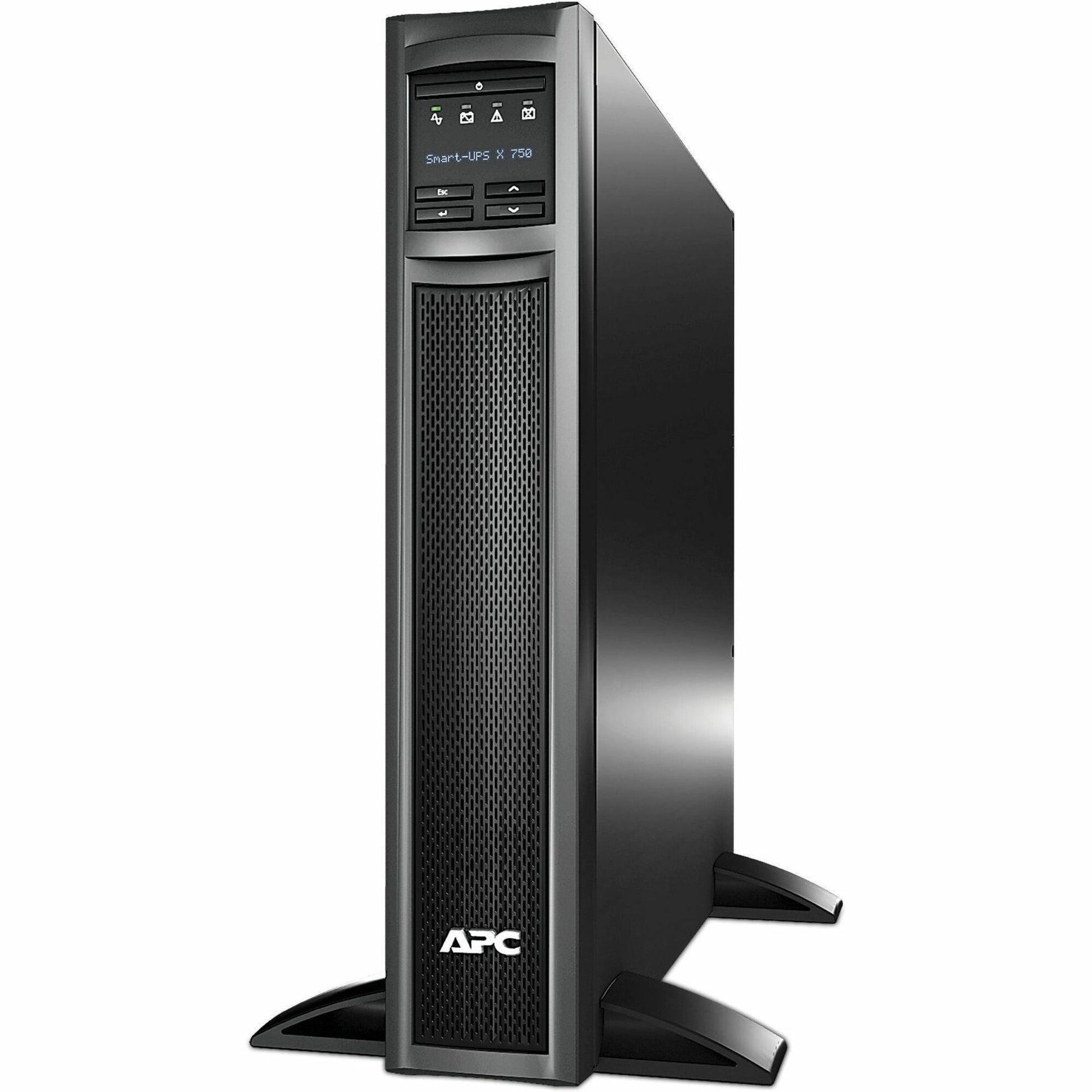

| Product Name: | Smart-UPS X 750VA Tower/Rack 120V with Network Card and SmartConnect |
| Marketing Information: | This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 750VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 1 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15P |
| Receptacle Detail: | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets: | 8 |
| Overload Protection: | Yes |
| Cord Length: | 8 ft |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 750 VA |
| Load Capacity (Watt): | 675 W |
| Input Voltage: | 120 V |
| Input Voltage Range: | 82 V AC - 144 V AC |
| Output Voltage: | 120 V AC |
| Input Frequency: | 63 Hz |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 645 J | Management |
| Network Management: | SmartConnect |
| Alarm: |
|
Interfaces/Ports |
| Serial Port: | Yes |
| Network (RJ-45): | Yes |
| EPO Port: | Yes |
| USB (HID Compliant) Port: | Yes | Battery Information |
| Number of Batteries: | 5 |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 12 Minute |
| Backup/Run Time (Half Load): | 25.60 Minute |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Swappable: | Yes |
| Replaceable Battery: | Yes | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 17.01" (432 mm) |
| Width: | 3.50" (89 mm) |
| Depth: | 19.29" (490 mm) |
| Rack Height: | 2U |
| Form Factor: | Rack-mountable |
| Mounting Preference: | Lower |
| Weight (Approximate): | 22.05 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | cUL Listed|ENERGY STAR V2.0 (USA) |
| Software Included: | Powerchute Business Edition |
| Energy Star: | Yes |
| Green Premium: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX750CNC_ROHS_DECLARATION&p_FileName=SMX750CNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552168888&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552168888&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| Energy Star URL: | https://www.energystar.gov/products/uninterruptible_power_supplies |
| WEEE Statement: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin: | Philippines |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | 3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect |
| Directly Connected Equipment Guarantee: |
|
