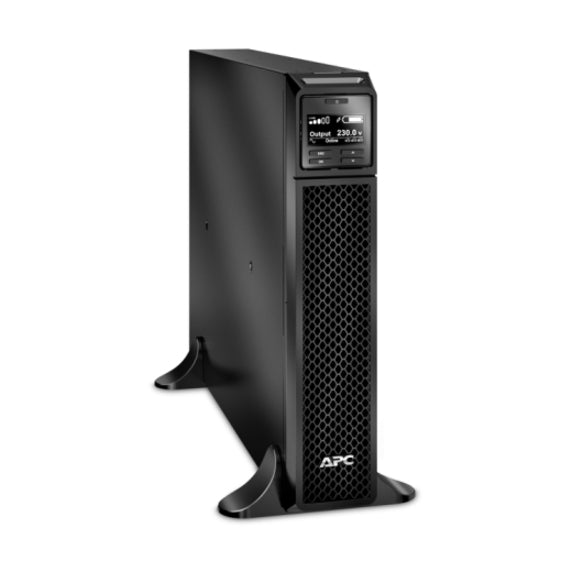

About this UPS
- Brand: APC by Schneider Electric
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: SRT2200XLI
- Form Factor: Tower
- Waveform Type: Sine Wave
- Product Family: Smart-UPS On-Line
- Backup/Run Time (Full Load): 4 Minute
- Load Capacity: 2.20 kVA/1.98 kW
Marketing Information:
A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Number of Battery & Surge Outlets | 22 |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.98 kW |
| Output Voltage | 230 V AC |
| Waveform Type | Sine Wave |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 3.35" (85 mm) |
| Depth | 22.99" (584 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 55.12 lb (25000 g) |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Limited Warranty | 3 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
