| UPC | 0731304301615 |
| Rack-mountable - 3 Hour Recharge - 4 Minute Stand-by - 230 V AC Output - Sine Wave - USB - 12 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SRT5KXLI |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Series: | SRT |

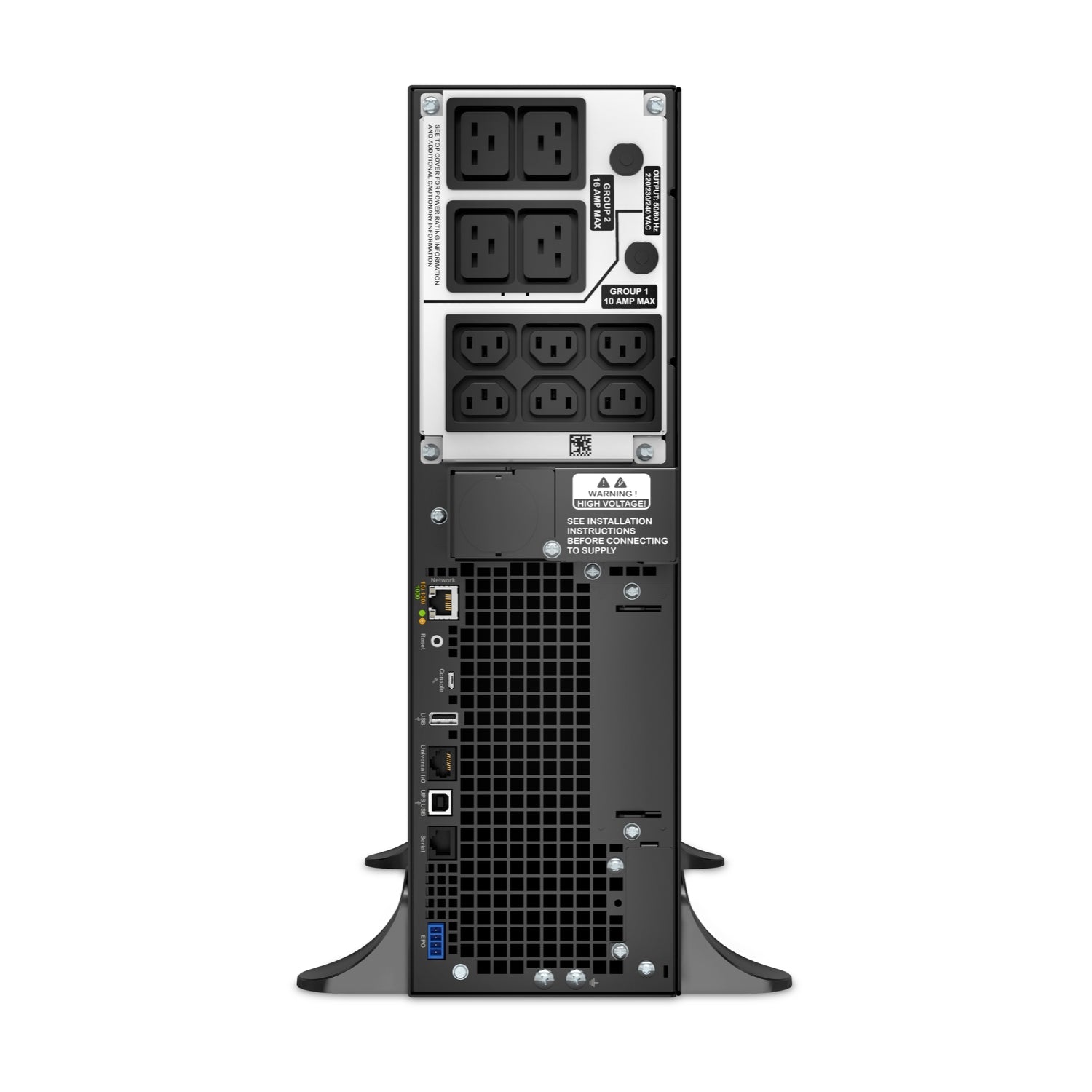

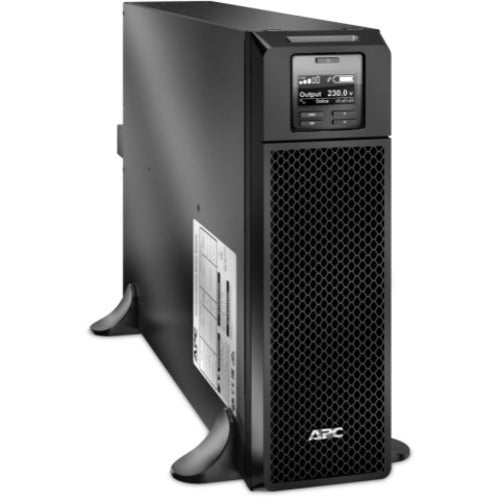

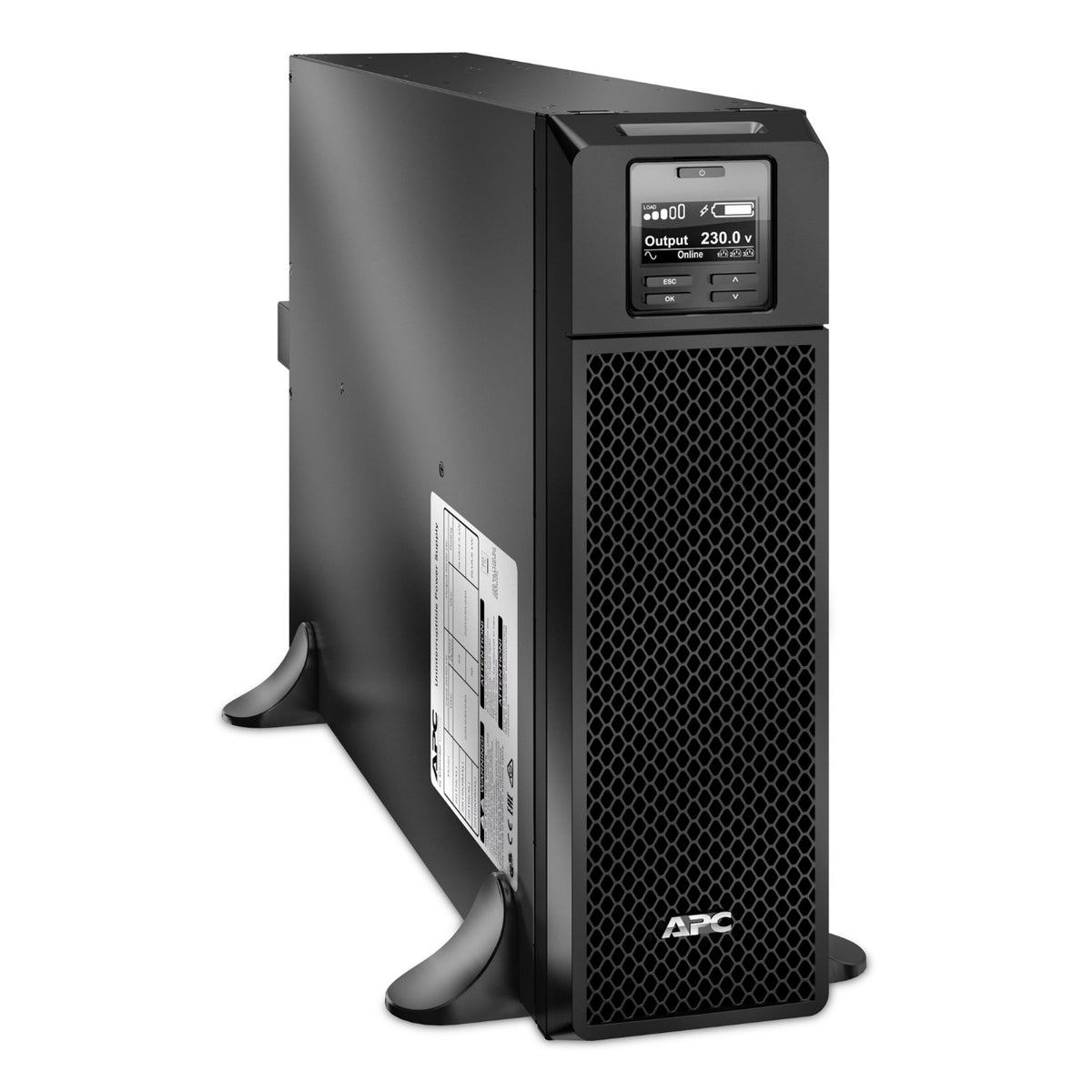

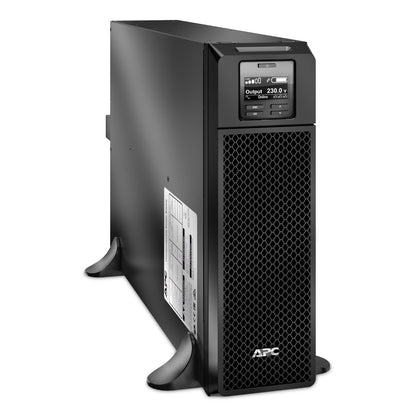

| Product Name: | Smart-UPS SRT 5000VA 230V |
| Marketing Information: |
A versatile UPS developed for the harshest power conditions in the world. Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Number of Battery & Surge Outlets: | 12 |
| Protection Type: |
|
| Bypass Switch: |
|
| Emergency Power OFF: | Yes | Power Description |
| Load Capacity (VA): | 5 kVA |
| Load Capacity (Watt): | 4.50 kW |
| Output Voltage: | 230 V AC |
| Waveform Type: | Sine Wave |
| Circuit Breaker: | Yes | Management |
| Alarm: | Battery Failure | Controls/Indicators |
| Status Indicators: | LED Indicators | Interfaces/Ports |
| Network (RJ-45): | Yes |
| USB: | Yes |
| Total Number of Expansion Slots: | 1 | Battery Information |
| Number of Batteries: | 1 |
| Battery Characteristics: | Maintenance-free, Sealed, Spill-proof |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 4 Minute |
| Backup/Run Time (Half Load): | 12 Minute |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104°F (40°C) |
| Sound Emission (A-Weighted): | 55 dB(A) |
| Thermal Dissipation: | 931 BTU/h | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 17.01" (432 mm) |
| Width: | 5.12" (130 mm) |
| Depth: | 28.31" (719 mm) |
| Form Factor: | Rack-mountable |
| Weight (Approximate): | 54.55 kg | Miscellaneous |
| Package Contents: |
|
| Environmentally Friendly: | Yes | Warranty |
| Limited Warranty: | 3 Year |
Call us if more information required.
