APC

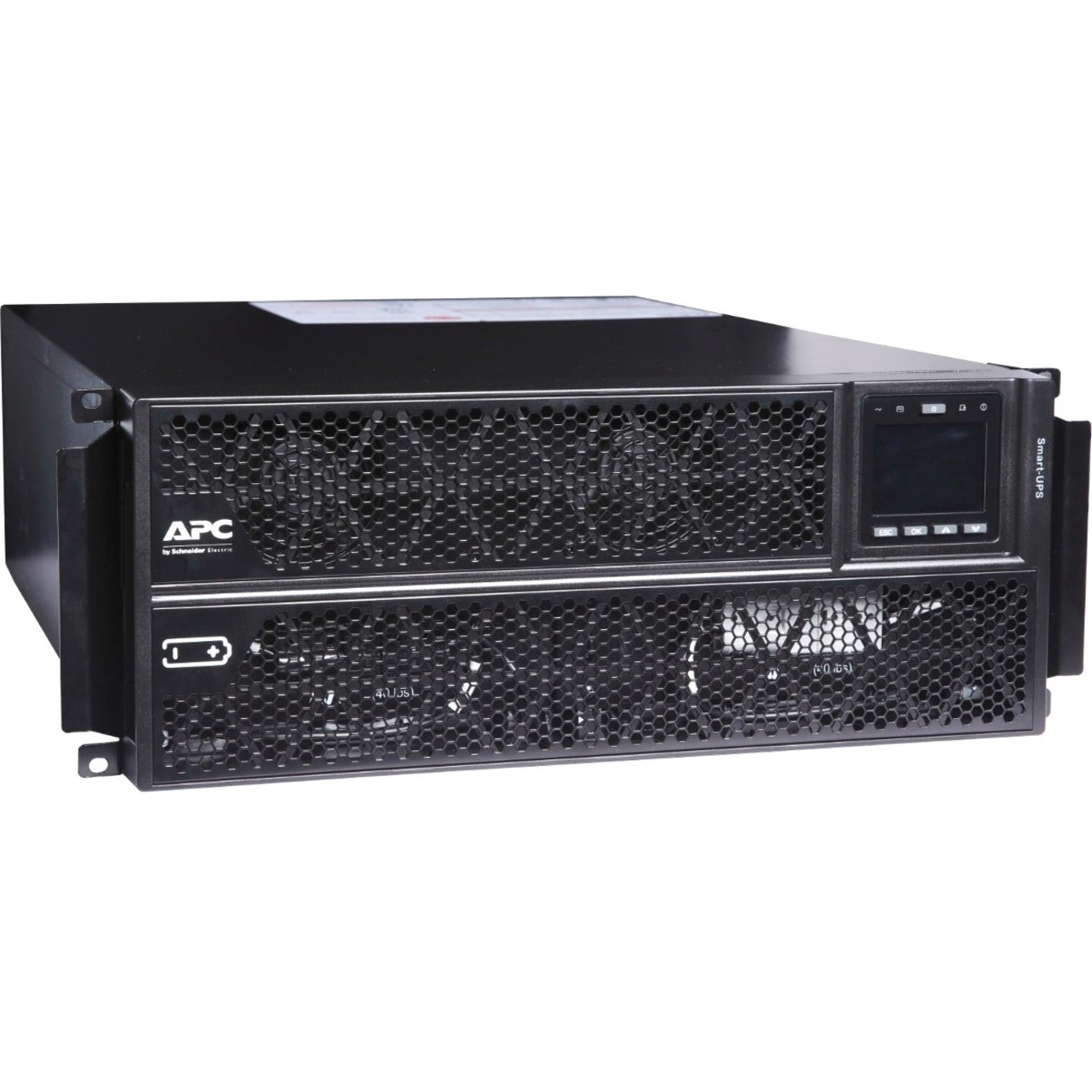

APC by Schneider Electric Smart-UPS On-Line 5kVA Tower/Rack Convertible UPS - Tower/Rack Convertible - 4 Hour Recharge - 230 V AC Input - 200 V AC, 208 V AC, 240 V AC Output - Serial Port - 2 x NEMA L6-30R Receptacle(s) - 2 x Battery/Surge Outlet
APC by Schneider Electric Smart-UPS On-Line 5kVA Tower/Rack Convertible UPS - Tower/Rack Convertible - 4 Hour Recharge - 230 V AC Input - 200 V AC, 208 V AC, 240 V AC Output - Serial Port - 2 x NEMA L6-30R Receptacle(s) - 2 x Battery/Surge Outlet
Regular price
$7,375.00 CAD
Regular price
Sale price
$7,375.00 CAD
Quantity
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS
APC by Schneider Electric Smart-UPS On-Line 5kVA Tower/Rack Convertible UPS
| UPC | 0731304423874 |
| Tower/Rack Convertible - 4 Hour Recharge - 230 V AC Input - 200 V AC, 208 V AC, 240 V AC Output - Serial Port - 2 x NEMA L6-30R Receptacle(s) - 2 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SRTG5KXLT |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS On-Line |
| Product Name: | Smart-UPS On-Line 5kVA Tower/Rack Convertible UPS |
| Marketing Information: | Smart-UPS On-Line RT 5KVA is capable of supporting loads in a flexible rack/tower convertible form. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | NEMA L6-30P |
| Receptacle Type: | NEMA L6-30R |
| Receptacle Detail: | 2 x NEMA L6-30R |
| Number of Battery & Surge Outlets: | 2 |
| Application/Usage: | Business-critical System | Power Description |
| Load Capacity (VA): | 5 kVA |
| Load Capacity (Watt): | 4.75 kW |
| Input Voltage: | 230 V AC |
| Output Voltage: |
|
| Input Frequency: | 70 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 600 J | Management |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: |
LED Status Display:
|
Interfaces/Ports |
| Serial Port: | Yes |
| EPO Port: | Yes |
| USB (HID Compliant) Port: | Yes | Battery Information |
| DC System Voltage: | 96 V DC |
| Number of Batteries: | 2 |
| Battery Chemistry: | Lead Acid |
| Battery Energy: | 3456 kJ |
| Typical Battery Recharge Time: | 4 Hour | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | 5 °F (-15 °C) - 113 °F (45 °C) |
| Maximum Operating Elevation: | 9842.52 ft (3000000 mm) |
| Sound Emission (A-Weighted): | 55 dB(A) |
| Thermal Dissipation: | 1108 BTU/h | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 7" (177.80 mm) |
| Width: | 17.32" (440 mm) |
| Depth: | 24.41" (620 mm) |
| Form Factor: | Tower/Rack Convertible |
| Weight (Approximate): | 51.90 kg | Miscellaneous |
| Package Contents: |
|
| Country of Origin: | Philippines | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
Power
VA Rating
5000VA
Wattage
4750W
Topology
Online Double-Conversion
Waveform
Pure Sine Wave
Input
Input Voltage
240V
Output
Output Voltage
200V
Receptacles
2× NEMA L6-30R
Features
Form Factor
Tower/Rack Convertible
Connectivity
["USB""RS-232 Serial""HTTP/Web Management"]
Extended Runtime Capable
true
Condition
New
Operating Temperature
0 to 40 °C (32 to 104 °F)
Dimensions
178 × 440 × 620 mm (7.00 × 17.32 × 24.41 in)
Weight
51.9kg
Manufacturer Warranty
2 years
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.
Network Cards
APC AP9640 - UPS Network Management Card 3
$523.99
Network Cards
APC AP9641 - UPS Network Management Card 3 with Environmental Monitoring
$820.99
Network Cards
APC AP9643 - UPS Network Management Card 3
$1,047.99
Extended Battery Modules
APC Smart-ups SRT 192V 5/6KVA Battery PACK
$2,231.99
Shipped across Canada
Shipped from our Canadian warehouse. See shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the full manufacturer warranty registered to you on receipt.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile — we'll spec the right UPS within one business hour.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
