Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

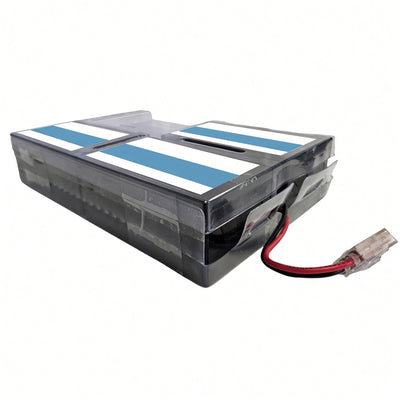

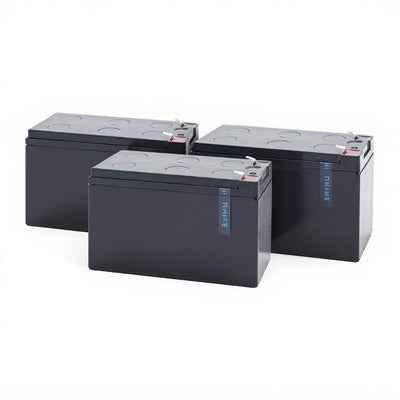

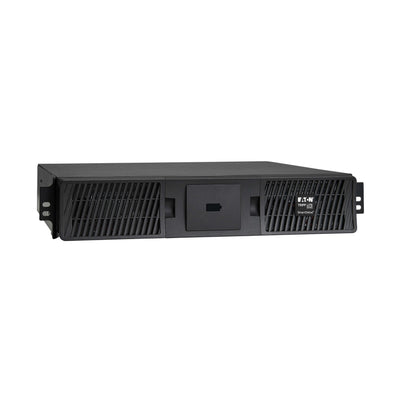

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP36RT, sold separately).

Pre-Installed LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

NEMA Outlets Protect Your Connected Components
Eight 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

Clear LCD Interface Keeps You Informed at a Glance
The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power. The LCD rotates to accommodate both rack-mount and tower installation.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment.

• RJ-11
• RJ-45

• Mission Critical Equipment
• Data Center
• Computer Room
• Network Closet
• Server

• 100 V AC
• 110 V AC
• 115 V AC
• 127 V AC

• UPS StartUp
• Power Failure
• Low Battery
• Overload
• UPS Fault
• Remote Shutdown

7 Front Panel LEDs Indicator:

• AC To DC Conversion
• Battery Mode Operation
• Inverter Mode
• ECO Mode Operation
• Bypass Mode Operation
• AC Output Status

Front Panel LCD Display:

• UPS And Site Power Status And Operating Data
• Configuration Of Voltage
• Frequency
• Operating Mode
• Alarm Function And A Variety Of Additional Options

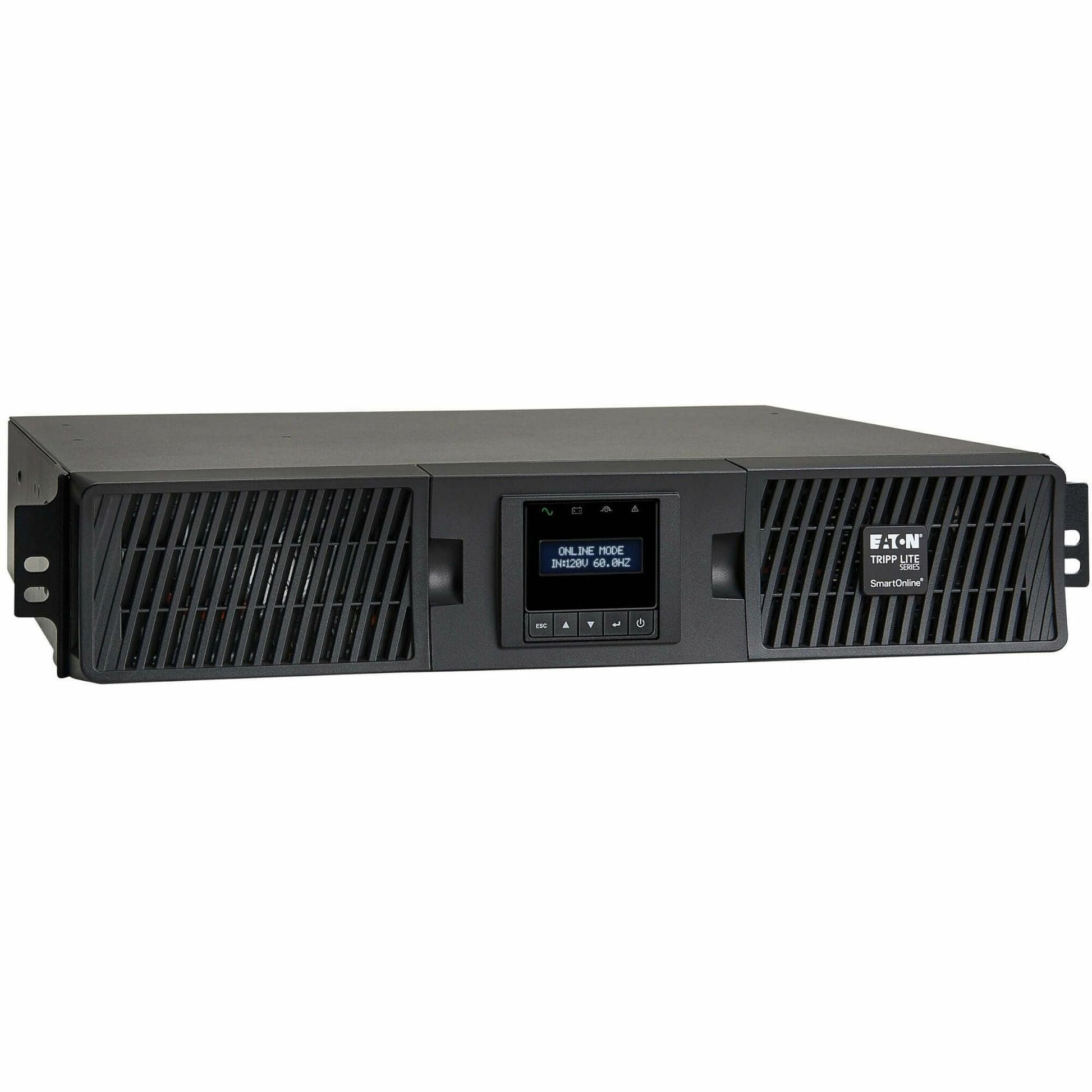

• SmartOnline SU1000RTXLCD2UN 1000VA Rack-mountable UPS
• WEBCARDLX Network Interface Card
• USB Cable
• RS-232 Cable
• EPO Cable
• 4-post Rack-mounting Hardware
• Owner's Manual
