Tripp Lite
Available on order
Ships by freight (over 68 kg). We confirm the delivered price in writing before you pay.
Available on order
Written reply within 1 business day, no obligation.
Supports extended runtime: add battery packs in your quote
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
Questions? 438-881-3363 · Mon to Fri
| UPC | 0037332115935 |
| 10000VA/9000W - 4.3 Minute Full Load | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SU10KRT3UHV |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartOnline |

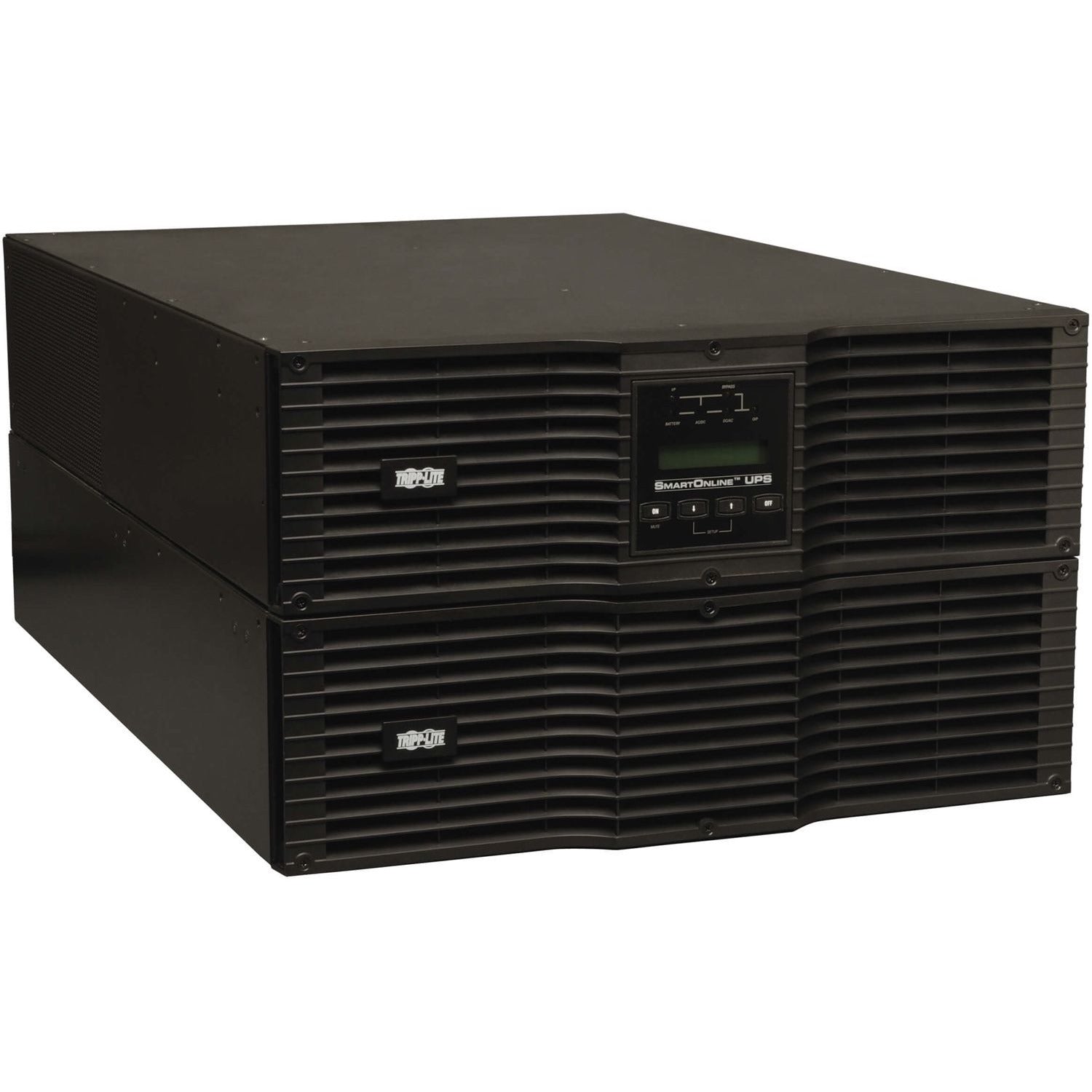

| Product Name: | SmartOnline SU10KRT3UHV UPS |
| Marketing Information: | Tripp Lite SU10KRT3UHV 10,000VA / 10kVA / 9000 watt online, double-conversion UPS system offers complete power protection for critical network applications. This system delivers online, double-conversion UPS protection with zero transfer time, suitable for advanced networking applications. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included detachable PDU with manual bypass switch enables hot-swappable replacement of entire UPS power module with no interruption to connected equipment. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Emergency Power OFF: | Yes |
| Transfer Time: | 0 ns | Power Description |
| Load Capacity (VA): | 10 kVA |
| Load Capacity (Watt): | 9 kW |
| Output Voltage: |
|
| Waveform Type: | Sine Wave | Management |
| Network Management: | SNMP Manageable |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: | 6 LED DISPLAY: line power, bypass, inverter, charger, output AC and battery operation. SELECTABLE LCD DISPLAY: input/output voltage, Hz, battery voltage and charge level and detailed warnings regarding all major UPS functions | Interfaces/Ports |
| Total Number of Expansion Slots: | 1 | Battery Information |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 4.30 Minute |
| Backup/Run Time (Half Load): | 12.50 Minute |
| Battery Life: | 6 Year |
| Typical Battery Recharge Time: | 4 Hour |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) | Physical Characteristics |
| Height: | 31" (787.40 mm) |
| Width: | 26" (660.40 mm) |
| Depth: | 41" (1041.40 mm) |
| Rack Height: | 6U |
| Weight (Approximate): | 148.58 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Country of Origin: | China | Warranty |
| Limited Warranty: | 2 Year |
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
The manufacturer no longer makes the SU10KRT3UHV. These UPS are sold today; each card compares one with the discontinued model.
| Spec | SU10KRT3UHV | Xtreme Power |
|---|---|---|
| Capacity | 10000 VA / 9000 W | 10000 VA / 10000 W |
| Topology | Online Double-Conversion | Online Double-Conversion |
| Form | Rackmount 5U+, 6U | Tower/Rack Convertible, 5U |
| Input plug | Hardwired | Hardwired |
| Outlets | 1 × Hardwire terminal block | 1 × Hardwire terminal block |
| Runtime, half load | 13 min | 15 min |
Differences
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
The manufacturer no longer makes the SU10KRT3UHV. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Only accessories the manufacturer lists for this model.
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
If this unit is too small or too big, here are the closest siblings: same topology, same form-factor family.
