In stockTripp Lite
· SU1500RTXLCD2U
Tripp Lite SU1500RTXLCD2U 1500 VA / 1350 W Rack/Tower Online UPS
- Power
- 1500 VA / 1350 W
- Form
- Rackmount 2U
- Outlets
- 8× NEMA 5-15R
$2,122.99
Tripp Lite
Tripp Lite SmartOnline SU1500RTXL2UA 1500 VA / 1200 W Rack Online UPS
Tripp Lite SmartOnline SU1500RTXL2UA 1500 VA / 1200 W Rack Online UPS
Discontinued by the manufacturerManufacturer’s current model: SU1500RTXLCD2U. This listing is the earlier model.
Regular price
$1,485.00 CAD
Regular price
Sale price
$1,485.00 CAD
Available on order
Shipping calculated at checkout.
Quantity
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
This exact model, refurbished
Refurbished

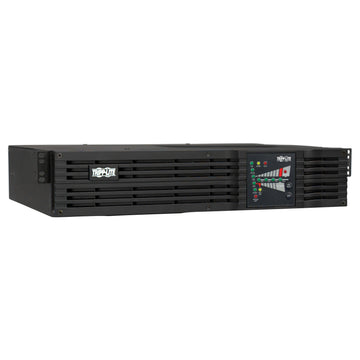

Tripp Lite SmartOnline SU1500RTXL2UA 1500 VA / 1200 W Rack Online UPS, Refurbished
1500 VATripp Lite
$1,485.00
$517.49
Save $967.51 (65%)
Refurbished units are tested and sold with new batteries where required. Availability is limited to the units we currently hold.
About this UPS
The Tripp Lite SU1500RTXL2UA is a 1500VA / 1200W rackmount (2U) online double-conversion UPS. Designed for business-critical power protection, it delivers clean, regulated output to protect servers, network equipment, workstations, and other sensitive electronics from power disturbances.
Specifications
| Output Capacity (VA) | 1500 VA |
| Output Power (Watts) | 1200 W |
| Topology | Online Double Conversion |
| Output Waveform | Pure Sine Wave |
| Output Voltage | 120V |
| Input Plug | NEMA 5-15P |
| Outlets | 6 × NEMA 5-15R |
| Form Factor | Rackmount (2U) |
| Communications | USB, RS-232 Serial, SNMP (via Network Management Card) |
| Weight | 20 kg (44.1 lb) |
| UPC | 037332125972 |
| Manufacturer Part Number | SU1500RTXL2UA |
Technical specifications
Power
VA Rating
1500VA
Wattage
1200W
Topology
Online Double-Conversion
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-15P (standard 15A)
Input Phase
Single-phase
Output
Output Voltage
120V
Receptacles
6× NEMA 5-15R
Features
Form Factor
Rackmount 2U
Rack Units
2U
Connectivity
USBRS-232 SerialSNMP (via Network Management Card)HTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
Yes
Condition
New
Dimensions
89 × 444 × 483 mm (3.50 × 17.50 × 19.00 in)
Weight
20.0kg
Certifications
CSA (Canada)NOM (Mexico)UL 1778
Manufacturer Warranty
2 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (600 W)
14 min
Full load (1200 W)
5 min
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Available now
The manufacturer no longer makes the SU1500RTXL2UA. These UPS are sold today; each card compares one with the discontinued model.
-
Compared with SU1500RTXL2UA Spec SU1500RTXL2UA Delta Capacity 1500 VA / 1200 W 1500 VA / 1350 W Topology Online Double-Conversion Online Double-Conversion Form Rackmount 2U, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 14 min 10 min Same class on every point compared.
$2,073.99 -
Xtreme Power Conversion
Xtreme Power P91-1500 1500 VA / 1450 W Online UPS, 120 V
Compared with SU1500RTXL2UA Spec SU1500RTXL2UA Xtreme Power Capacity 1500 VA / 1200 W 1500 VA / 1450 W Topology Online Double-Conversion Online Double-Conversion Form Rackmount 2U, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 14 min 10 min Differences
- Larger unit: 1450 W instead of 1200 W
$1,812.76 -
Compared with SU1500RTXL2UA Spec SU1500RTXL2UA 360PQ Capacity 1500 VA / 1200 W 1500 VA / 1500 W Topology Online Double-Conversion Online Double-Conversion Form Rackmount 2U, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 14 min 10 min Differences
- Larger unit: 1500 W instead of 1200 W
$1,459.98
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Discontinued by the manufacturer
Available now
The manufacturer no longer makes the SU1500RTXL2UA. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Works with this UPS
Only accessories the manufacturer lists for this model.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Tripp Lite · Compatible replacement
Battery for Tripp Lite SU1500RTXL2UA UPS
$195.49
Shop →
Tripp Lite · Compatible replacement
Tripp Lite RBC94-2U Compatible Replacement Battery Kit (48V, 4 x 12V 9Ah)
$171.99
Shop →
Tripp Lite · Compatible replacement
Tripp Lite SU1500RTXL2UA Replacement Battery Set
$175.94
Shop →
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
Other models in the same range
If this unit is too small or too big, here are the closest siblings: same topology, same form-factor family.
In stock
