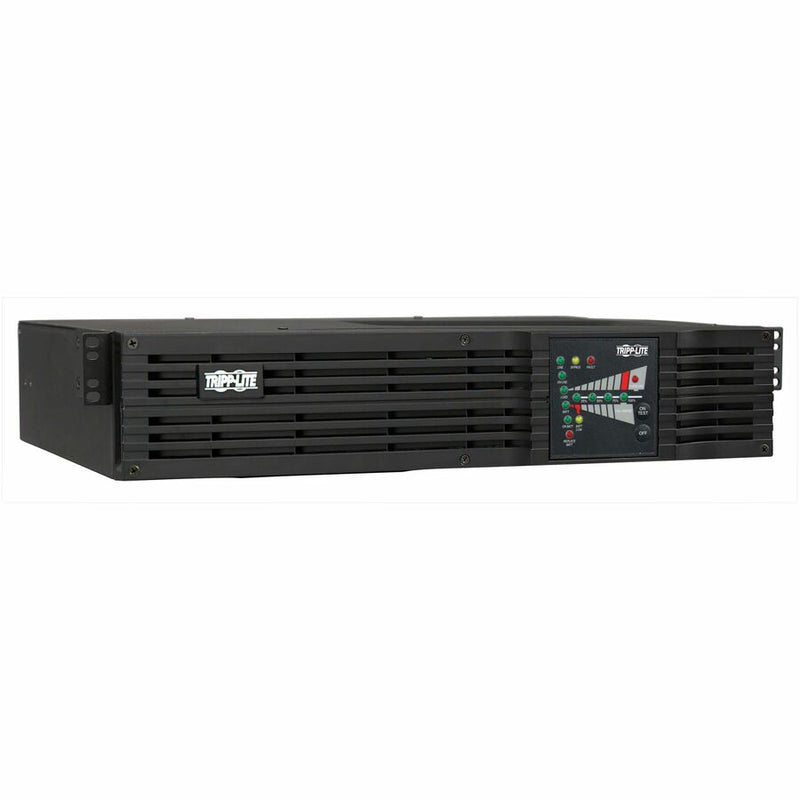

Tripp Lite by Eaton SU1500RTXL2UN UPS with Pre-installed SNMPWEBCARD - SU1500RTXL2UN - Double Conversion Online UPS, 120 V AC, Rack/Tower, Sine Wave,Pure Sine Wave, 2U, 120 V AC, NEMA 5-15P, SmartOnline, 14 Minute, 5 Minute, 1.50 kVA/1.20 kW
Tripp Lite by Eaton SU1500RTXL2UN UPS with Pre-installed SNMPWEBCARD - SU1500RTXL2UN - Double Conversion Online UPS, 120 V AC, Rack/Tower, Sine Wave,Pure Sine Wave, 2U, 120 V AC, NEMA 5-15P, SmartOnline, 14 Minute, 5 Minute, 1.50 kVA/1.20 kW
Regular price
$2,096.00 CAD
Regular price
Sale price
$2,096.00 CAD
Quantity
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS
Product Features:
- Brand: Tripp Lite by Eaton
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: SU1500RTXL2UN
- Input Voltage: 120 V AC
- Form Factor: Rack/Tower
- Waveform Type: Sine Wave,Pure Sine Wave
- Rack Height: 2U
- Plug/Connector Type: NEMA 5-15P
- Product Family: SmartOnline
- Backup/Run Time (Half Load): 14 Minute
- Backup/Run Time (Full Load): 5 Minute
- Load Capacity: 1.50 kVA/1.20 kW
Marketing Information: Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. High 95% efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert UPS monitoring software is available via free download. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation and output power availability. Audible alarm with push-button momentary alarm-cancel. Programmable self-test. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs.
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Dataline Protection |
|
| Protection Type |
|
| Bypass Switch | Automatic |
| Emergency Power OFF | Yes |
| Cord Length | 10 ft (3.05 m) |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.20 kW |
| Input Voltage | 120 V AC |
| Input Current | 12 A |
| Output Voltage | 120 V AC |
| Waveform Type |
|
| Surge Energy Rating | 600 J |
| Circuit Breaker | Yes |
| Network Management | SNMP Manageable |
| Alarm |
|
| Status Indicators |
|
| Serial Port | Yes |
| USB | Yes |
| Total Number of Expansion Slots | 1 |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Typical Battery Recharge Time | 6 Hour |
| Hot Swappable | Yes |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Thermal Dissipation | 609.70 BTU/h |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 19" (482.60 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 44.09 lb (20000 g) |
| Package Contents |
|
| Certifications & Standards |
|
| Software Included | Poweralert Software |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
Technical specifications
Power
VA Rating
1500VA
Wattage
1200W
Topology
Online Double-Conversion
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-15P (standard 15A)
Output
Output Voltage
120V
Receptacles
6× NEMA 5-15R
Features
Form Factor
Tower/Rack Convertible
Connectivity
["USB""RS-232 Serial""SNMP (via Network Management Card)""HTTP/Web Management"]
Extended Runtime Capable
true
Condition
New
Operating Temperature
0 to 40 °C (32 to 104 °F)
Dimensions
89 × 444 × 483 mm (3.50 × 17.50 × 19.00 in)
Weight
20.0kg
Manufacturer Warranty
2 years
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (600 W)
12.0 min
Full load (1200 W)
5.0 min
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
W
Estimated runtime
—min
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.
Shipped across Canada
Shipped from our Canadian warehouse. See shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the full manufacturer warranty registered to you on receipt.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile — we'll spec the right UPS within one business hour.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Bookmark this page
before you need it.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
