Tripp Lite

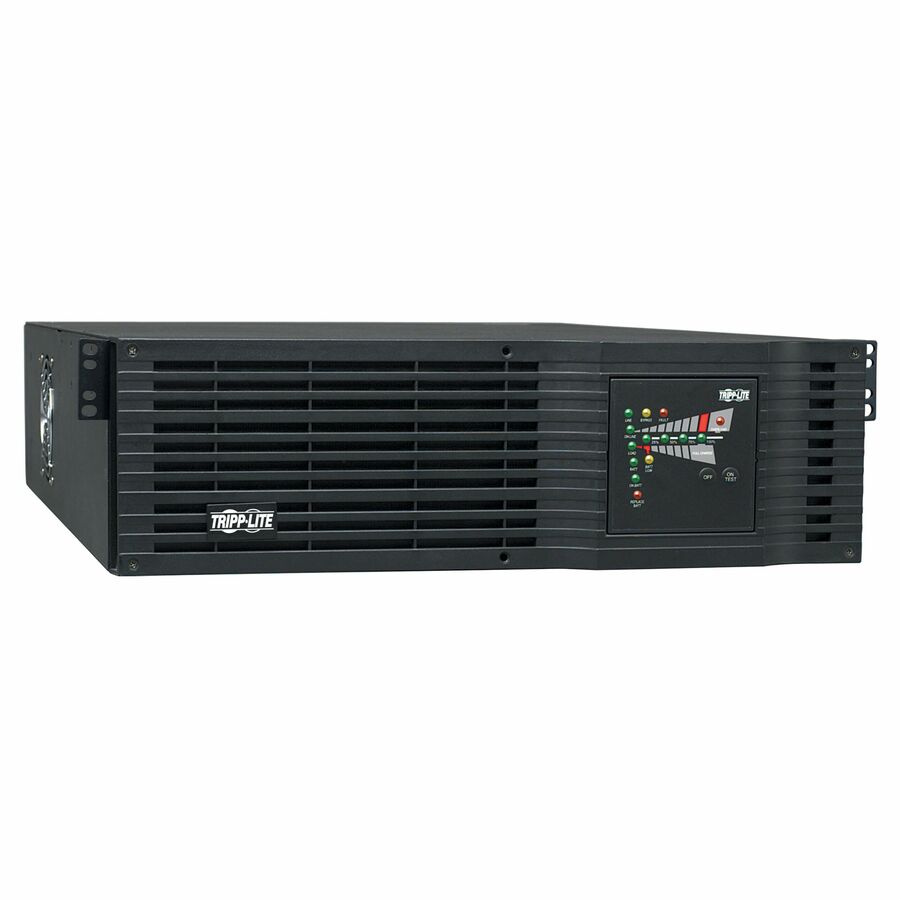

Tripp Lite SmartOnline SU3000RTXL3U UPS - SU3000RTXL3U - Double Conversion Online UPS, 110 V AC,120 V AC, Sine Wave, 3U, 110 V AC,120 V AC, NEMA L5-30P, SmartOnline, 14 Minute, 5 Minute, 3 kVA/2.40 kW
Tripp Lite SmartOnline SU3000RTXL3U UPS - SU3000RTXL3U - Double Conversion Online UPS, 110 V AC,120 V AC, Sine Wave, 3U, 110 V AC,120 V AC, NEMA L5-30P, SmartOnline, 14 Minute, 5 Minute, 3 kVA/2.40 kW
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: SU3000RTXL3U
- Input Voltage: 110 V AC,120 V AC
- Waveform Type: Sine Wave
- Rack Height: 3U
- Plug/Connector Type: NEMA L5-30P
- Product Family: SmartOnline
- Backup/Run Time (Half Load): 14 Minute
- Backup/Run Time (Full Load): 5 Minute
- Load Capacity: 3 kVA/2.40 kW
Marketing Information:
3000VA on-line, double-conversion UPS system for critical server, network and telecommunications equipment. 3U rackmount form factor with an installed depth of 26 inches. Expandable battery runtime with optional BP72V15-2U (limit 1), BP72V28RT-3U (multi-pack compatible) and BP72V18-2US (multi-pack compatible) external battery packs. Full time sine wave 110 or 120V output with +/-2% voltage regulation. Online, double-conversion Uninterruptible Power Supply (UPS) actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150V. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. NEMA L5-30P input plug. NEMA 5-15, NEMA 5-15/20R and NEMA L5-30R output receptacles. Network-grade AC surge and noise suppression. Zero transfer time between AC and battery operation. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated two-bank PDU switching supports load shedding and remote reboot of connected equipment. 3-stage metered current monitoring and battery charge status LEDs. LED display panel easily rotates for viewing in rackmount or tower configurations. Dataline surge suppression for dialup, DSL or network Ethernet connection. Utility power and voltage regulation LEDs. Audible alarm. Self-test. Fault-tolerant auto-bypass mode. 4-post rackmount accessories included; 2-9USTAND tower kit and 2POSTRMKITHD 2-post rackmount accessories available. Field-replaceable, hot-swappable internal batteries and external battery packs. Attractive all-black color scheme. $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Emergency Power OFF | Optional |
| Cord Length | 10 ft |
| Transfer Time | 0 ns |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.40 kW |
| Input Voltage |
|
| Output Voltage |
|
| Waveform Type | Sine Wave |
| Network Management | SNMP Manageable |
| Alarm |
|
| Status Indicators | 6 LED STATUS DISPLAY: line power (green), online (green), bypass (yellow), on battery (green), overload (red), battery low (yellow) 4 LED LOAD / BATTERY LEVEL DISPLAY (100%, 75%, 50%, 25%) |
| Total Number of Expansion Slots | 1 |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 6 Hour |
| Hot Swappable | Yes |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Height | 17.80" (452.12 mm) |
| Width | 5.20" (132.08 mm) |
| Depth | 26" (660.40 mm) |
| Rack Height | 3U |
| Weight (Approximate) | 33.48 kg |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards | UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications |
| Recycled | No |
| Country of Origin | China |
| Limited Warranty | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.

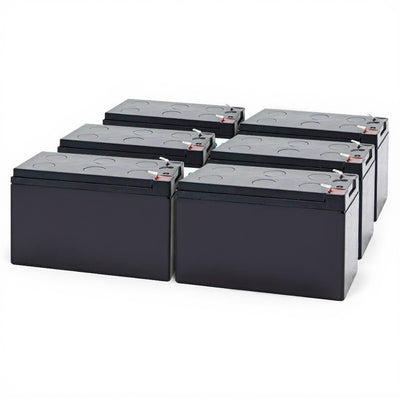

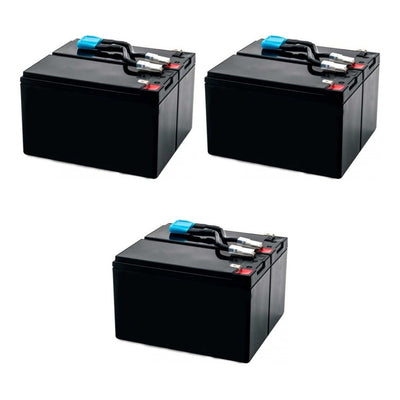

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
