| UPC | 0037332169426 |
| 3U Rack-mountable - 3 Hour Recharge - 4 Minute Stand-by - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 127 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 127 V AC Output - Serial Port - USB - 4 x NEMA 5-15/20R, 4 x NEMA L5-30R, 1 x NEMA 5-15R - SNMP Manageable | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SU3000RTXLCD3U |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartOnline |
| Product Model: | SU3000RTXLCD3U |

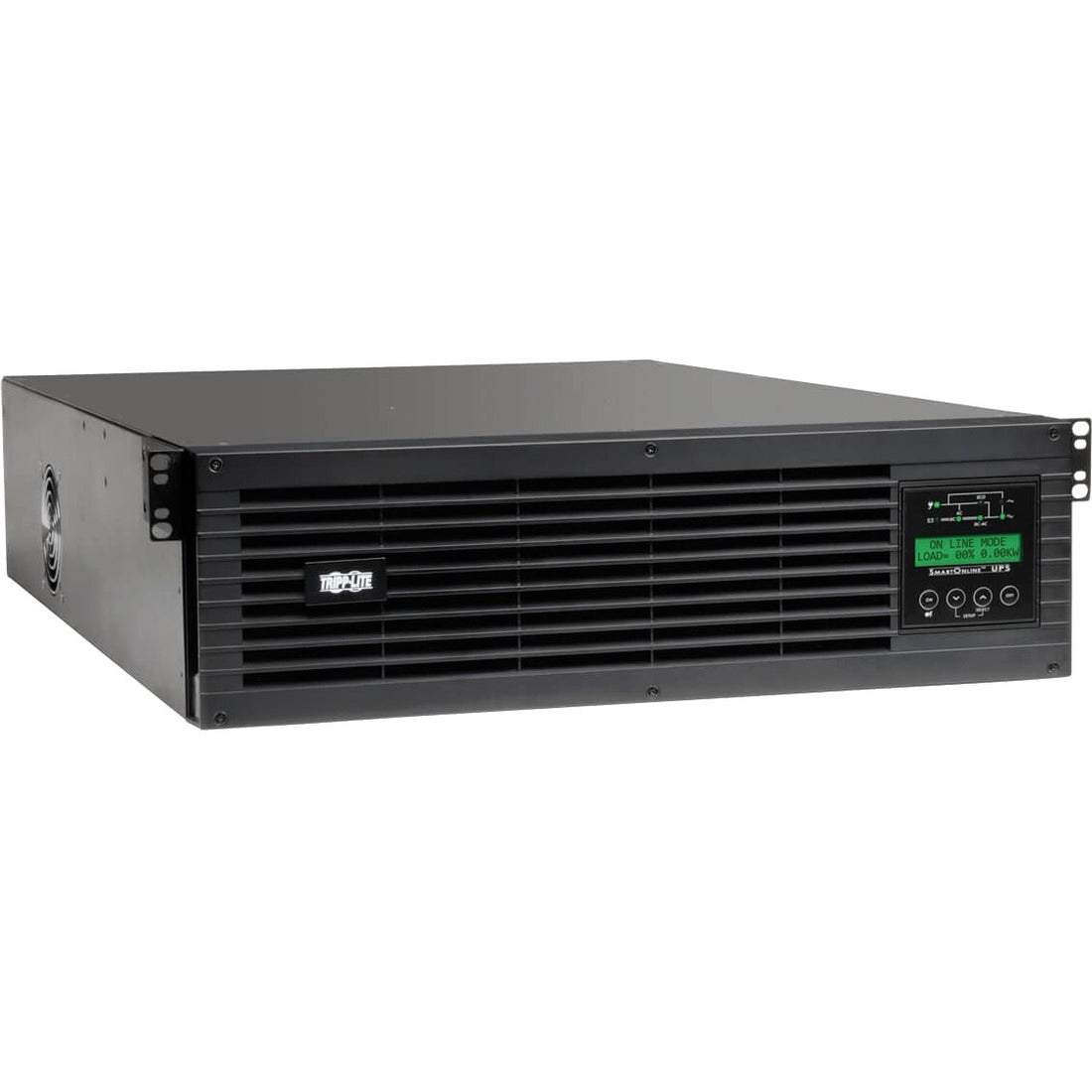

| Product Name: | SU3000RTXLCD3U UPS System |
| Marketing Information: | Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) with Transformerless, IGBT technology maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and slot for network management card options. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert UPS monitoring software is available via free download. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Battery independent restart. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | NEMA L5-30P |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Bypass Switch: | Automatic |
| Emergency Power OFF: | Yes |
| Transfer Time: | 0 ns | Power Description |
| Load Capacity (VA): | 3 kVA |
| Load Capacity (Watt): | 2.70 kW |
| Input Voltage: |
|
| Output Voltage: |
|
Management |
| Network Management: | SNMP Manageable | Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes | Battery Information |
| Backup/Run Time (Full Load): | 4 Minute |
| Backup/Run Time (Half Load): | 11 Minute |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 5.20" (132.08 mm) |
| Width: | 17.50" (444.50 mm) |
| Depth: | 26" (660.40 mm) |
| Rack Height: | 3U |
| Form Factor: | Rack-mountable |
| Weight (Approximate): | 33.57 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: |
|
| Software Included: | PowerAlert Software |
| Energy Star: | Yes |
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
