In stockTripp Lite
· SU5000RTF

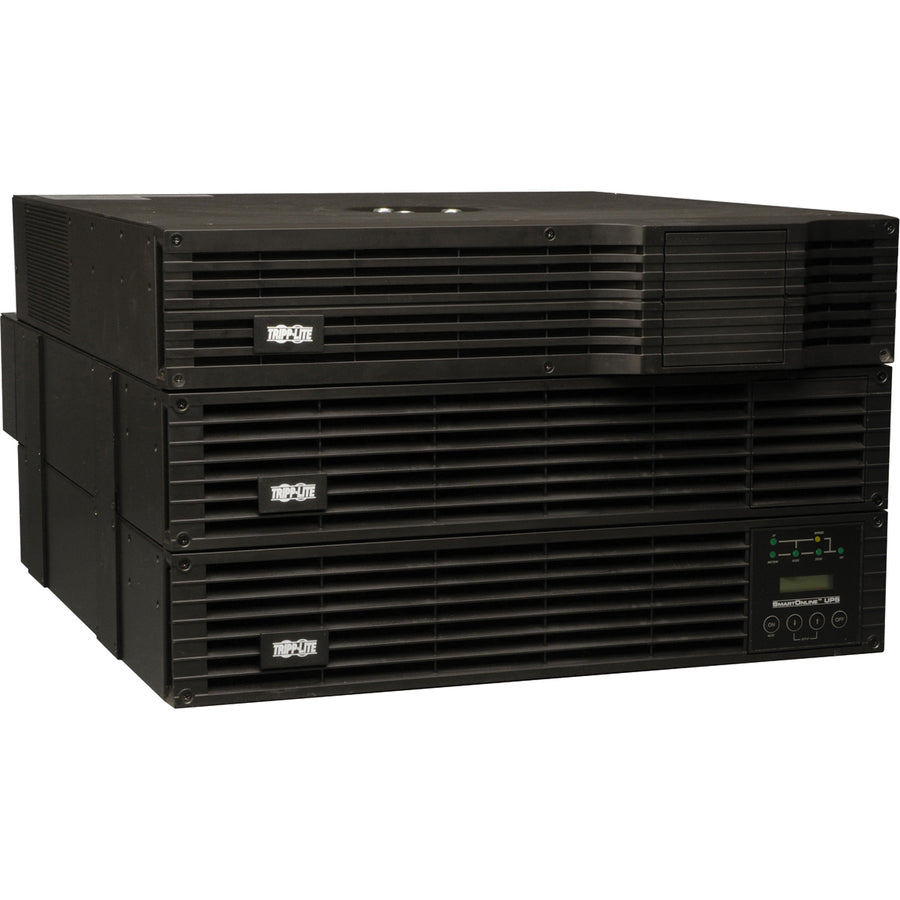

Tripp Lite SU5000RTF 5000 VA / 4500 W Rack/Tower Online UPS 6U
- Power
- 5000 VA / 4500 W
- Form
- Tower/Rack Convertible
- Outlets
- 18× NEMA 5-20R, 2× NEMA L6-20R, 1× NEMA L6-30R, 1× Hardwire terminal block
$8,064.99
Tripp Lite
Tripp Lite SmartOnline SU5000RT4UTF 5000 VA / 4500 W Rack Online UPS
Tripp Lite SmartOnline SU5000RT4UTF 5000 VA / 4500 W Rack Online UPS
Discontinued by the manufacturerManufacturer’s current model: SU5000RTF. This listing is the earlier model.
Regular price
$6,895.00 CAD
Regular price
Sale price
$6,895.00 CAD
Available on order
Shipping calculated at checkout.
Quantity
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
About this UPS
Product Features:
- Brand: Tripp Lite
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: SU5000RT4UTF
- Input Voltage: 208 V AC
- Form Factor: Rack/Tower
- Plug/Connector Type: NEMA L6-30P
- Product Family: SmartOnline E
- Backup/Run Time (Half Load): 11 Minute
- Backup/Run Time (Full Load): 3.50 Minute
- Load Capacity: 5 kVA
Marketing Information:
Tripp Lite SU5000RT4UTF 5000VA / 5kVA / 4500 watt on-line, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 6U rack/tower configuration. Maintains full-time sine wave output within 2% of 208 and 120V nominal at 60Hz during brownouts as low 100V and overvoltages as high as 300V. Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS functions. L6-30P input, plus 2 L6-30R, 2 L6-20R and 12 5-15/20R outlets.
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Load Capacity | 5 kVA |
| Input Voltage | 208 V AC |
| Output Voltage |
|
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Network Management | SNMP Manageable |
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Typical Battery Recharge Time | 6 Hour |
| Form Factor | Rack/Tower |
| Rack Height | 6U |
| Height | 6.85" (173.99 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 21" (533.40 mm) |
| Weight (Approximate) | 51.53 kg |
| Package Contents |
|
| Software Included | PowerAlert Software |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Limited Warranty | 2 Year |
Technical specifications
Power
VA Rating
5000VA
Wattage
4500W
Topology
Online Double-Conversion
Waveform
Pure Sine Wave
Input
Input Voltage
208V
Input Plug
NEMA L6-30P (240V 30A)
Input Phase
Single-phase
Output
Output Voltage
120V
Receptacles
12× NEMA 5-15/20R2× NEMA L6-20R2× NEMA L6-30R
Features
Form Factor
Rackmount 5U+
Rack Units
6U
Connectivity
USBRS-232 SerialSNMP (via Network Management Card)HTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
Yes
Condition
New
Dimensions
255 × 444 × 527 mm (10.05 × 17.50 × 20.75 in)
Weight
51.53kg
Certifications
IEC 61000CSA (Canada)UL 1778
Manufacturer Warranty
2 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (2250 W)
11 min
Full load (4500 W)
3.5 min
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Available now
The manufacturer no longer makes the SU5000RT4UTF. These UPS are sold today; each card compares one with the discontinued model.
-
Xtreme Power Conversion
Xtreme Power P91-5KTB 5000 VA / 5000 W Online UPS, 208/230 V
Compared with SU5000RT4UTF Spec SU5000RT4UTF Xtreme Power Capacity 5000 VA / 4500 W 5000 VA / 5000 W Topology Online Double-Conversion Online Double-Conversion Form Rackmount 5U+, 6U Tower/Rack Convertible, 6U Input plug NEMA L6-30P NEMA L6-30P Outlets 12 × NEMA 5-15/20R, 2 × NEMA L6-20R, 2 × NEMA L6-30R 2 × NEMA L6-20R, 2 × NEMA L6-30R, 12 × NEMA 5-15/20R Runtime, half load 11 min Not stated Differences
- Bundle: UPS module, 2U battery pack, bypass module, transformer
$9,658.71 Request a freight quote -
Compared with SU5000RT4UTF Spec SU5000RT4UTF Delta Capacity 5000 VA / 4500 W 5000 VA / 4500 W Topology Online Double-Conversion Online Double-Conversion Form Rackmount 5U+, 6U Tower/Rack Convertible, 4U Input plug NEMA L6-30P NEMA L6-30P Outlets 12 × NEMA 5-15/20R, 2 × NEMA L6-20R, 2 × NEMA L6-30R 2 × NEMA L6-20R, 2 × NEMA L6-30R, 1 × NEMA L6-30R (4 on battery) Runtime, half load 11 min Not stated Differences
- 4 battery-backed outlets instead of 16
- No 5-15R outlet
- No 5-20R outlet
$7,199.99
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Discontinued by the manufacturer
Available now
The manufacturer no longer makes the SU5000RT4UTF. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Works with this UPS
Only accessories the manufacturer lists for this model.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.

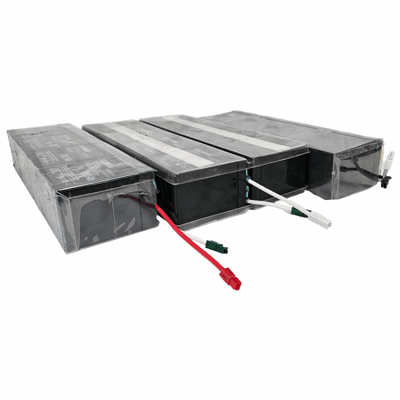

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
