Available on orderTripp Lite
· SU6000RTMB
Tripp Lite SU6000RTMB 6000 VA / 5400 W Rack/Tower Online UPS
- Power
- 6000 VA / 5400 W
- Form
- Tower/Rack Convertible
- Outlets
- 2× NEMA L6-20R, 2× NEMA L6-30R, 1× Hardwire terminal block
$8,005.99
Tripp Lite

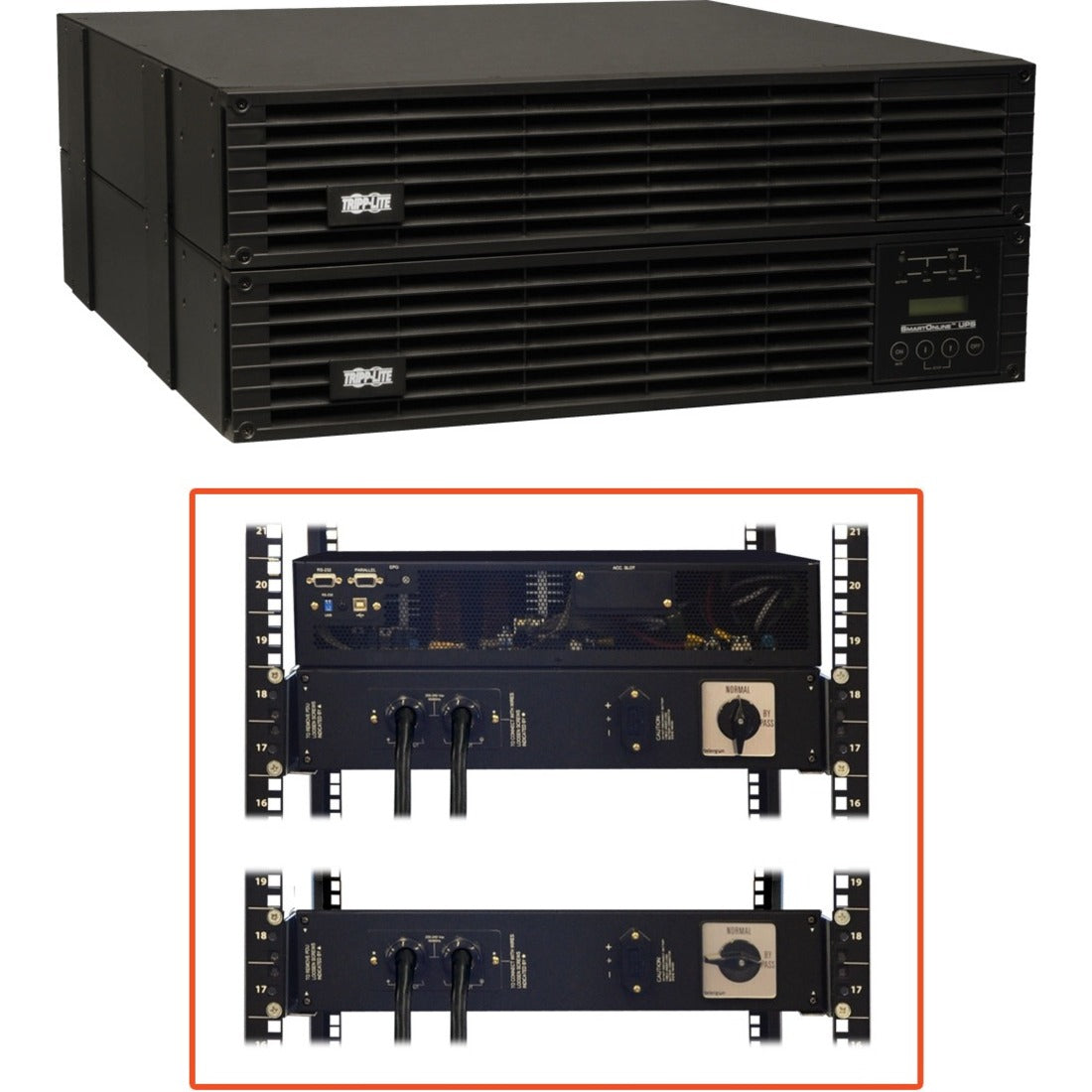

Tripp Lite SmartOnline EZ SU6000RT4UHVHW 6000 VA / 5400 W Rack/Tower Online UPS
Tripp Lite SmartOnline EZ SU6000RT4UHVHW 6000 VA / 5400 W Rack/Tower Online UPS
Discontinued by the manufacturerManufacturer’s current model: SU6000RTMB. This listing is the earlier model.
Regular price
$6,335.99 CAD
Regular price
Sale price
$6,335.99 CAD
Available on order
Shipping calculated at checkout.
Quantity
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
About this UPS
Product Features:
- Brand: Tripp Lite by Eaton
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: SU6000RT4UHVHW
- Input Voltage: 220 V AC
- Form Factor: Rack/Tower
- Rack Height: 4U
- Plug/Connector Type: Hardwired
- Product Family: SmartOnline EZ
- Backup/Run Time (Half Load): 8.50 Minute
- Backup/Run Time (Full Load): 2 Minute
- Load Capacity: 6 kVA/5.40 kW
Marketing Information:
Featuring true on-line operation with pure sine wave output, zero transfer time to battery and complete UPS replacement capability with no downtime, the SU6000RT4UHVHW provides the highest level of protection available for mission-critical equipment from power outages, voltage fluctuations and transient surges. It converts incoming AC power to DC, and re-converts it back to filtered AC output with a pure sine wave, isolating connected components from all power problems in high-voltage environments. The SU6000RT4UHVHW has a 6kVA/5400W capacity and hardwire output. An LCD display with LED indicators enables IT personnel to operating modes and conditions. The SU6000RT4UHVHW features a USB port and a DB9 port that, when used with Tripp Lite's included PowerAlert software, provide comprehensive network power monitoring and control. An optional SNMPWEBCARD accessory can enable the UPS to operate as an IP managed device.
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| Bypass Switch |
|
| Emergency Power OFF | Yes |
| Transfer Time | 0 ns |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 5.40 kW |
| Input Voltage | 220 V AC |
| Input Current | 31.90 A |
| Output Voltage |
|
| Network Management | SNMP Manageable |
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 8.50 Minute |
| Typical Battery Recharge Time | 6 Hour |
| Hot Swappable | Yes |
| Height | 6.85" (173.99 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 20.70" (525.78 mm) |
| Rack Height | 4U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 116.20 lb (52707.43 g) |
| Package Contents |
|
| Certifications & Standards |
|
| Software Included | PowerAlert Software Suite |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
Technical specifications
Power
VA Rating
6000VA
Wattage
5400W
Topology
Online Double-Conversion
Waveform
Pure Sine Wave
Input
Input Voltage
240V
Input Plug
Hardwired
Input Phase
Single-phase
Output
Output Voltage
240V
Receptacles
1× Hardwire terminal block
Features
Form Factor
Tower/Rack Convertible
Rack Units
4U
Connectivity
USBRS-232 SerialSNMP (via Network Management Card)HTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
Yes
Condition
New
Dimensions
174 × 444 × 526 mm (6.85 × 17.50 × 20.70 in)
Weight
52.71kg
Certifications
IEC 61000CSA (Canada)UL 1778
Manufacturer Warranty
2 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (2700 W)
8.5 min
Full load (5400 W)
2 min
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Available now
The manufacturer no longer makes the SU6000RT4UHVHW. These UPS are sold today; each card compares one with the discontinued model.
-
Xtreme Power Conversion
Xtreme Power P91-6KB 6000 VA / 6000 W Online UPS, 208/230 V
Compared with SU6000RT4UHVHW Spec SU6000RT4UHVHW Xtreme Power Capacity 6000 VA / 5400 W 6000 VA / 6000 W Topology Online Double-Conversion Online Double-Conversion Form Tower/Rack Convertible, 4U Tower/Rack Convertible, 4U Input plug Hardwired Hardwired Outlets 1 × Hardwire terminal block 1 × Hardwire terminal block Runtime, half load 9 min 15 min Differences
- Two pieces: UPS module plus 2U battery pack
$6,562.32 Request a freight quote
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Discontinued by the manufacturer
Available now
The manufacturer no longer makes the SU6000RT4UHVHW. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Works with this UPS
Only accessories the manufacturer lists for this model.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.

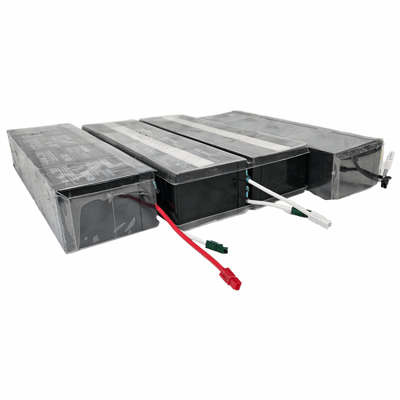

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
Other models in the same range
If this unit is too small or too big, here are the closest siblings: same topology, same form-factor family.
