About this UPS

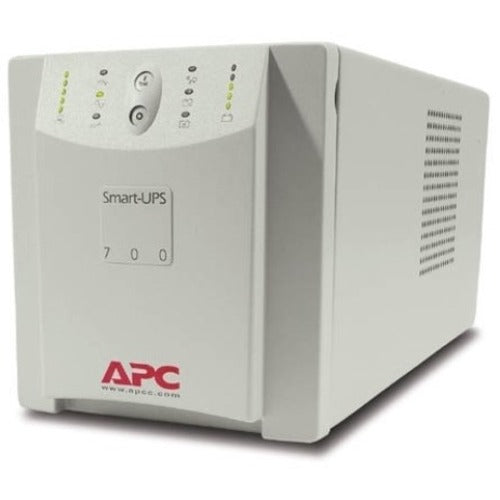

APC by Schneider Electric Smart-UPS 700VA
| UPC | 0731304015178 |
| Tower - 3 Hour Recharge - 12.50 Minute Stand-by - 110 V AC Input - 120 V AC Output - Sine Wave - Serial Port - 6 x NEMA 5-15R | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SU700X167 |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Name: | Smart-UPS 700VA |
| Marketing Information: | Performance power protection for servers and networks APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 6 x NEMA 5-15R |
| Emergency Power OFF: | Optional |
| Cord Length: | 6 ft | Power Description |
| Load Capacity (VA): | 700 VA |
| Input Voltage: | 110 V AC |
| Output Voltage: | 120 V AC |
| Power Consumption: | 450 W |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 480 J | Management |
| Alarm: |
|
| Battery Management: | Intelligent Battery Management | Controls/Indicators |
| Status Indicators: | LED status display with load and battery bar-graphs and On Line, On Battery, Replace Battery and Overload Indicators. | Interfaces/Ports |
| Serial Port: | Yes |
| Total Number of Expansion Slots: | 1 | Battery Information |
| Battery Characteristics: | Spill-proof, Maintenance-free |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 12.50 Minute |
| Backup/Run Time (Half Load): | 40.90 Minute |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 113 °F (45 °C) |
| Sound Emission (A-Weighted): | 45 dB(A) |
| Thermal Dissipation: | 135 BTU/h | Physical Characteristics |
| Color Family: | Beige |
| Product Color: | Beige |
| Height: | 8.50" (215.90 mm) |
| Width: | 6.70" (170.18 mm) |
| Depth: | 17.30" (439.42 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 24.04 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Certifications & Standards: |
|
| Country of Origin: | United States |
| Environmentally Friendly: | Yes | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
Setup checklist: after you receive your UPS →
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Other UPS that fit this load
Matched on capacity, topology, input voltage and form factor.
Confirm outlet configuration and required runtime against your load before ordering. Runtime and receptacles differ between models of the same capacity.

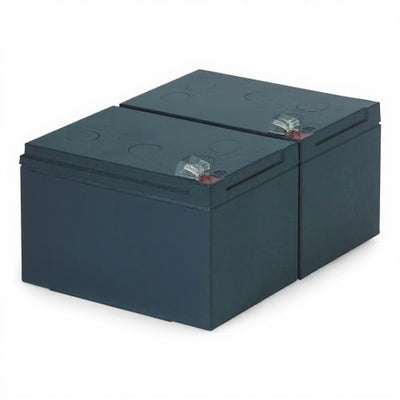

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
