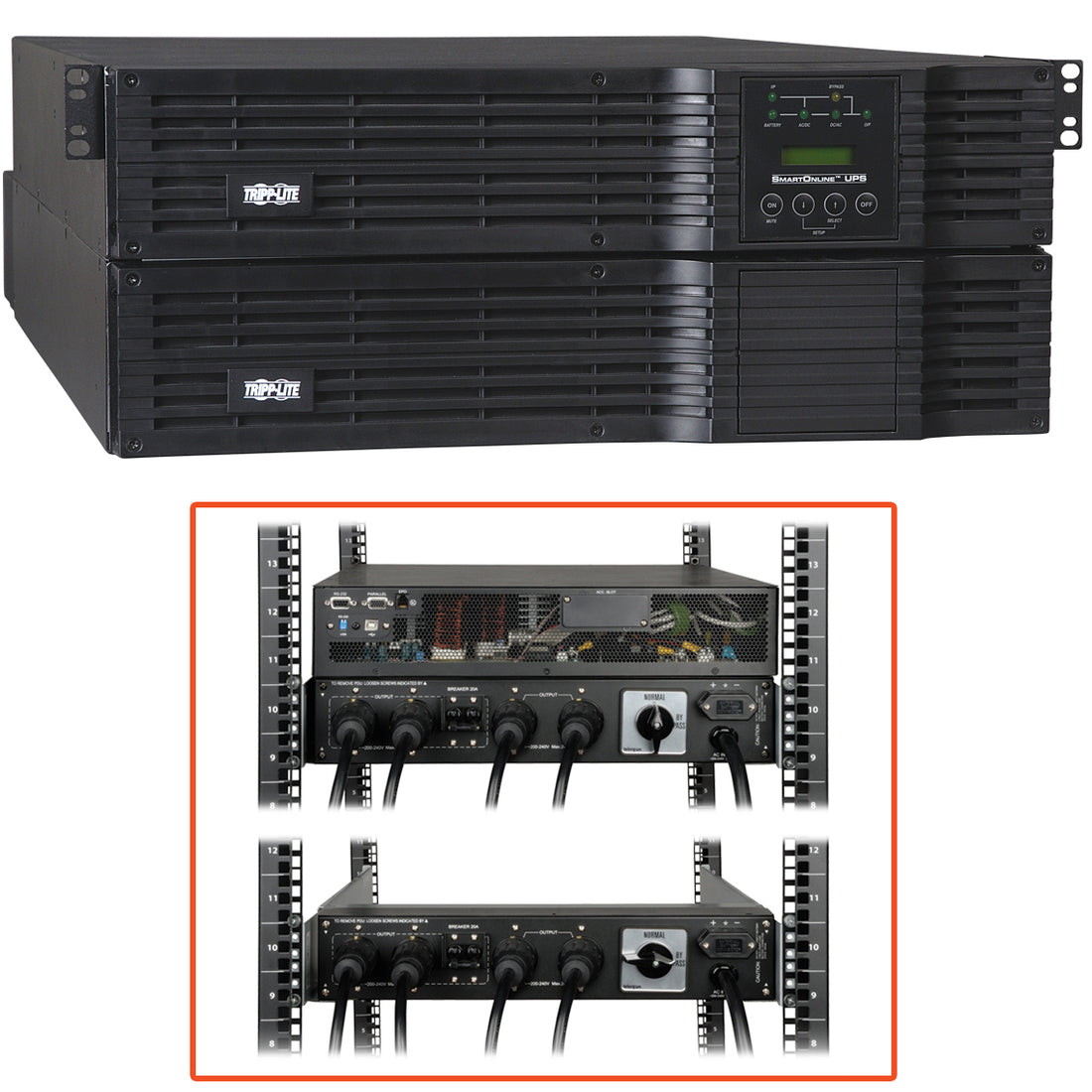

Tripp Lite SmartOnline SU8000RT4U 8000VA Tower/Rack Mountable UPS - SU8000RT4U - Double Conversion Online UPS, 110 V AC,220 V AC, Tower,Rack-mountable, 4U, 240 V AC, Hardwired, SmartOnline, 12 Minute, 5 Minute, 8 kVA/5.60 kW

Tripp Lite SmartOnline SU8000RT4U 8000VA Tower/Rack Mountable UPS - SU8000RT4U - Double Conversion Online UPS, 110 V AC,220 V AC, Tower,Rack-mountable, 4U, 240 V AC, Hardwired, SmartOnline, 12 Minute, 5 Minute, 8 kVA/5.60 kW-UPSPLUSBATTERY

Tripp Lite SmartOnline SU8000RT4U 8000VA Tower/Rack Mountable UPS - SU8000RT4U - Double Conversion Online UPS, 110 V AC,220 V AC, Tower,Rack-mountable, 4U, 240 V AC, Hardwired, SmartOnline, 12 Minute, 5 Minute, 8 kVA/5.60 kW

/
  • Delivery across Canada and USA
  • Low stock - 1 item left
  • Inventory on the way
Product Features:
  • Brand: Tripp Lite by Eaton
  • Product Type: Double Conversion Online UPS
  • Manufacturer Part Number: SU8000RT4U
  • Input Voltage: 110 V AC,220 V AC
  • Form Factor: Tower,Rack-mountable
  • Rack Height: 4U
  • Plug/Connector Type: Hardwired
  • Product Family: SmartOnline
  • Backup/Run Time (Half Load): 12 Minute
  • Backup/Run Time (Full Load): 5 Minute
  • Load Capacity: 8 kVA/5.60 kW

    • Marketing Information:

    Tripp Lite 8kVA SmartOnline Hot-Swappable Modular Rack/Tower UPS offers 8000VA on-line, double-conversion UPS support for server, network and telecommunications equipment. Single all-in-one housing installs in 4 rack spaces (4U). Maintains full-time sine wave output within 3% of selectable 208/120 or 240/120V AC. Corrects brownouts and overvoltages from 65V to 140V (L-N). Converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC output. Network management interfaces include combination DB9 RS-232 enabled and dry contact serial port, enhanced USB port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Split phase 4 conductor hardwire input. UPS supported outlets include two L6-30R, two L6-20R and 4 low voltage 5-15/20R. Hardwire output is also supported.

Product Specifications:
Product Features:
  • Manufacturer:Eaton Corporation
  • Manufacturer Part Number:SU8000RT4U
  • Manufacturer Website Address:http://www.eaton.com/EatonCom/Markets/NorthAmerica
  • Brand Name:Tripp Lite by Eaton
  • Product Line:SmartOnline
  • Product Model:SU8000RT4U
  • Product Name:SmartOnline SU8000RT4U 8000VA Tower/Rack Mountable UPS

    • Marketing Information:

    Tripp Lite 8kVA SmartOnline Hot-Swappable Modular Rack/Tower UPS offers 8000VA on-line, double-conversion UPS support for server, network and telecommunications equipment. Single all-in-one housing installs in 4 rack spaces (4U). Maintains full-time sine wave output within 3% of selectable 208/120 or 240/120V AC. Corrects brownouts and overvoltages from 65V to 140V (L-N). Converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC output. Network management interfaces include combination DB9 RS-232 enabled and dry contact serial port, enhanced USB port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Split phase 4 conductor hardwire input. UPS supported outlets include two L6-30R, two L6-20R and 4 low voltage 5-15/20R. Hardwire output is also supported.


    PRODUCT SPECIFICATIONS
    Plug/Connector Type Hardwired
    Receptacle Type
    • NEMA L6-30R
    • NEMA L6-20R
    • NEMA 5-15/20R
    Receptacle Detail
    • 2 x NEMA L6-30R
    • 2 x NEMA L6-20R
    • 4 x NEMA 5-15/20R
    Emergency Power OFF Yes
    Load Capacity (VA) 8 kVA
    Load Capacity (Watt) 5.60 kW
    Input Voltage
    • 110 V AC
    • 220 V AC
    Output Voltage 240 V AC
    Network Management SNMP Manageable
    Serial Port Yes
    USB Yes
    Backup/Run Time (Full Load) 5 Minute
    Backup/Run Time (Half Load) 12 Minute
    Typical Battery Recharge Time 6 Hour
    Hot Swappable Yes
    Height 7" (177.80 mm)
    Width 17.50" (444.50 mm)
    Depth 32.55" (826.77 mm)
    Rack Height 4U
    Form Factor
    • Tower
    • Rack-mountable
    Weight (Approximate) 177 lb (80285.85 g)
    Package Contents
    • SmartOnline SU8000RT4U 8000VA Tower/Rack Mountable UPS
    • 8kVA/8000VA UPS System in 4U housing
    • Detachable hardwire input/output and output receptacle PDU
    • 4 post rackmount installation brackets
    Software Included Power Alert UPS monitoring software
    Country of Origin China
    Limited Warranty 2 Year

    Call us if more information required.
