Tripp Lite by Eaton SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS - SUINT3000RTXL2U
Tripp Lite by Eaton SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS - SUINT3000RTXL2U
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS

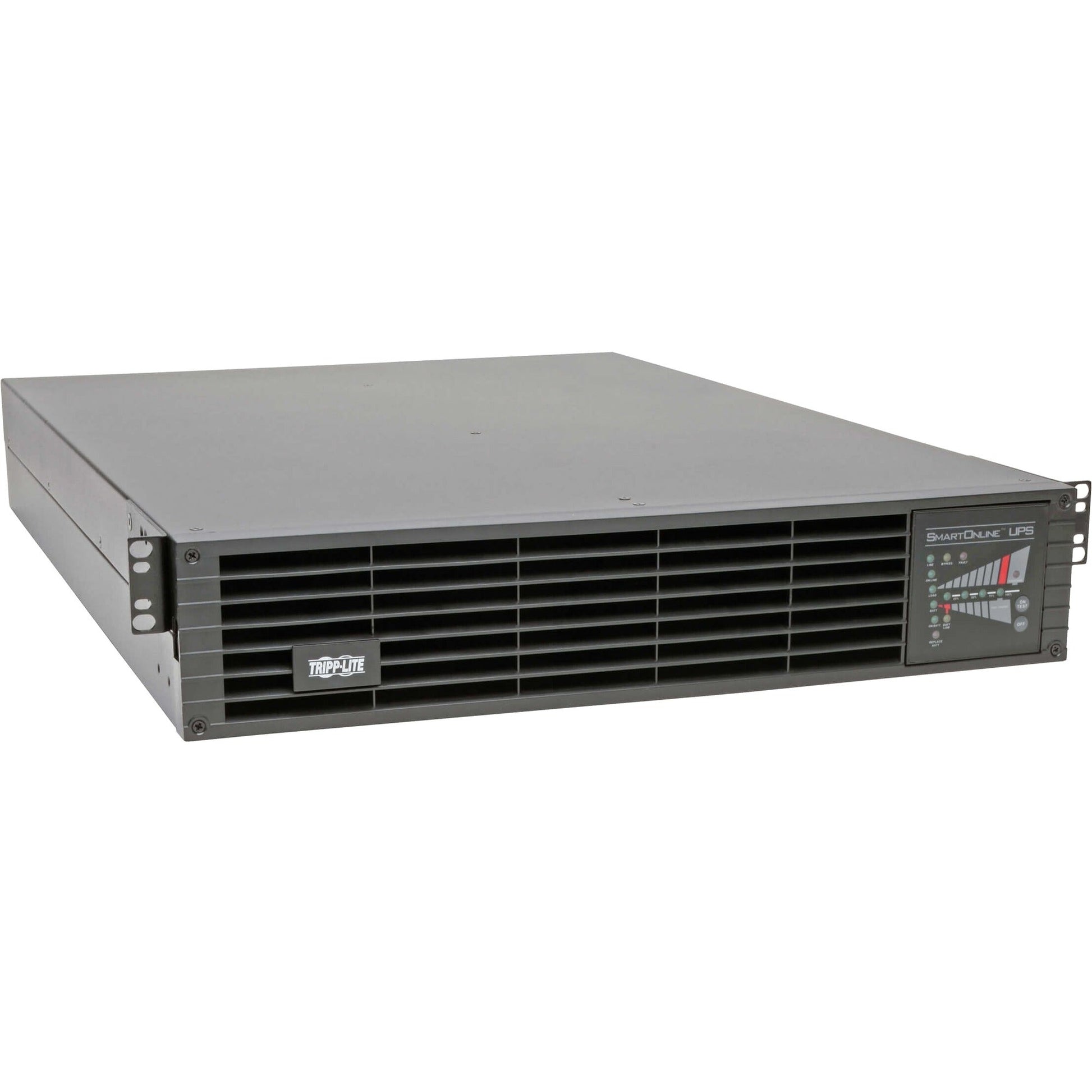

Tripp Lite by Eaton SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS
| UPC | 0037332149183 |
| 2U Rack/Tower - 4.80 Hour Recharge - 6 Minute Stand-by - 220 V AC Input - 240 V AC, 208 V AC, 240 V AC, 220 V AC, 230 V AC Output - Serial Port - USB - 10 - SNMP Manageable | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SUINT3000RTXL2U |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartOnline |
| Product Model: | SUINT3000RTXL2U |
| Product Name: | SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS |
| Marketing Information: | 3000VA / 3kVA / 2500 watt on-line, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 66cm (26 inches). Full time sine wave 200/208/220/230/240V output with +/-2% voltage regulation. UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 120V and overvoltages to 288V. C20 inlet accepts a wide variety of optional cordsets. C19 and C13 output receptacles. Network management interfaces include USB port, DB9 serial port and SNMPWEBCARD slot. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Multi-stage metered current monitoring and battery charge status LEDs. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Receptacle Detail: | 10 |
| Bypass Switch: | Automatic |
| Emergency Power OFF: | Yes |
| Transfer Time: | 0 ns | Power Description |
| Load Capacity (VA): | 3 kVA |
| Load Capacity (Watt): | 2.50 kW |
| Input Voltage: | 220 V AC |
| Input Current: | 15 A |
| Output Voltage: |
|
Management |
| Network Management: | SNMP Manageable | Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes | Battery Information |
| Backup/Run Time (Full Load): | 6 Minute |
| Backup/Run Time (Half Load): | 15 Minute |
| Typical Battery Recharge Time: | 4.80 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 3.50" (88.90 mm) |
| Width: | 17.30" (439.42 mm) |
| Depth: | 26" (660.40 mm) |
| Rack Height: | 2U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 35.52 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
Input Receptacle: C20 Output Receptacles:
|
| Certifications & Standards: |
|
| Software Included: | PowerAlert Software |
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
