| UPC | 0731304224570 |
| 3000VA/2850W - 3.5 Minute Full Load - 7 x IEC 320-C13 - Battery/Surge-protected, 1 x IEC 320-C19 - Battery/Surge-protected, 4 x - Battery/Surge-protected | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SUM3000RMXLI2U |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Series: | XL |

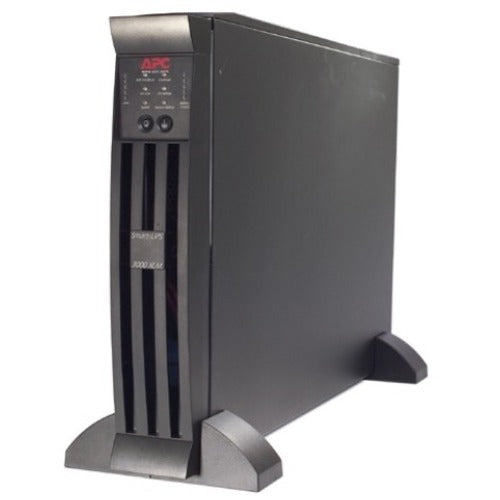

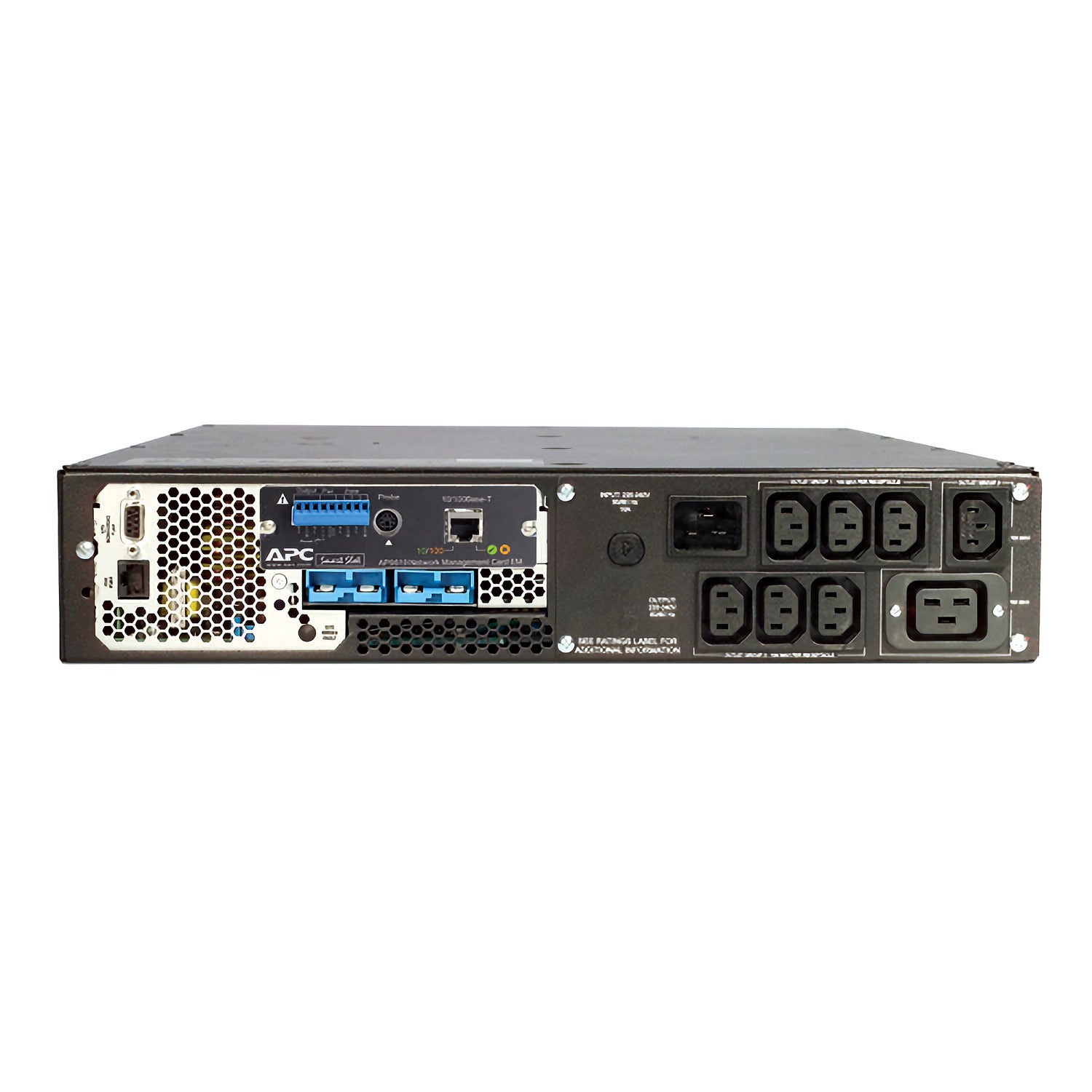

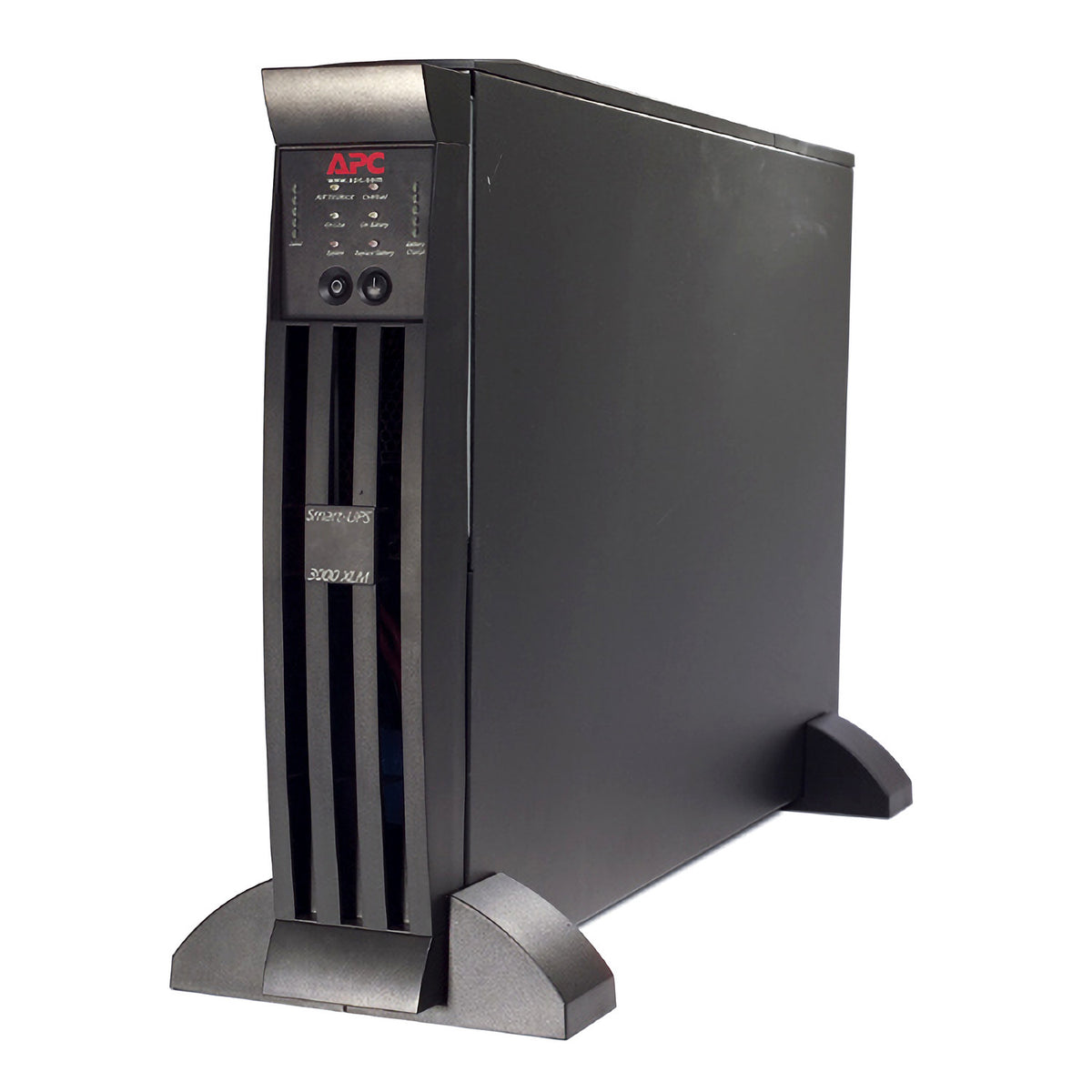

| Product Name: | Smart-UPS XL 3000VA Rack Mountable/Tower |
| Marketing Information: | APC Smart-UPS XL 3000VA protects your data by supplying reliable, network-grade power with scalable run-time in tower and rack mount form factors. With optional, matching battery packs, run-time can be easily extended and optimized for the application. APC understands long run-time requirements so; Smart-UPS XL's can be configured with up to 10 additional battery packs - for run-times exceeding 24 hours, if necessary. The convergence of voice and data networks is placing higher demands on availability expectations - and the Smart-UPS XL delivers. Voice over Internet Protocol (VoIP), e-commerce, WiFi ("hotspots" , WLAN/ WWAN, and mixed wireless), and data enabled PBX's are a few of the applications driving the need for Smart-UPS XL. APC Smart-UPS XL is also the perfect UPS for fileservers (Intel or UNIX based), minicomputers, Network switches and hubs, ATM's, telecommunications systems and other mission-critical applications requiring longer runtime. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | IEC 320-C20 |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 10 |
| Bypass Switch: | Automatic & Manual |
| Emergency Power OFF: | Optional |
| Cord Length: | 10 ft | Power Description |
| Load Capacity (VA): | 3 kVA |
| Load Capacity (Watt): | 2.85 kW |
| Input Voltage: | 220 V AC |
| Output Voltage: |
|
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 490 J | Management |
| Alarm: |
|
| Battery Management: | Intelligent Battery Management | Controls/Indicators |
| Status Indicators: |
|
Interfaces/Ports |
| Serial Port: | Yes |
| Network (RJ-45): | Yes |
| USB: | Yes | Battery Information |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 3.50 Minute |
| Backup/Run Time (Half Load): | 11.90 Minute |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 113°F (45°C) |
| Thermal Dissipation: | 300 BTU/h | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 3.40" (86.36 mm) |
| Width: | 17" (431.80 mm) |
| Depth: | 26.70" (678.18 mm) |
| Rack Height: | 2U |
| Form Factor: | Rack-mountable |
| Weight (Approximate): | 46.72 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Certifications & Standards: |
|
| Environmentally Friendly: | Yes | Warranty |
| Limited Warranty: | 2 Year |
Call us if more information required.
