| UPC | 0731304205418 |
| 1000VA/700W - 10.2 Minute Full Load - 6 x IEC 320-C13, 2 | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SURT1000XLI |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Series: | RT |

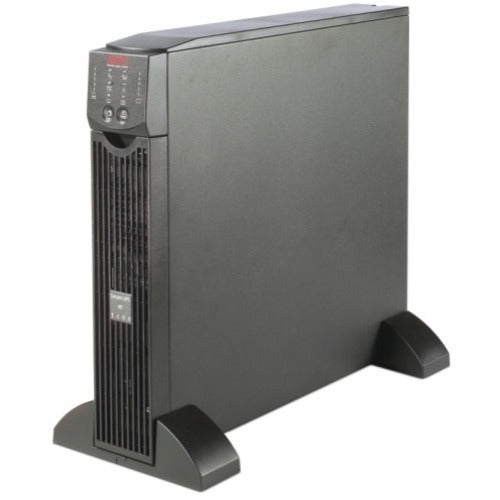

| Product Name: | Smart-UPS RT 1000VA |
| Marketing Information: | Smart-UPS RT is a family of high preformance UPSs for servers, networking equipment, telecommunication systems, industrial and medical equipment, and other mission-critical applications. Smart-UPS RT UPSs are based on the field-proven, industry-leading Smart-UPS functionality, but features double conversion on-line topology, which delivers tight voltage and frequency regulation, zero transfer time to and from battery, and input power factor correction. While offering advanced performance and high availability features, the Smart-UPS RT can be managed using PowerChute software, as well as an array of SmartSlot accessories. Smart-UPS RT provides battery back up to the load through the use of internal batteries. However, an unlimited number of external battery packs can be added to meet desired levels of runtime. All Smart-UPS RTs and battery packs ship in tower configuration, while easily converting to the 19" rack-mount mode with the addition of an APC Rail Kit. |
| Product Type: | Double Conversion Online UPS | Technical Information |

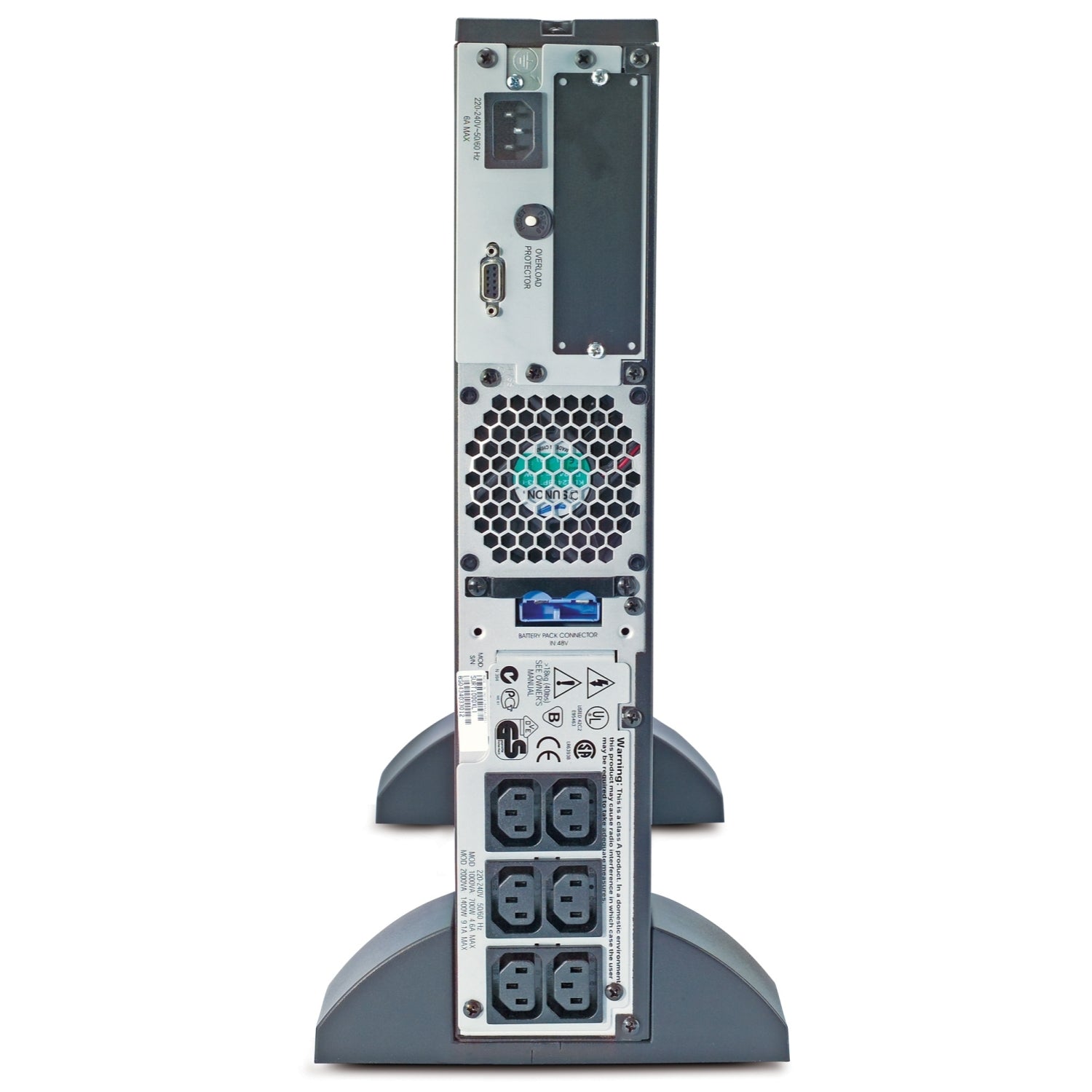

| Plug/Connector Type: | IEC 320-C14 |
| Receptacle Type: | IEC 60320 C13 |
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 8 |
| Bypass Switch: | Automatic |
| Emergency Power OFF: | Optional |
| Transfer Time: | 0 ns | Power Description |
| Load Capacity (VA): | 1 kVA |
| Load Capacity (Watt): | 700 W |
| Input Voltage: | 220 V AC |
| Output Voltage: | 230 V AC |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 420 J | Management |
| Alarm: |
|
| Battery Management: | Intelligent Battery Management | Controls/Indicators |
| Status Indicators: | LED status display with load and battery bar-graphs and On Line, On Battery, Replace Battery, Overload and Bypass Indicators. | Interfaces/Ports |
| Serial Port: | Yes |
| Total Number of Expansion Slots: | 1 | Battery Information |
| Battery Characteristics: | Spill-proof, Maintenance-free |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 10.20 Minute |
| Backup/Run Time (Half Load): | 24.40 Minute |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 122°F (50°C) |
| Sound Emission (A-Weighted): | 50 dB(A) |
| Thermal Dissipation: | 239 BTU/h | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 3.35" (85.09 mm) |
| Width: | 17" (431.80 mm) |
| Depth: | 19" (482.60 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 22.95 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Certifications & Standards: |
|
| Environmentally Friendly: | Yes | Warranty |
| Limited Warranty: | 2 Year |
