About this UPS
- Brand: APC by Schneider Electric
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: SURT3000XLIX554
- Form Factor: Rack/Tower
- Rack Height: 6U
- Product Family: Smart-UPS RT
- Backup/Run Time (Full Load): 14 Minute
- Load Capacity: 3 kVA/2.10 kW
Marketing Information:

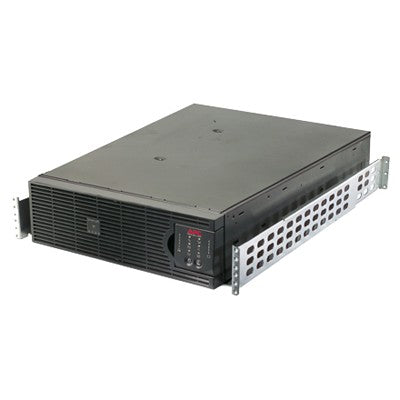

APC Smart-UPS RT 3000VA Tower/Rack-Mountable UPS provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. This UPS has the ability to be configured with matching battery packs to comply with aggressive runtime demands of business-critical systems. Also provides value to customers with demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Number of Battery & Surge Outlets | 13 |
| Bypass Switch |
|
| Emergency Power OFF | Yes |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.10 kW |
| Output Voltage | 230 V AC |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 14 Minute |
| Typical Battery Recharge Time | 2.50 Hour |
| Height | 17.01" (432 mm) |
| Width | 5.12" (130 mm) |
| Depth | 25.98" (660 mm) |
| Rack Height | 6U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 54.55 kg |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
