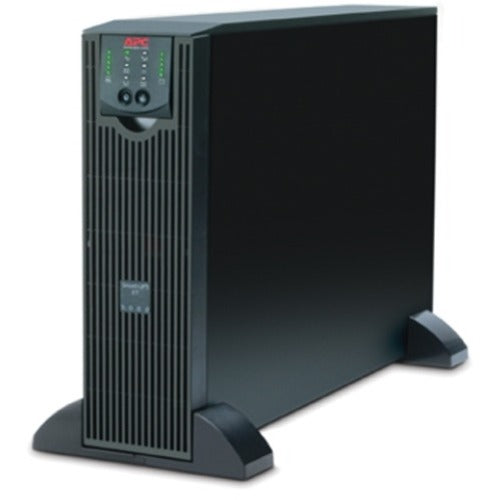

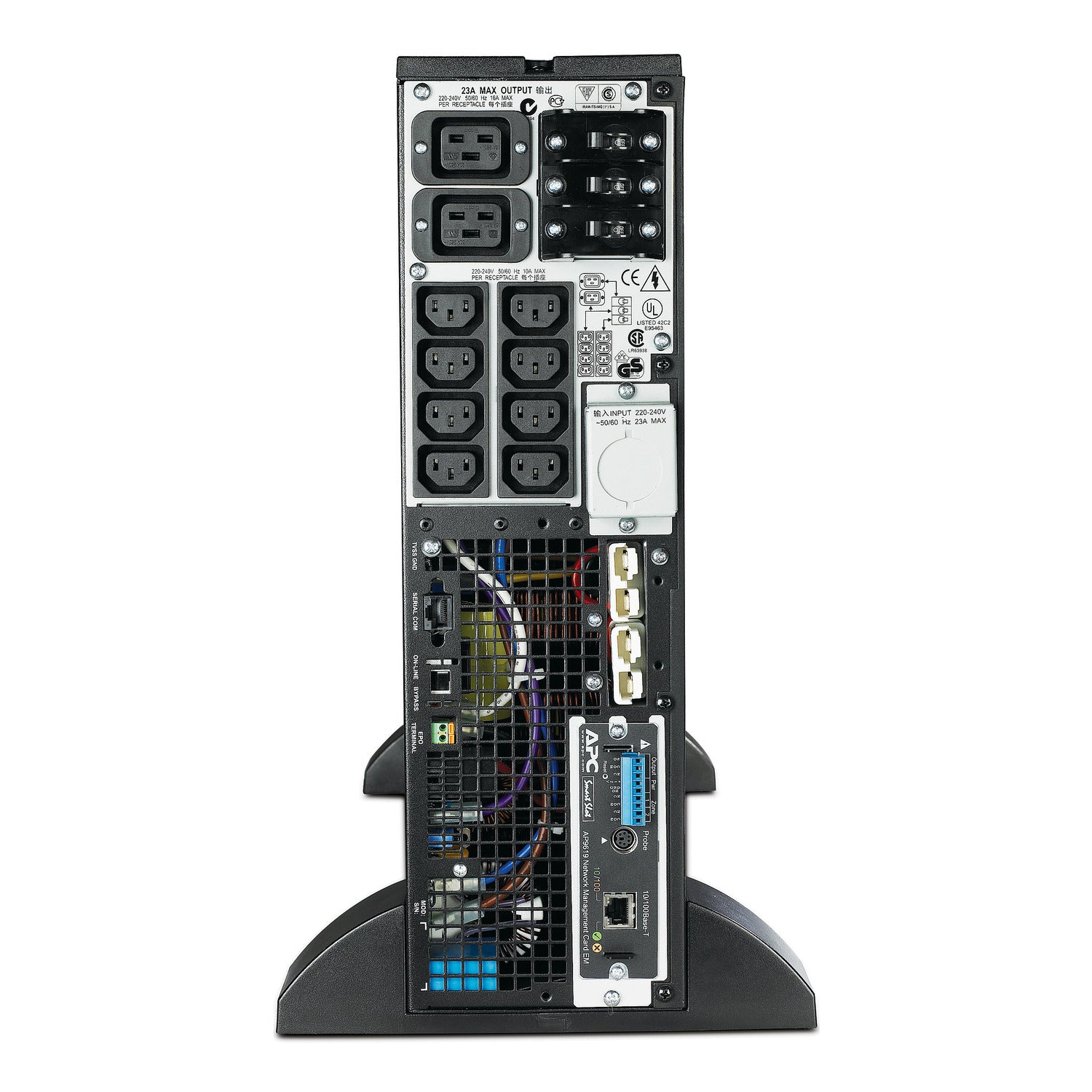

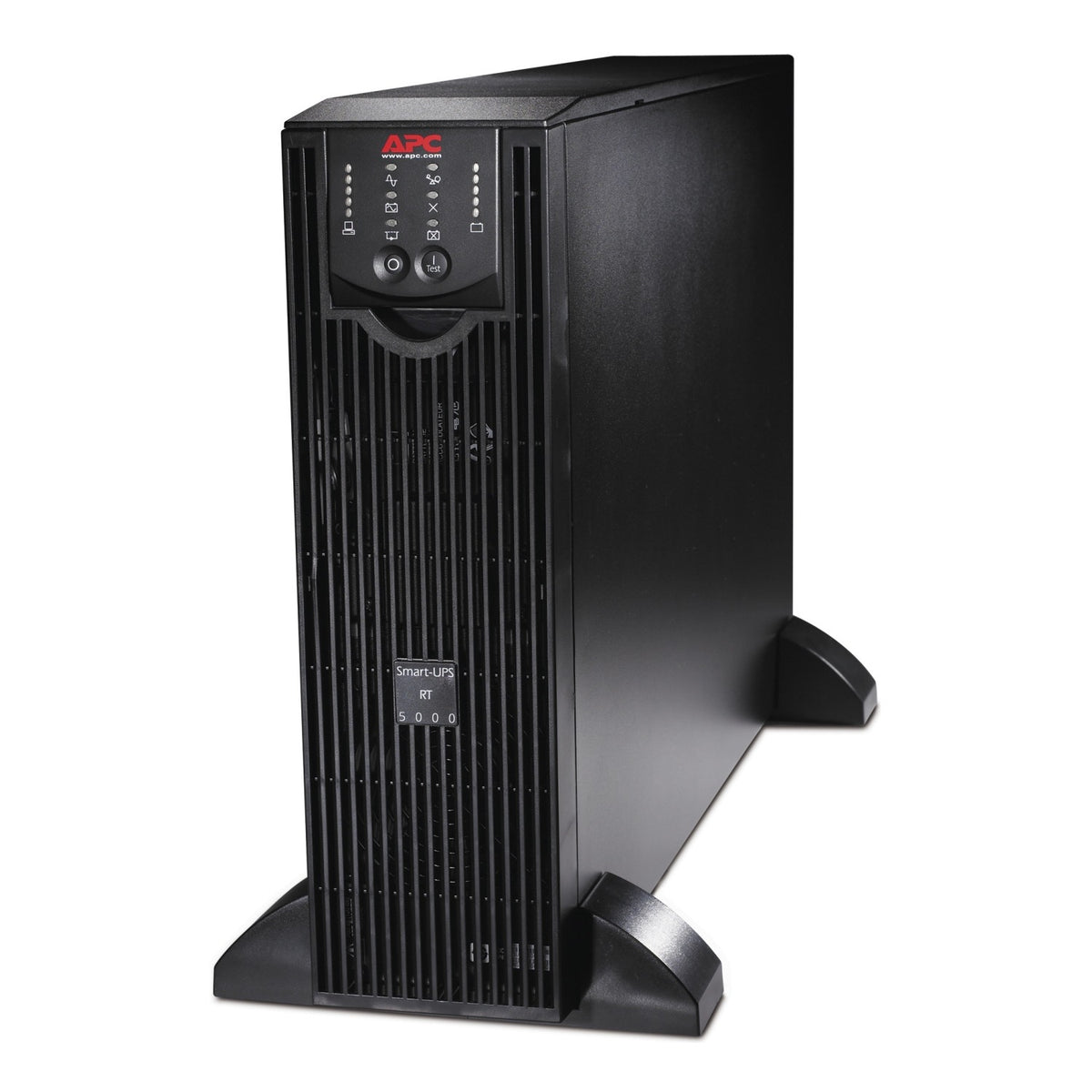

APC Smart-UPS RT 5000VA Rack-mountable UPS - SURTD5000XLI
APC Smart-UPS RT 5000VA Rack-mountable UPS - SURTD5000XLI
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS
APC Smart-UPS RT 5000VA Rack-mountable UPS
| UPC | 0731304240266 |
| 5000VA/3500W - 5 Minute Full Load - 8 x IEC 320-C13 - Battery/Surge-protected, 2 x IEC 320-C19 - Battery/Surge-protected, 6 x - Battery/Surge-protected | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SURTD5000XLI |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Series: | RT |
| Product Name: | Smart-UPS RT 5000VA Rack-mountable UPS |
| Marketing Information: | APC Smart-UPS RT SURTD5000XLI is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Capable of supporting 5000VA in a 3U rack-mountable form, users can support power hungry blade servers or heavily loaded equipment racks. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hard Wire 3-wire |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Bypass Switch: | Internal |
| Emergency Power OFF: | Yes | Power Description |
| Load Capacity (VA): | 5 kVA |
| Load Capacity (Watt): | 3.50 kW |
| Input Voltage: | 220 V AC |
| Output Voltage: | 230 V AC |
| Waveform Type: | Sine Wave | Interfaces/Ports |
| Network (RJ-45): | Yes | Battery Information |
| Battery Characteristics: | Spill-proof, Maintenance-free |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 5 Minute |
| Backup/Run Time (Half Load): | 15.40 Minute |
| Typical Battery Recharge Time: | 2.50 Hour | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 17" (431.80 mm) |
| Width: | 5.10" (129.54 mm) |
| Depth: | 26" (660.40 mm) |
| Rack Height: | 3U |
| Form Factor: | Rack-mountable |
| Weight (Approximate): | 54.43 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | UL 1449, C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, VDE |
| Environmentally Friendly: | Yes | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.

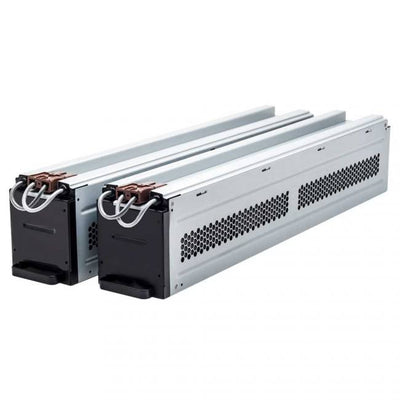

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
