About this component

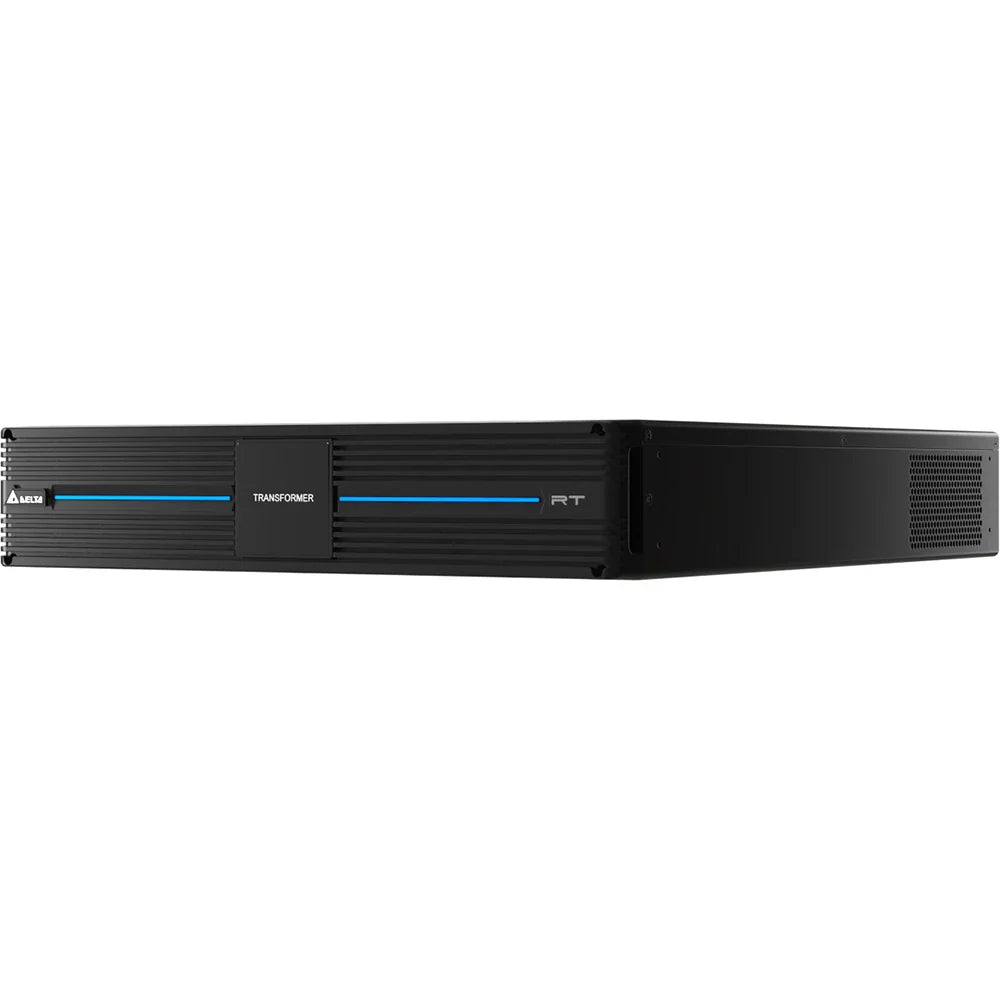

The Delta TFM103R4RT2N035 is an isolation step-down transformer for the Delta Amplon RT 8 kVA and 10 kVA. Those units run on 208 V, and this cabinet gives you both 208 V and 120 V outputs so you can feed mixed North American equipment from the UPS without a separate distribution panel.
Specifications
- Rating: 10 kVA / 10 kW
- Type: isolation, step-down, sine wave
- Input: 208 Vac, 60 Hz, 49.2 A max — terminal block, hardwire only (#6 AWG input cable supplied)
- Output: 208 and 120 Vac, 60 Hz
- Output receptacles: 2 × NEMA L14-30R, 8 × NEMA 5-15/20R, plus an output terminal block for optional hardwiring
- Efficiency: greater than 95% at full linear load
- Output voltage regulation: under 3%
- Output harmonic distortion: under 3% at full linear load
- Protection: resettable circuit breaker
- Dimensions (W × D × H): 440.2 × 726 × 130 mm (17.3 × 28.6 × 5.12 in)
- Weight: 57 kg
- Audible noise: 60 dBA
- Operating temperature: 0 to 40 °C (32 to 104 °F)
- Approvals: UL/CUL listed, FCC certified
Installation note: this unit is hardwire only. Plan for a licensed electrician.
Specifications above are taken from Delta Electronics published documentation for this part number.
