Available on orderTripp Lite
· SMART1000LCD

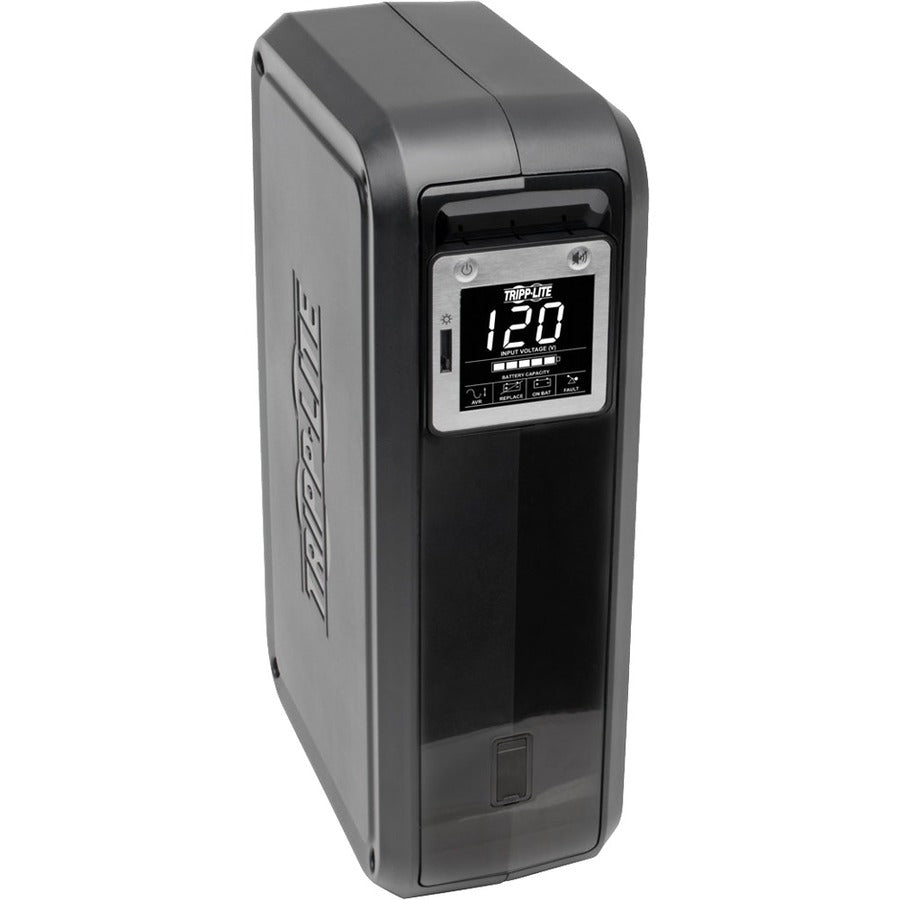

Tripp Lite SmartPro SMART1000LCD 1000 VA / 500 W Tower Line-Interactive UPS
- Power
- 1000 VA / 500 W
- Form
- Tower
- Outlets
- 4× NEMA 5-15R, 4× NEMA 5-15R
$349.99
About this UPS
Product Features:
- Brand: Tripp Lite
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMART1000LCDU
- Input Voltage: 120 V AC
- Form Factor: Desktop/Tower
- Product Family: SmartPro
- Backup/Run Time (Full Load): 3 Minute
- Load Capacity: 1 kVA/500 W
- Provides 1000VA/500W power protection for home theater components and desktop computer system
- Supports basic desktop computer and LCD monitor up to 60 min. or single DVR components up to 3 hr. during power outage
- Supports 50% load (250W) up to 10 min. and full load (500W) up to 3 min.
- 98% full-load efficiency rating saves money in energy costs
- Audible alarm indicates loss of utility power or low battery
- 4 NEMA 5-15R outlets deliver battery backup for devices that require constant power
- All 8 outlets protect against surges or spikes that can harm equipment or data
- Maintains 120V nominal output over input range of 89V-139V without using battery power
- Large LCD screen shows real-time input voltage, overload, AVR and battery statuses
- Rotates for easy viewing in both horizontal and vertical installations
- 1038-joule surge suppression rating protects connected equipment and data from harmful power surges
- Tel/DSL RJ11 jacks (with included cable) protect standard dialup/DSL connection
- 2.2 Hz coaxial jacks protect CATV, broadband cable internet, satellite or broadcast antenna connections
- Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance
Marketing Information:
The SMART1000LCDU SmartPro LCD 120V 1000VA 500W Line-Interactive Desktop UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up your home theater components and desktop computer system, the SMART1000LCDU switches to battery backup mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss. While all eight NEMA 5-15R outlets protect against surges, four outlets also provide up to three hours of UPS battery support for a DVR component, 60 minutes of support for a basic desktop PC and LCD monitor, 10 minutes of support at half load (250W) and three minutes of support at full load (500W). This highly efficient UPS helps you save money and energy. Automatic voltage regulation (AVR) maintains 120V nominal output over an input range of 89V to 139V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 1038-joule surge suppression rating protects your equipment from harmful power surges. With Tripp Lite's free PowerAlert ® software (available via web download), the SMART1000LCDU enables safe unattended system shutdown and file saves in case of a prolonged power failure.
Reliable Battery Backup
Product Specifications:
-
Receptacle Type: NEMA 5-15RReceptacle Detail: 8 x NEMA 5-15RTransfer Time: 3 msLoad Capacity: 1 kVA/500 WInput Voltage: 120 V ACOutput Voltage:
- 115 V AC
- 120 V AC
- SmartPro SMART1000LCDU 1000VA Desktop/Tower UPS
- USB Cable
- Telephone Cable
- Owner's Manual
Technical specifications
Power
VA Rating
1000VA
Wattage
500W
Topology
Line-Interactive
Waveform
Simulated Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-15P (standard 15A)
Input Phase
Single-phase
Output
Output Voltage
115V
Receptacles
4× NEMA 5-15R4× NEMA 5-15R (no battery backup)
Features
Form Factor
Tower
Connectivity
USB
Network Card Installed
No
Extended Runtime Capable
No
Condition
New
Dimensions
301 × 93 × 184 mm (11.84 × 3.66 × 7.24 in)
Weight
7.05kg
Certifications
CSA (Canada)NOM (Mexico)UL 1778
Manufacturer Warranty
3 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (250 W)
10 min
Full load (500 W)
3 min
Available now
The manufacturer no longer makes the SMART1000LCDU. These UPS are sold today; each card compares one with the discontinued model.
-
Xtreme Power Conversion
Xtreme Power S71-1000 1000 VA / 600 W Line-Interactive UPS, 120 V
Compared with SMART1000LCDU Spec SMART1000LCDU Xtreme Power Capacity 1000 VA / 500 W 1000 VA / 600 W Topology Line-Interactive Line-Interactive Form Tower Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 4 × NEMA 5-15R, 4 × NEMA 5-15R (4 on battery) 6 × NEMA 5-15R Runtime, half load 10 min 2 min Differences
- Larger unit: 600 W instead of 500 W
$362.40 -
Xtreme Power Conversion
Xtreme Power T91-700 700 VA / 700 W Online UPS, 120 V
Compared with SMART1000LCDU Spec SMART1000LCDU Xtreme Power Capacity 1000 VA / 500 W 700 VA / 700 W Topology Line-Interactive Online Double-Conversion Form Tower Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 4 × NEMA 5-15R, 4 × NEMA 5-15R (4 on battery) 6 × NEMA 5-15R Runtime, half load 10 min 16 min Differences
- Lower VA rating: 700 VA instead of 1000 VA
- Online double-conversion, a step up from line-interactive
- Larger unit: 700 W instead of 500 W
$958.94
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Discontinued by the manufacturer
Available now
The manufacturer no longer makes the SMART1000LCDU. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
