Tripp Lite SmartPro SMART750RM1UN 750 VA / 600 W Rack Line-Interactive UPS
Tripp Lite SmartPro SMART750RM1UN 750 VA / 600 W Rack Line-Interactive UPS
Regular price
$1,854.99 CAD
Regular price
Sale price
$1,854.99 CAD
In stock
Shipping calculated at checkout.
Quantity
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
About this UPS
Product Features:
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMART750RM1UN
- Input Voltage: 120 V AC
- Form Factor: Rack-mountable
- Rack Height: 1U
- Product Family: SmartPro
- Backup/Run Time (Full Load): 4.90 Minute
- Load Capacity: 750 VA/600 W
Marketing Information: Tripp Lite SMART750RM1U 750VA /.75kVA / 600 watt line interactive, sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/tower configuration. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Line interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in datacenters, computer rooms and network closets.
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Backup/Run Time (Full Load) | 4.90 Minute |
| Typical Battery Recharge Time | 13.20 Minute |
| Height | 1.70" (43.18 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 16.80" (426.72 mm) |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 30 lb (13607.77 g) |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
Technical specifications
Power
VA Rating
750VA
Wattage
600W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-15P (standard 15A)
Input Phase
Single-phase
Output
Output Voltage
120V
Receptacles
6× NEMA 5-15R
Features
Form Factor
Rackmount 1U
Rack Units
1U
Connectivity
USBRS-232 SerialSNMP (via Network Management Card)HTTP/Web Management
Network Card Installed
Yes
Extended Runtime Capable
No
Condition
New
Dimensions
43 × 444 × 427 mm (1.70 × 17.50 × 16.80 in)
Weight
13.61kg
Certifications
CSA (Canada)NOM (Mexico)UL 1778
Manufacturer Warranty
3 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (300 W)
13 min
Full load (600 W)
4.9 min
Compare with alternatives
The SMART750RM1UN side by side with UPS from other makers.
-
Xtreme Power Conversion
Xtreme Power P80-800 800 VA / 720 W Line-Interactive UPS, 120 V
Compared with SMART750RM1UN Spec SMART750RM1UN Xtreme Power Capacity 750 VA / 600 W 800 VA / 720 W Topology Line-Interactive Line-Interactive Form Rackmount 1U, 1U Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 13 min 11 min Differences
- Takes 2U of rack space instead of 1U
- Network card not included
- Larger unit: 720 W instead of 600 W
$1,068.18 -
Xtreme Power Conversion
Xtreme Power P91c-1000 1000 VA / 800 W Online UPS, 120 V
Compared with SMART750RM1UN Spec SMART750RM1UN Xtreme Power Capacity 750 VA / 600 W 1000 VA / 800 W Topology Line-Interactive Online Double-Conversion Form Rackmount 1U, 1U Rackmount 1U, 1U Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 3 × NEMA 5-15R Runtime, half load 13 min 20 min Differences
- 3 battery-backed outlets instead of 6
- Network card not included
- Online double-conversion, a step up from line-interactive
- Larger unit: 800 W instead of 600 W
$1,390.17
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Works with this UPS
Only accessories the manufacturer lists for this model.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.

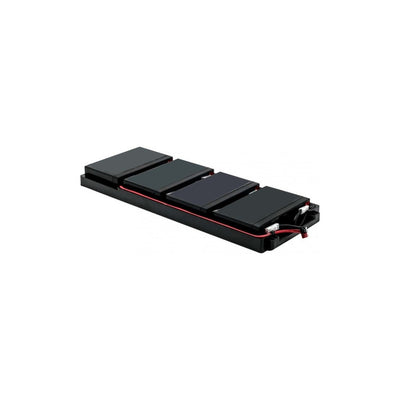

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
