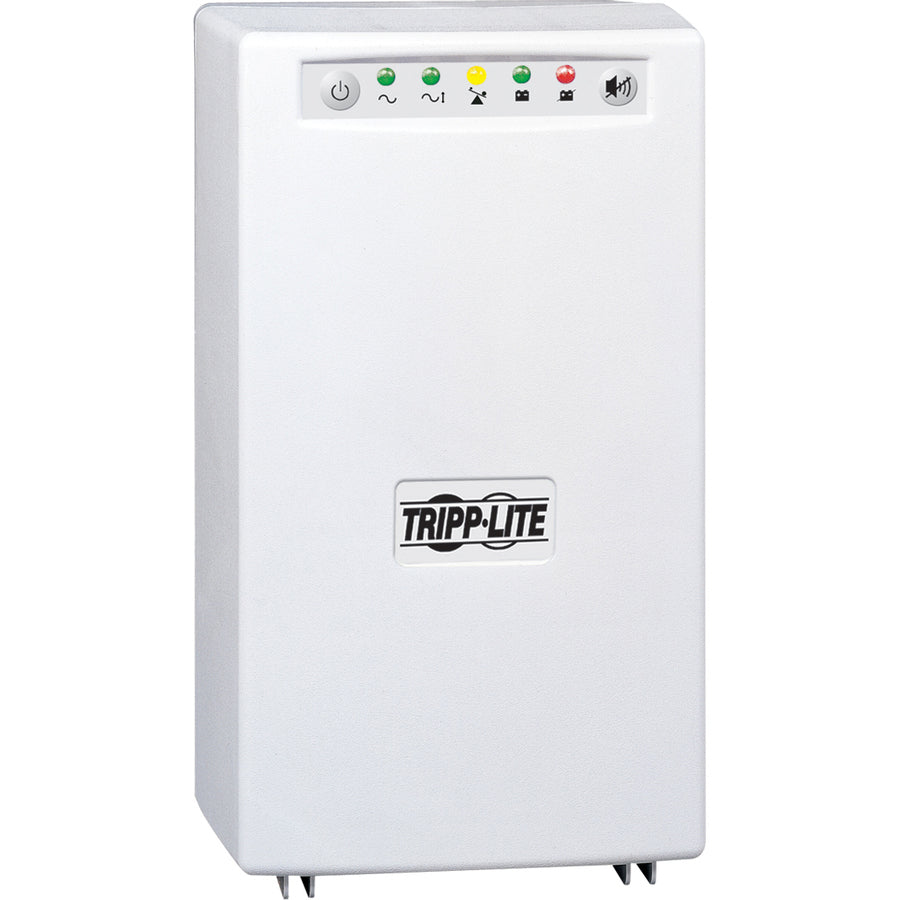

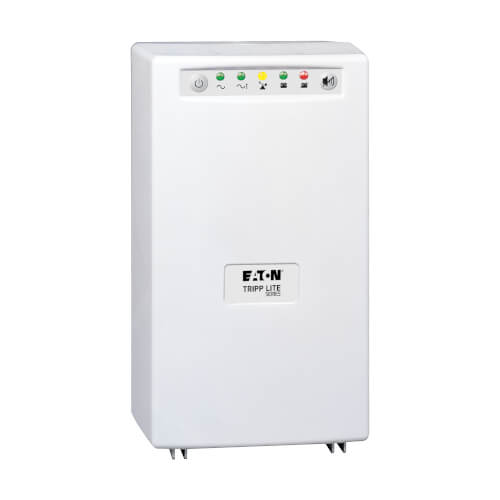

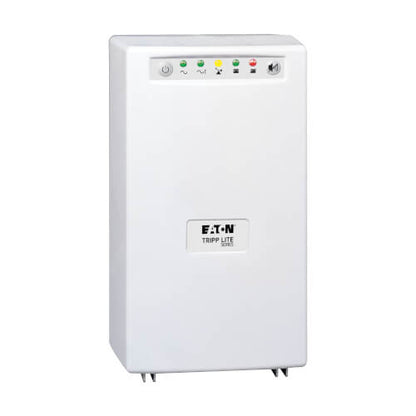

Tripp Lite SmartPro SMX1200XLHG 1000 VA / 750 W Tower Line-Interactive UPS 230 V
Tripp Lite SmartPro SMX1200XLHG 1000 VA / 750 W Tower Line-Interactive UPS 230 V
Regular price
$1,628.99 CAD
Regular price
Sale price
$1,628.99 CAD
Available on order
230 V model. Not for 120 V outlets.
Shipping calculated at checkout.
Quantity
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
About this UPS
Product Features:
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMX1200XLHG
- Input Voltage: 220 V AC
- Form Factor: Tower
- Plug/Connector Type: IEC 60320 C14
- Product Family: SmartPro
- Backup/Run Time (Half Load): 27.50 Minute
- Backup/Run Time (Full Load): 11 Minute
- Load Capacity: 1 kVA/750 W
- Compliant with UL 60601-1 standards for use in patient-care vicinities, when plugged into a hospital-grade outlet
- Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise
- 27.5 minutes runtime for half load (375W); 11 minutes for full load (750W)
- All six hospital-grade outlets provide surge protection rated to 340 joules
- EMI/RFI noise filtering ensures equipment runs smoothly without line noise interference
- Resistant to electrostatic discharge
- Indicator lights on the front of the unit show you when the UPS is on and supplying utility power, when operating in voltage correction mode or in battery mode, relative load level and low-battery warning
- Audible alarms alert you to power failure, overload and low battery conditions; the alarm's mute/quiet mode ensures patients are not disturbed
- Works with Tripp Lite PowerAlert software (included) to enable safe, unattended system shutdown and files saves during prolonged power failures
- Connects to your computer via either the DB9 port or USB port

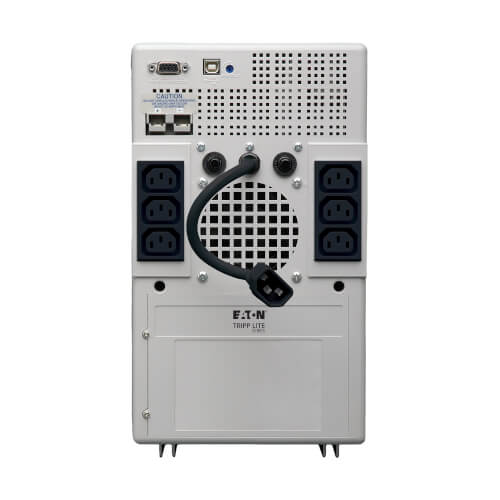

Marketing Information: Tripp Lite's SMX1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 27.5 minutes of runtime for a half load, or 11 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX1200XLHG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps. This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15 cm (6 in.) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules. The SMX1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite's included PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.
Application Usage This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX1200XLHG in this type of application will void the battery warranty
Provides Ideal UPS Backup in Healthcare Facilities
Battery Backup and Full Surge Protection
LEDs and Audible Alarms Keep You Aware of Power Status
Saves Your Files, Even When You're Away
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C13 |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 750 W |
| Input Voltage | 220 V AC |
| Input Current | 5 A |
| Output Voltage | 230 V AC |
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 11 Minute |
| Backup/Run Time (Half Load) | 27.50 Minute |
| Typical Battery Recharge Time | 4.50 Hour |
| Hot Swappable | Yes |
| Height | 12.70" (322.58 mm) |
| Width | 7.50" (190.50 mm) |
| Depth | 9.10" (231.14 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 45.50 lb (20638.45 g) |
| Package Contents |
|
| Certifications & Standards | CE IEC 60601-1 (Medical) Class B (Emissions) |
| Software Included | PowerAlert Software |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
Technical specifications
Power
VA Rating
1000VA
Wattage
750W
Topology
Line-Interactive
Waveform
Simulated Sine Wave
Input
Input Voltage
240V
Input Plug
IEC C14
Input Phase
Single-phase
Output
Output Voltage
230V
Receptacles
6× IEC 60320 C13
Features
Form Factor
Tower
Connectivity
USBRS-232 SerialHTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
Yes
Condition
New
Dimensions
323 × 190 × 231 mm (12.70 × 7.50 × 9.10 in)
Weight
20.64kg
Certifications
UL 60601-1
Manufacturer Warranty
2 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (375 W)
28 min
Full load (750 W)
11 min

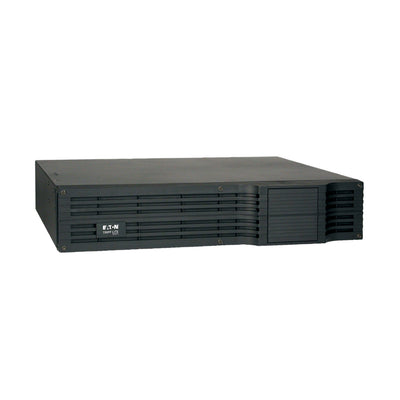

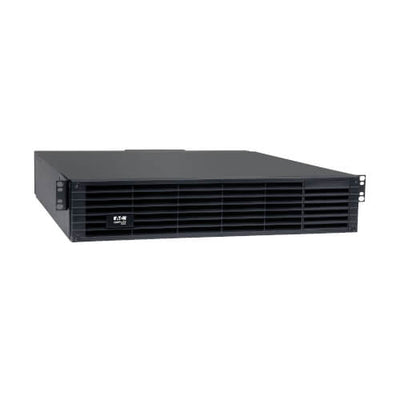

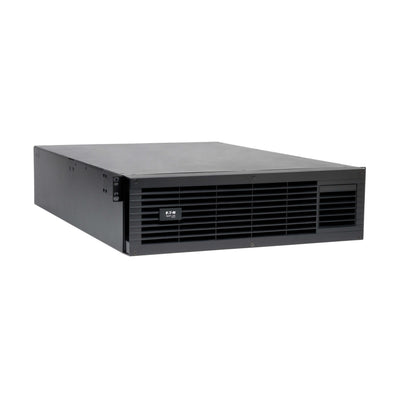

Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Works with this UPS
Only accessories the manufacturer lists for this model.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.

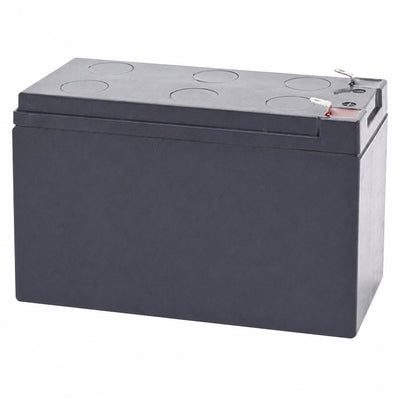

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
