About this UPS
The Delta Amplon UPS202R1RT0B0B8 is a 2 kVA online double-conversion UPS. It rebuilds the incoming waveform continuously, so connected equipment sees clean power with zero transfer time when utility power fails — the behaviour you want in front of servers, storage and network gear.
Electrical
- Capacity: 2 kVA / 1.8 kW (power factor 0.9)
- Topology: true online double conversion, pure sine wave output
- Input: 120 V, NEMA 5-20P, 10 ft cord

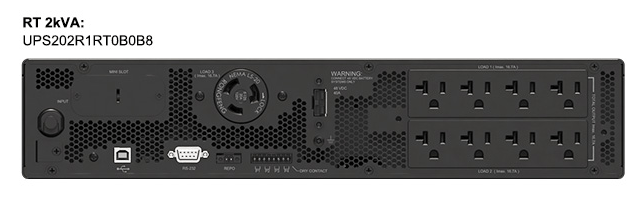

- Output receptacles: 8 × NEMA 5-15/20R, 1 × NEMA L5-20R

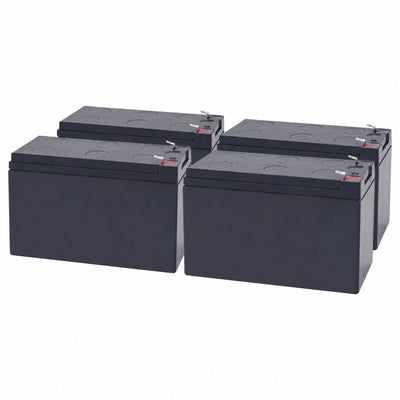

- Internal battery: 48 Vdc, 12 V / 9 Ah VRLA
- Runtime at full load: 4 minutes (internal batteries)
Physical & environmental
- Form factor: convertible rack (2U) or tower
- Dimensions (W × D × H): 440 × 430 × 88.2 mm (17.3 × 16.9 × 3.5 in)
- Weight: 20.8 kg
- Operating temperature: 0 to 40 °C (32 to 104 °F)
Monitoring & expansion
- One Mini Slot for the Delta SCMS100035 SNMP card (sold separately) — adds SNMP and web management
- RS-232, USB, REPO/ROO and dry-contact interfaces
- Runtime extends with the BBU042B1090B8 external battery pack
Specifications above are taken from Delta Electronics published documentation for this part number.
Sold and supported in Canada. Questions on sizing, runtime or installation: contact us.
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
