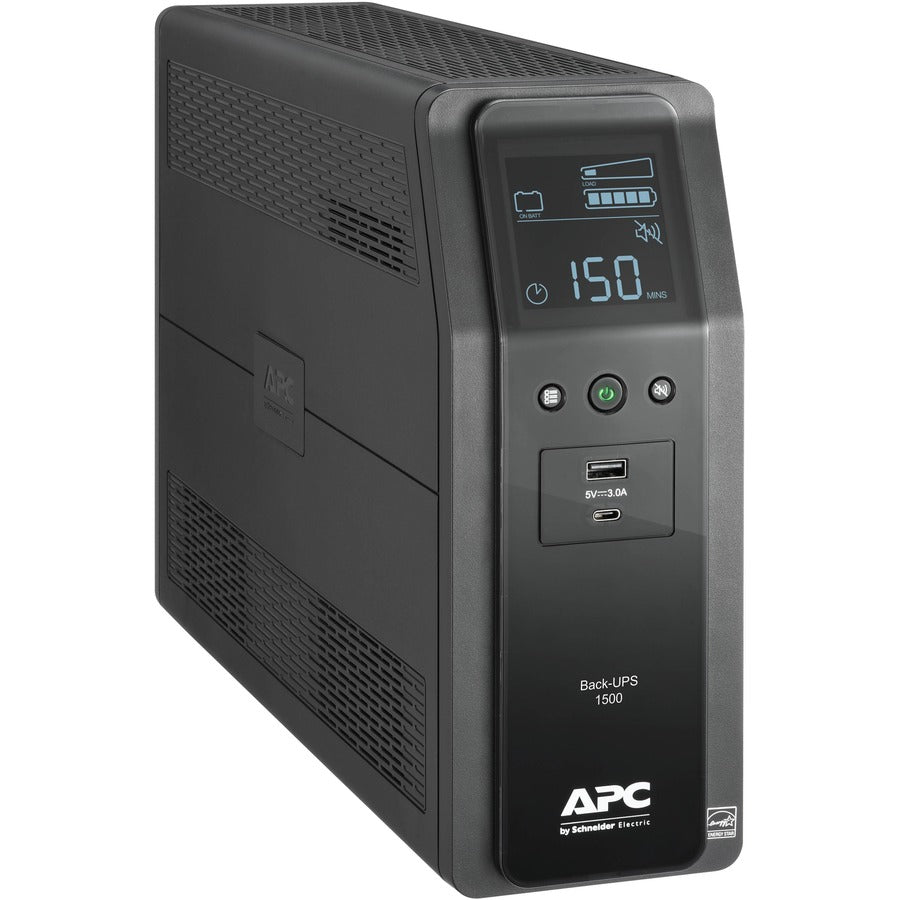

About this UPS
- Brand: Schneider Electric
- Product Type: Line-interactive UPS
- Manufacturer Part Number: BN1500M2-CA
- Input Voltage: 120 V AC
- Form Factor: Tower
- Plug/Connector Type: NEMA 5-15P
- Backup/Run Time (Half Load): 11.40 Minute
- Backup/Run Time (Full Load): 3.10 Minute
- Load Capacity: 1.50 kVA/900 W
Marketing Information:
Back-UPS Pro
High Performance Computer and Electronics UPS for Premium Power Protection
The Back-UPS Pro family offers guaranteed power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. These UPSs supply electronics with abundant battery backup during outages and stabilize unsafe voltage levels. They also provide power protection from damaging surges and spikes, and allow the use of management software so you get the most out of your UPS. Premium features of this family may include Automatic Voltage Regulation (AVR), an LCD display, Smart Outlets, energy saving functions that reduce electricity use, network manageability, Watchdog, or configurable outlets. Together with the rest of the Back-UPS Pro's standard features, they are the perfect choice to protect your data and keep your system available.
| PRODUCT SPECIFICATIONS | |
|---|---|
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 10 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 5 |
| Number of Surge-only Outlets | 5 |
| Dataline Protection |
|
| Transfer Time | 10 ms |
| EMI/RFI Noise Filter | Yes |
| Application/Usage |
|
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 88 V AC - 139 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Stepped Approximated Sine Wave |
| Surge Energy Rating | 1080 J |
| Alarm |
|
| Status Indicators |
LCD Graphics Display:
|
| USB (HID Compliant) Port | Yes |
| Number of Batteries | 1 |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3.10 Minute |
| Backup/Run Time (Half Load) | 11.40 Minute |
| Typical Battery Recharge Time | 16 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Storage Temperature | 5 °F (-15 °C) - 104 °F (40 °C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 9842.52 ft (3000000 mm) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Height | 10.24" (260 mm) |
| Width | 3.94" (100 mm) |
| Depth | 14.49" (368 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 25.13 lb (11400 g) |
| Package Contents |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Limited Warranty | 3 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.

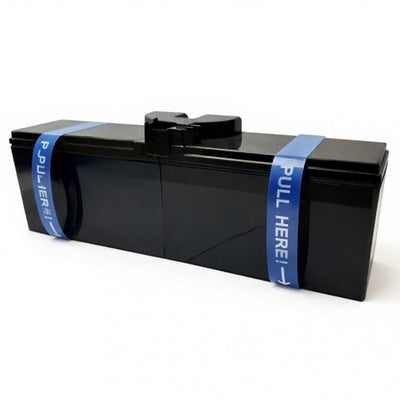

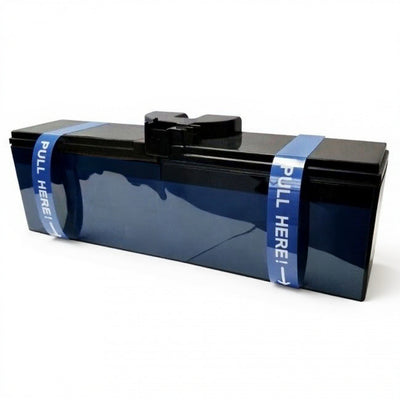

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
