About this UPS

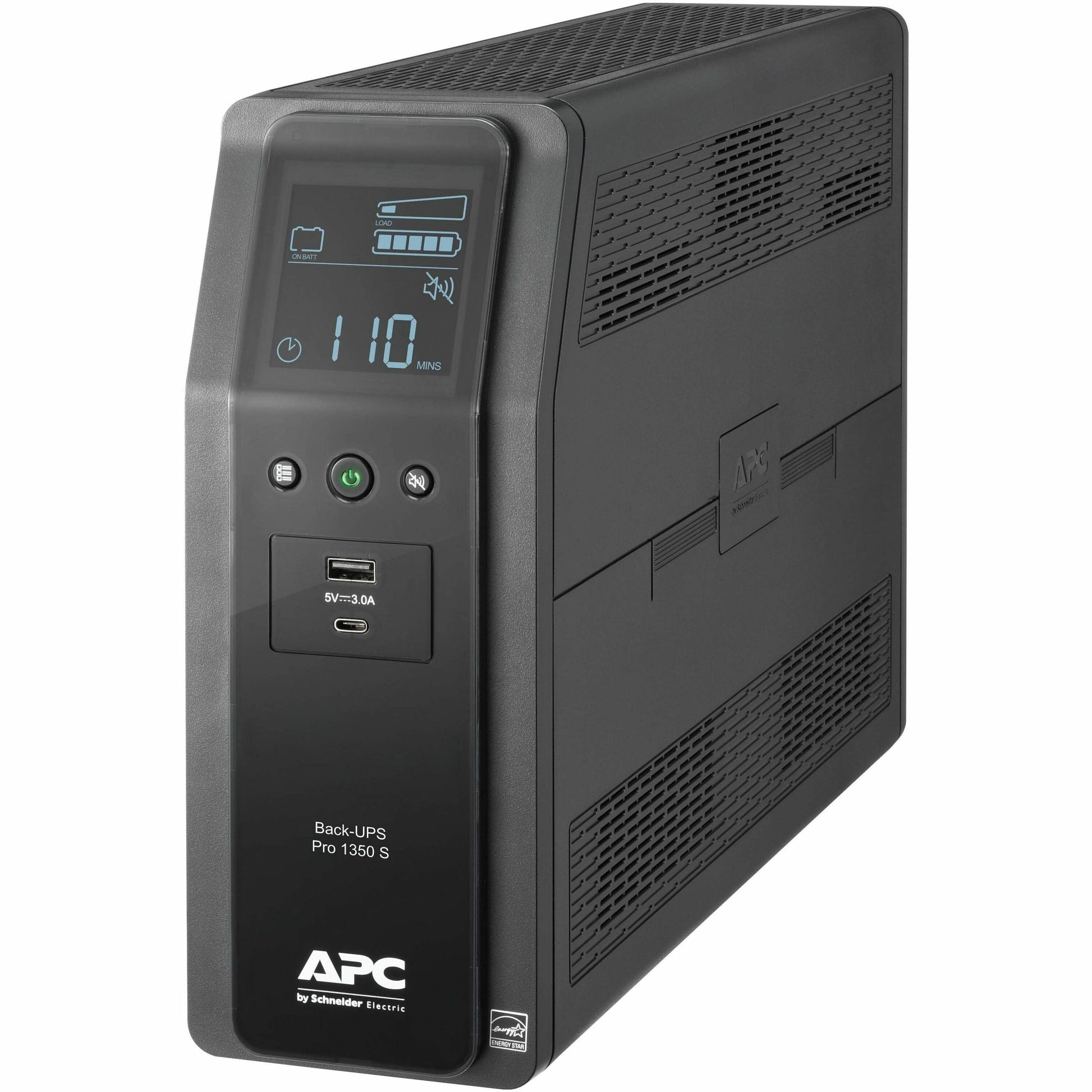

APC by Schneider Electric Back-UPS Pro BR BR1350MS 1350VA Tower UPS
| UPC | 0731304335399 |
| Tower - 16 Hour Recharge - 3.30 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - 4 x NEMA 5-15R Surge, 6 x NEMA 5-15R - 10 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | BR1350MS |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Back-UPS Pro |
| Product Series: | BR |
| Product Model: | BR1350MS |
| Product Name: | Back-UPS Pro BR BR1350MS 1350VA Tower UPS |
| Marketing Information: |
|
| Packaged Quantity: | 1 Each |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 10 |
| Cord Length: | 6 ft |
| Transfer Time: | 10 ms |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 1.35 kVA |
| Load Capacity (Watt): | 810 W |
| Input Voltage: | 120 V |
| Input Voltage Range: | 88 V AC - 147 V AC |
| Output Voltage: | 120 V AC |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 1080 J | Battery Information |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 3.30 Minute |
| Typical Battery Recharge Time: | 16 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 10.24" (260 mm) |
| Width: | 3.94" (100 mm) |
| Depth: | 14.49" (368 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 11.70 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | ENERGY STAR V2.0 (USA)|NOM|TUV C-US certified |
| Energy Star: | Yes |
| Green Premium: | Yes |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BR1350MS_ROHS_DECLARATION&p_FileName=BR1350MSKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465936670&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465936670&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712010_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712010_EN |
| California Proposition 65 Warning: | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Star URL: | https://www.energystar.gov/products/uninterruptible_power_supplies |
| Country of Origin: | Philippines |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | 3 years repair or replace |
| Directly Connected Equipment Guarantee: |
|
Technical specifications
Power
VA Rating
1350VA
Wattage
810W
Topology
Line-Interactive
Waveform
Simulated Sine Wave
Input
Input Voltage
120V
Output
Output Voltage
120V
Receptacles
4× NEMA 5-15R
Features
Form Factor
Tower
Connectivity
["USB""HTTP/Web Management"]
Condition
New
Dimensions
260 × 100 × 368 mm (10.24 × 3.94 × 14.49 in)
Weight
11.7kg
Manufacturer Warranty
3 years
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (405 W)
24.0 min
Full load (810 W)
3.3 min
W
Estimated runtime
—min
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Shipped across Canada
Shipped from our Canadian warehouse. See shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the full manufacturer warranty registered to you on receipt.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile — we'll spec the right UPS within one business hour.

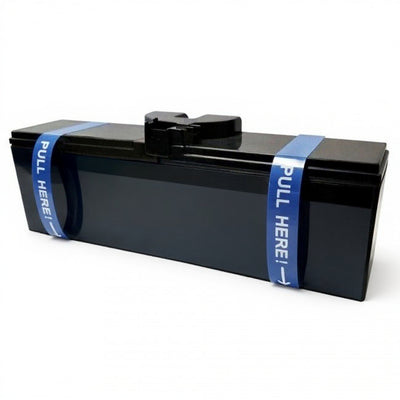

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Bookmark this page
before you need it.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
