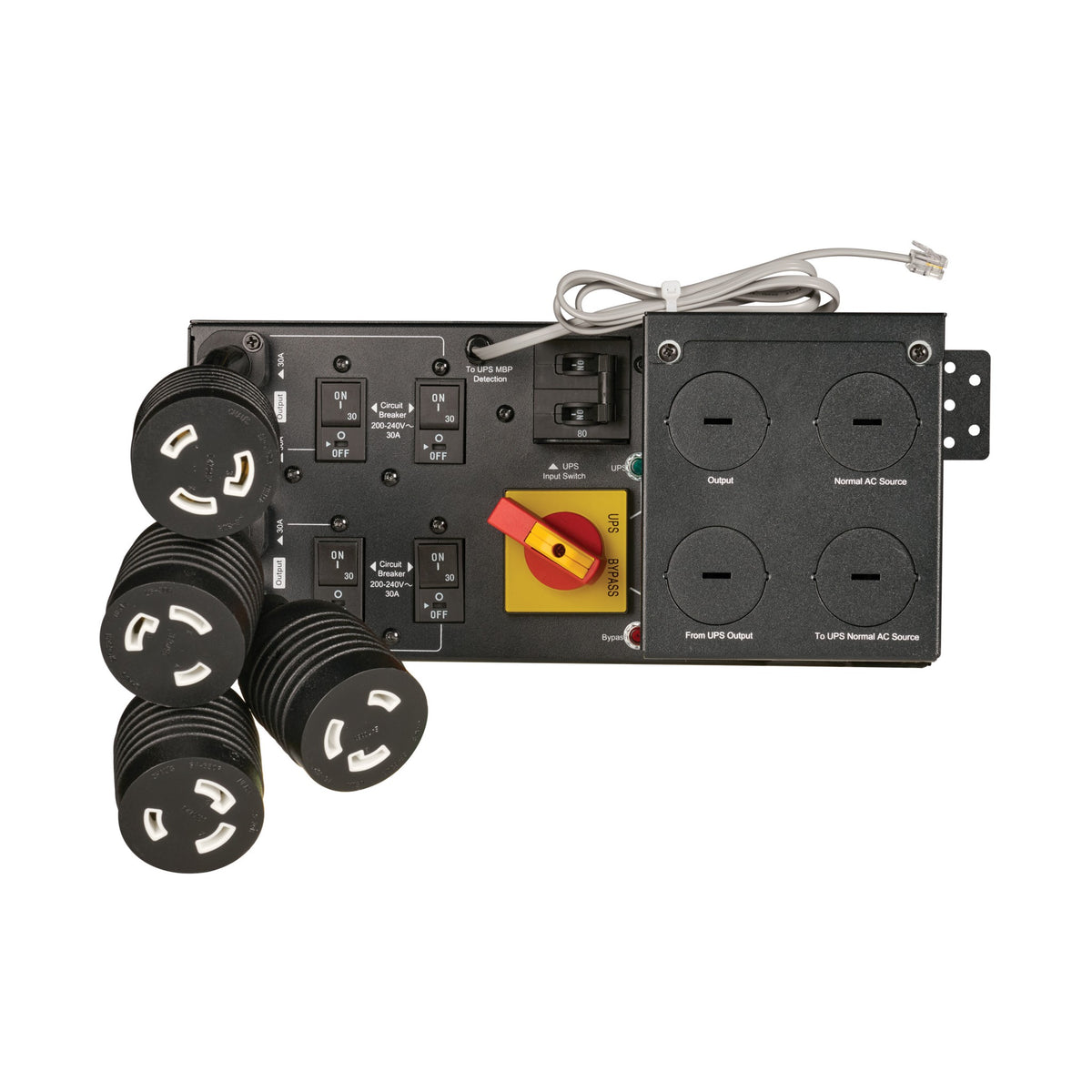

Eaton MBP11K208G2 9PX G2 Maintenance Bypass, 0U Rear Mount

The Eaton MBP11K208G2 is the Gen 2 maintenance bypass module for Eaton 9PX UPS systems from 8 to 11 kVA. Eaton's own documentation pairs it with those systems: the 9PX 8-11 kVA G2 wiring diagrams list an interconnect diagram for the UPS with this bypass, and the 11 kVA bundle pages ship it in the box. Input and output are hardwired, with four L6-30R receptacles for the protected load; the unit mounts at 0U on the rear of the rack, so it consumes no rack units. Conduits, fittings and cover plates ship in the box. With the bypass installed, the UPS can be rolled out for service or replacement while the load runs on utility power through the maintenance path. For 9PX G2 installations that support critical loads, this module is the planned way to service without downtime. Ships from Canada.
