Available on orderTripp Lite
· SMART2200RM2U
Tripp Lite SmartPro SMART2200RM2U 1950 VA / 1950 W Rack/Tower UPS
- Power
- 1950 VA / 1950 W
- Form
- Tower/Rack Convertible
- Outlets
- 6× NEMA 5-20R, 1× NEMA L5-20R
$2,314.99
About this UPS

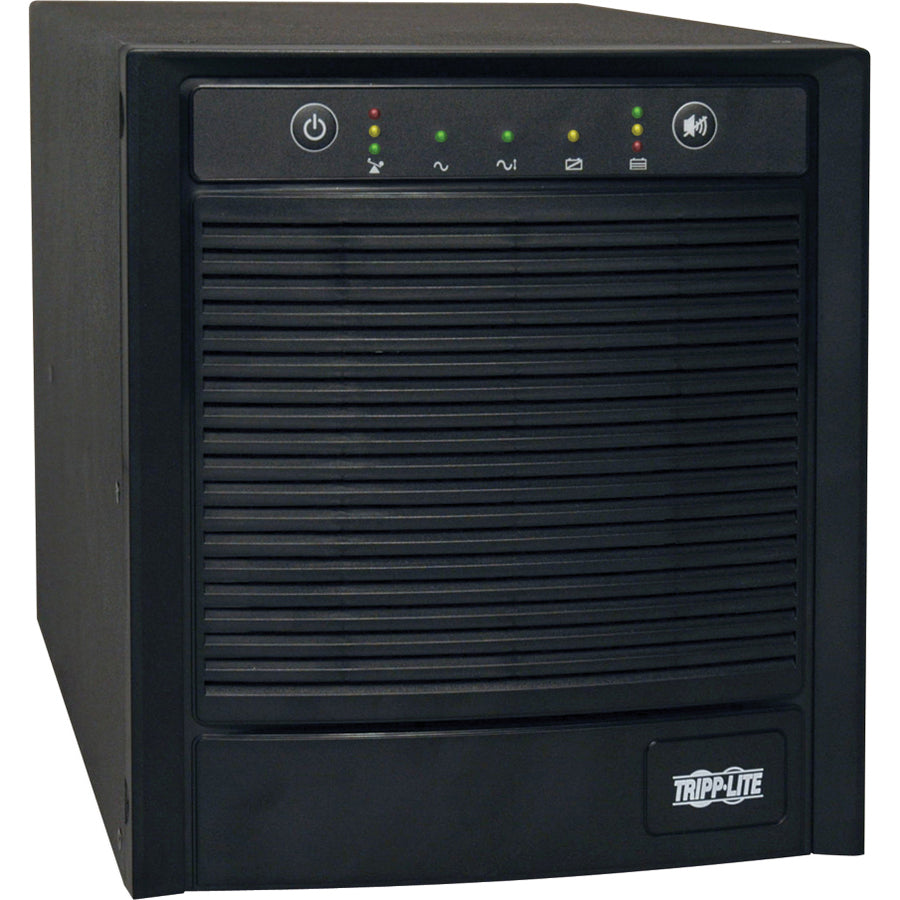

Tripp Lite SmartPro SMART2200SLT 2200VA Tower UPS
| UPC | 0037332125774 |
| 2200VA/1600W - 6 Minute Full Load - 6 x NEMA 5-15/20R, 1 x NEMA L5-20R | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SMART2200SLT |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartPro |
| Product Model: | SMART2200SLT |
| Product Name: | SmartPro SMART2200SLT 2200VA Tower UPS |
| Marketing Information: | 2200VA line-interactive tower UPS system for server, networking and telecommunications equipment. Upright tower form factor. Offers sine wave 120V nominal output in both AC and battery modes. Switches to battery-derived AC output during power failures and extreme voltage variations. Line-interactive automatic voltage regulation (AVR) provides voltage boost/cut during brownouts/overvoltages to maintain regulated 120V nominal output over an input voltage range of 83-145V. Includes NEMA 5-20P input plug and 7 UPS-supported (6 x 5-15/20R & 1 L5-20R) output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and slot for Network Management Card option. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all three network interfaces. PowerAlert UPS management software is available via free download. Three-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation, and battery warning LEDs. Audible alarm. Self-test. Field-replaceable, hot-swappable internal batteries. Attractive all-black color scheme. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-20P |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Emergency Power OFF: | Yes |
| Transfer Time: | 4 ms | Power Description |
| Load Capacity (VA): | 2.20 kVA |
| Load Capacity (Watt): | 1.60 kW |
| Input Voltage: | 120 V AC |
| Input Current: | 14.80 A |
| Output Voltage: | 120 V AC | Management |
| Network Management: | SNMP Manageable | Interfaces/Ports |
| Modem (RJ-11): | Yes |
| USB: | Yes | Battery Information |
| Backup/Run Time (Full Load): | 5 Minute |
| Backup/Run Time (Half Load): | 13 Minute |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 10.50" (266.70 mm) |
| Width: | 8.88" (225.43 mm) |
| Depth: | 12.50" (317.50 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 25.85 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Certifications & Standards: | Tested to UL1778 (USA), CSA C22.2 No. 107.3 (Canada), RoHS compliant, Class A (Emissions), NOM (Mexico) |
| Software Included: | PowerAlert Software |
| Country of Origin: | China | Warranty |
| Limited Warranty: | 3 Year |
Technical specifications
Power
VA Rating
2200VA
Wattage
1600W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-20P (T-slot 20A)
Input Phase
Single-phase
Output
Output Voltage
120V
Receptacles
6× NEMA 5-15/20R1× NEMA L5-20R
Features
Form Factor
Tower
Connectivity
USBRS-232 SerialSNMP (via Network Management Card)HTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
No
Condition
New
Dimensions
267 × 225 × 318 mm (10.50 × 8.88 × 12.50 in)
Weight
25.85kg
Certifications
CSA (Canada)NOM (Mexico)UL 1778
Manufacturer Warranty
3 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (800 W)
13 min
Full load (1600 W)
5 min
Available now
The manufacturer no longer makes the SMART2200SLT. These UPS are sold today; each card compares one with the discontinued model.
-
Compared with SMART2200SLT Spec SMART2200SLT Delta Capacity 2200 VA / 1600 W 2000 VA / 1800 W Topology Line-Interactive Online Double-Conversion Form Tower Tower/Rack Convertible, 2U Input plug NEMA 5-20P NEMA 5-20P Outlets 6 × NEMA 5-15/20R, 1 × NEMA L5-20R 8 × NEMA 5-15/20R, 1 × NEMA L5-20R Runtime, half load 13 min 11 min Differences
- Lower VA rating: 2000 VA instead of 2200 VA
- Online double-conversion, a step up from line-interactive
$2,499.99 -
Xtreme Power Conversion
Xtreme Power T91-2000V2 2000 VA / 1930 W Online UPS, 120 V
Compared with SMART2200SLT Spec SMART2200SLT Xtreme Power Capacity 2200 VA / 1600 W 2000 VA / 1930 W Topology Line-Interactive Online Double-Conversion Form Tower Tower Input plug NEMA 5-20P NEMA 5-20P Outlets 6 × NEMA 5-15/20R, 1 × NEMA L5-20R 1 × NEMA L5-20R, 8 × NEMA 5-20R Runtime, half load 13 min 18 min Differences
- Lower VA rating: 2000 VA instead of 2200 VA
- Online double-conversion, a step up from line-interactive
- Larger unit: 1930 W instead of 1600 W
$2,078.13 -
Xtreme Power Conversion
Xtreme Power P80-2200 2200 VA / 2000 W Line-Interactive UPS, 120 V
Compared with SMART2200SLT Spec SMART2200SLT Xtreme Power Capacity 2200 VA / 1600 W 2200 VA / 2000 W Topology Line-Interactive Line-Interactive Form Tower Tower/Rack Convertible, 2U Input plug NEMA 5-20P NEMA 5-20P Outlets 6 × NEMA 5-15/20R, 1 × NEMA L5-20R 8 × NEMA 5-15/20R Runtime, half load 13 min 12 min Differences
- No L5-20R outlet
- Larger unit: 2000 W instead of 1600 W
$2,137.53
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Discontinued by the manufacturer
Available now
The manufacturer no longer makes the SMART2200SLT. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
