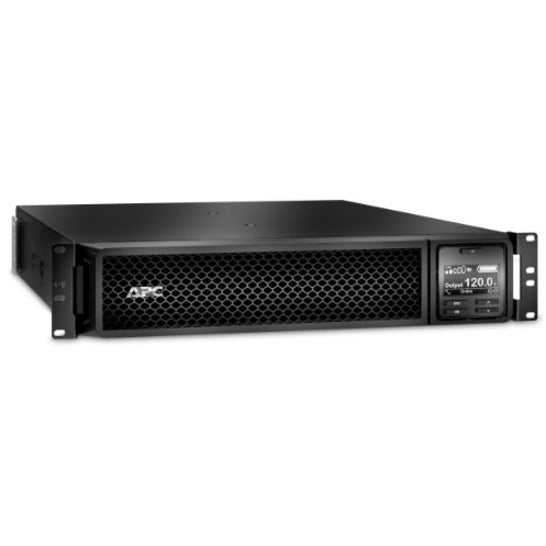

About this UPS
Product Features:
- Brand: APC by Schneider Electric
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: SRT2200RMXLA
- Input Voltage: 120 V
- Form Factor: Rack-mountable
- Rack Height: 2U
- Product Family: Smart-UPS
- Load Capacity: 2.20 kVA/1.80 kW
Marketing Information: Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20P |
| Receptacle Detail |
|
| Number of Battery & Surge Outlets | 7 |
| Cord Length | 6 ft (1.83 m) |
| Application/Usage |
|
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.80 kW |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Input Frequency | 70 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 340 J |
| Network Management | SmartSlot |
| Status Indicators | LCD Display |
| EPO Port | Yes |
| DC System Voltage | 72 V DC |
| Number of Batteries | 1 |
| Battery Chemistry | Lead Acid |
| Battery Energy | 1101.6 kJ |
| Battery Life | 5 Year |
| Typical Battery Recharge Time | 3 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Storage Temperature | -4 °F (-20 °C) - 122 °F (50 °C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Thermal Dissipation | 535 BTU/h |
| Color Family | Black |
| Product Color | Black |
| Height | 3.35" (85 mm) |
| Width | 17.01" (432 mm) |
| Depth | 22.99" (584 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Mounting Preference | Lower |
| Weight (Approximate) | 55.01 lb (24952.12 g) |
| Package Contents |
|
| Certifications & Standards | ENERGY STAR V2.0 (USA) |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Green Premium | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT2200RMXLA_ROHS_DECLARATION&p_FileName=SRT2200RMXLAKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458563181&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458563181&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612036_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612036_EN |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
Technical specifications
Power
VA Rating
2200VA
Wattage
1800W
Topology
Online Double-Conversion
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Output
Output Voltage
120V

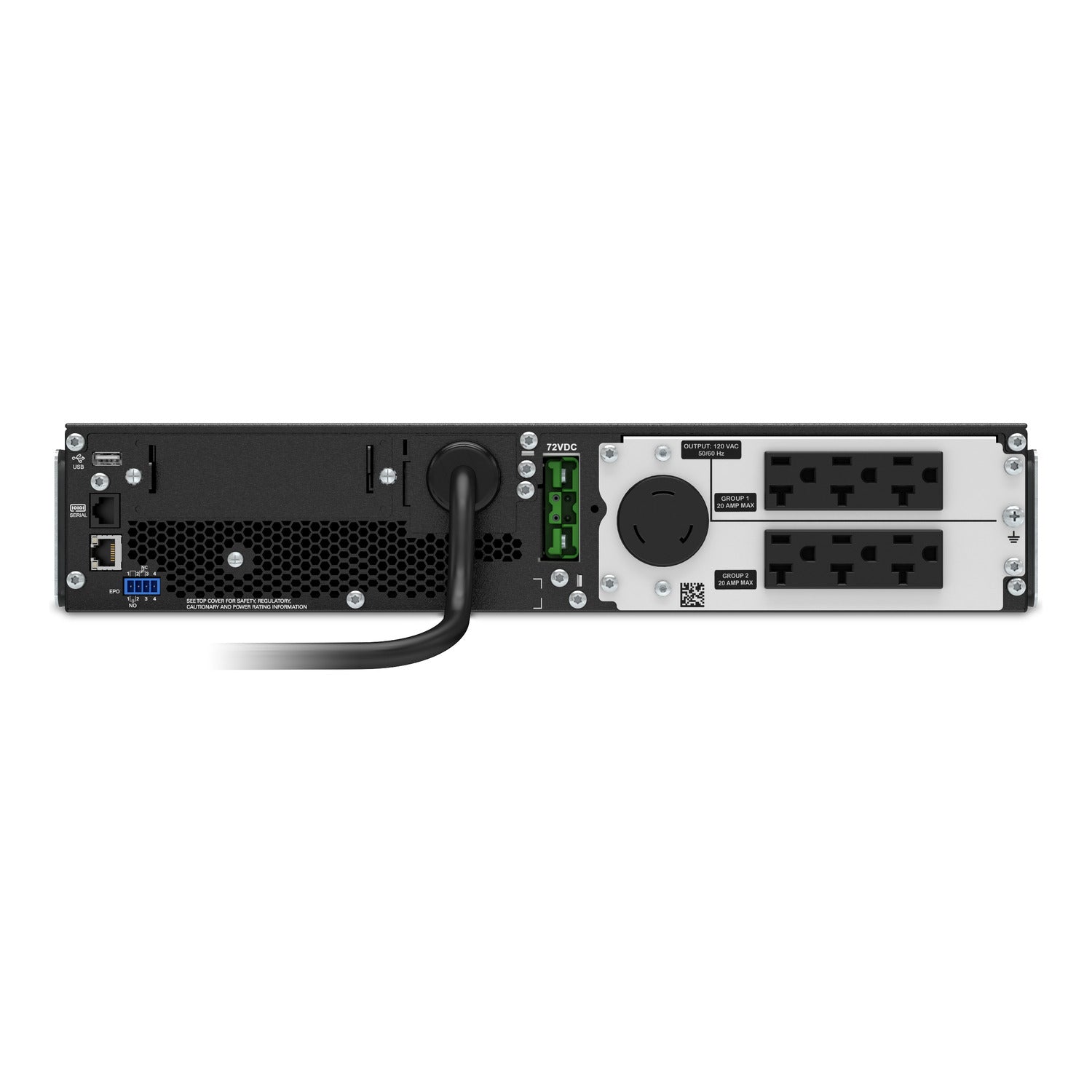

Receptacles
6× NEMA 5-20R1× NEMA L5-20R
Features
Form Factor
Rackmount 2U
Connectivity
["USB""SNMP (via Network Management Card)""HTTP/Web Management""Smart Slot (expansion bay)"]
Extended Runtime Capable
true
Condition
New
Operating Temperature
0 to 40 °C (32 to 104 °F)
Dimensions
85 × 432 × 584 mm (3.35 × 17.01 × 22.99 in)
Weight
24.95kg
Manufacturer Warranty
3 years
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (900 W)
16.0 min
Approximate — based on a single manufacturer anchor point. Estimates are roughest near very light or very heavy loads.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
W
Estimated runtime
—min
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Shipped across Canada
Shipped from our Canadian warehouse. See shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the full manufacturer warranty registered to you on receipt.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile — we'll spec the right UPS within one business hour.

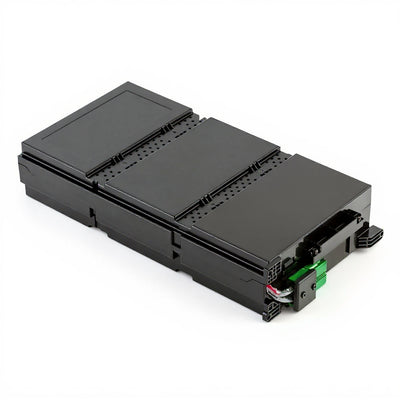

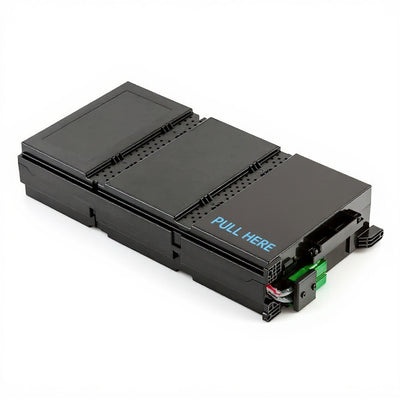

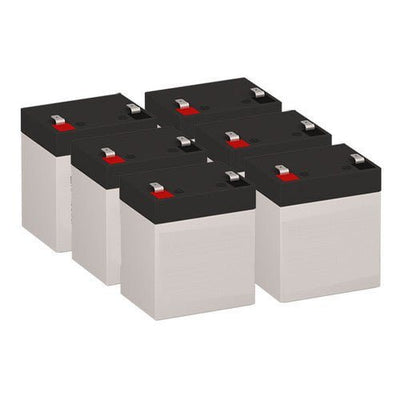

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Bookmark this page
before you need it.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
