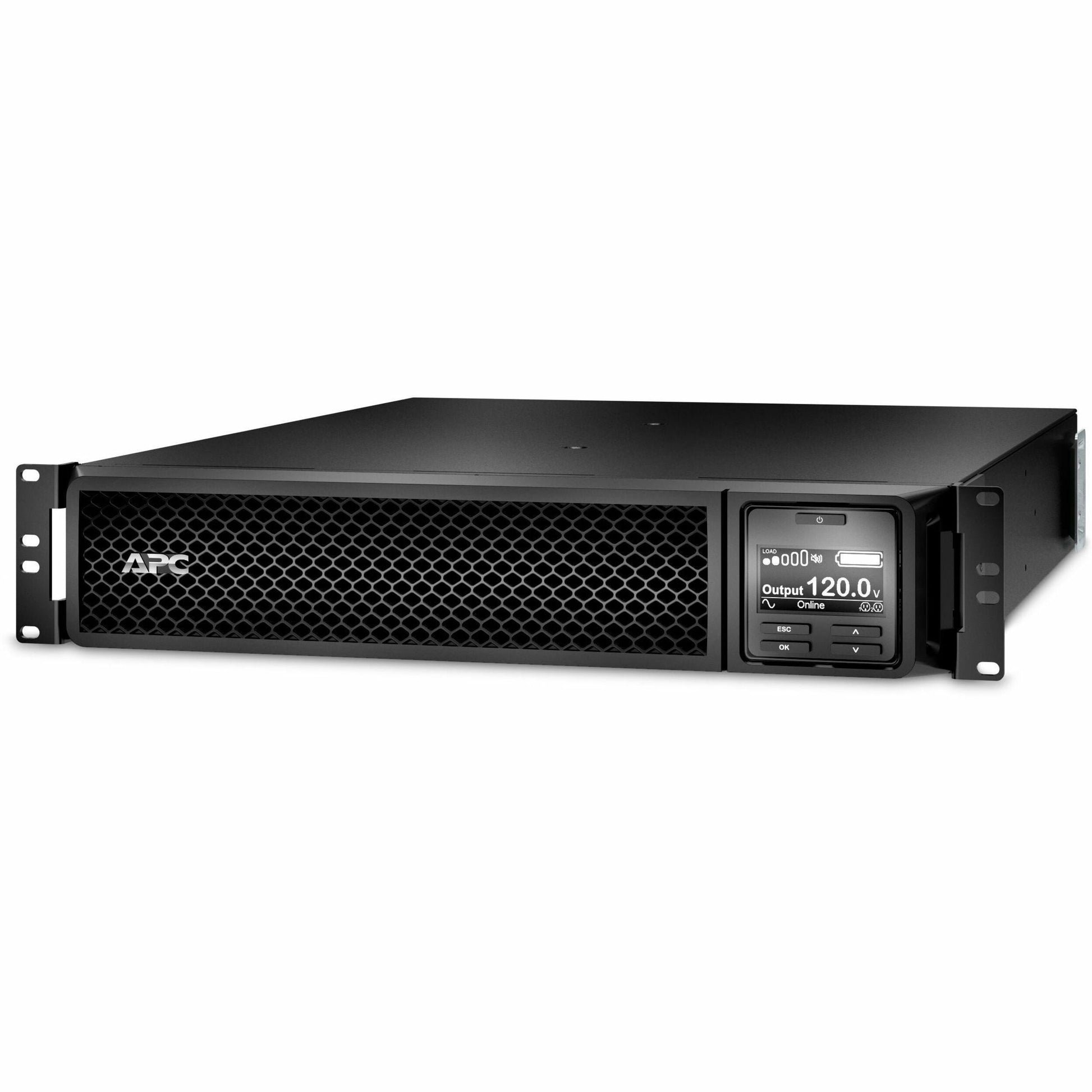

APC Smart-UPS SRT SRT2200RMXLA-NC 2200 VA / 1800 W Rack Online UPS
APC Smart-UPS SRT SRT2200RMXLA-NC 2200 VA / 1800 W Rack Online UPS
Regular price
$4,100.99 CAD
Regular price
Sale price
$4,100.99 CAD
In stock
Shipping calculated at checkout.
Quantity
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
About this UPS
APC by Schneider Electric Smart-UPS SRT 2200VA RM 120V Network Card
| UPC | 0731304325154 |
| 2U Rack-mountable - 3 Hour Recharge - 120 V Input - 120 V AC Output - Sine Wave - 1 x NEMA L5-20R, 6 x NEMA 5-20R - 7 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SRT2200RMXLA-NC |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Name: | Smart-UPS SRT 2200VA RM 120V Network Card |
| Marketing Information: | This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-20P |
| Receptacle Type: | NEMA 5-20P |
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 7 |
| Cord Length: | 6 ft | Power Description |
| Load Capacity (VA): | 2.20 kVA |
| Load Capacity (Watt): | 1.80 kW |
| Input Voltage: | 120 V |
| Output Voltage: | 120 V AC |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 340 J | Battery Information |
| Battery Chemistry: | Lead Acid |
| Typical Battery Recharge Time: | 3 Hour | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 3.35" (85 mm) |
| Width: | 17.01" (432 mm) |
| Depth: | 22.99" (584 mm) |
| Rack Height: | 2U |
| Form Factor: | Rack-mountable |
| Mounting Preference: | Lower |
| Weight (Approximate): | 25 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | ENERGY STAR V2.0 (USA) |
| Energy Star: | Yes |
| Green Premium: | Yes |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT2200RMXLA-NC_ROHS_DECLARATION&p_FileName=SRT2200RMXLA-NCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458563182&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458563182&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| California Proposition 65 Warning: | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Star URL: | https://www.energystar.gov/products/uninterruptible_power_supplies |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | 3 years repair or replace (excluding battery) and 2 years for battery |
Technical specifications
Power
VA Rating
2200VA
Wattage
1800W
Topology
Online Double-Conversion
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-20P (T-slot 20A)
Input Phase
Single-phase
Output
Output Voltage
120V
Receptacles
1× NEMA L5-20R6× NEMA 5-20R6× NEMA 5-15R
Features
Form Factor
Rackmount 2U
Rack Units
2U
Connectivity
USBSNMP (via Network Management Card)HTTP/Web Management
Network Card Installed
Yes
Extended Runtime Capable
Yes
Condition
New
Dimensions
85 × 432 × 584 mm (3.35 × 17.01 × 22.99 in)
Weight
25.0kg
Manufacturer Warranty
3 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (900 W)
10 min
Full load (1800 W)
3.3 min
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Compare with alternatives
The SRT2200RMXLA-NC side by side with UPS from other makers.
-
Compared with SRT2200RMXLA-NC Spec SRT2200RMXLA-NC Delta Capacity 2200 VA / 1800 W 2000 VA / 1800 W Topology Online Double-Conversion Online Double-Conversion Form Rackmount 2U, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-20P NEMA 5-20P Outlets 1 × NEMA L5-20R, 6 × NEMA 5-20R, 6 × NEMA 5-15R 8 × NEMA 5-15/20R, 1 × NEMA L5-20R Runtime, half load 10 min 11 min Differences
- 9 battery-backed outlets instead of 13
- Network card not included
- Lower VA rating: 2000 VA instead of 2200 VA
$2,499.99 -
Xtreme Power Conversion
Xtreme Power J90-2KLiD 2000 VA / 1800 W Lithium-Ion UPS, 120 V
Compared with SRT2200RMXLA-NC Spec SRT2200RMXLA-NC Xtreme Power Capacity 2200 VA / 1800 W 2000 VA / 1800 W Topology Online Double-Conversion Online Double-Conversion Form Rackmount 2U, 2U Rackmount 1U, 1U Input plug NEMA 5-20P NEMA 5-20P Outlets 1 × NEMA L5-20R, 6 × NEMA 5-20R, 6 × NEMA 5-15R 4 × NEMA 5-15/20R Runtime, half load 10 min 12 min Differences
- 4 battery-backed outlets instead of 13
- No L5-20R outlet
- Network card not included
- Lower VA rating: 2000 VA instead of 2200 VA
$5,049.77 -
Xtreme Power Conversion
Xtreme Power P91-2000 2000 VA / 1930 W Online UPS, 120 V
Compared with SRT2200RMXLA-NC Spec SRT2200RMXLA-NC Xtreme Power Capacity 2200 VA / 1800 W 2000 VA / 1930 W Topology Online Double-Conversion Online Double-Conversion Form Rackmount 2U, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-20P NEMA 5-20P Outlets 1 × NEMA L5-20R, 6 × NEMA 5-20R, 6 × NEMA 5-15R 8 × NEMA 5-15/20R Runtime, half load 10 min 10 min Differences
- 8 battery-backed outlets instead of 13
- No L5-20R outlet
- Network card not included
- Lower VA rating: 2000 VA instead of 2200 VA
$2,399.99
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Works with this UPS
Only accessories the manufacturer lists for this model.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
APC · Compatible replacement
Replacement Battery for APC UPS 911-1086A
$287.49
Shop →
APC · Compatible replacement
APC RBC141 Battery Cartridge
$290.00
Shop →
APC · Compatible replacement

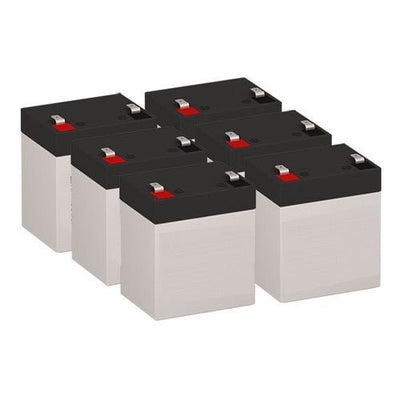

APC Smart-UPS SRT2200RMXLA-NC UPS Battery Set (Replacement)
$258.74
Shop →
APC · Compatible replacement
APC 911-1086A Replacement Battery Set
$258.74
Shop →
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
