Tripp Lite

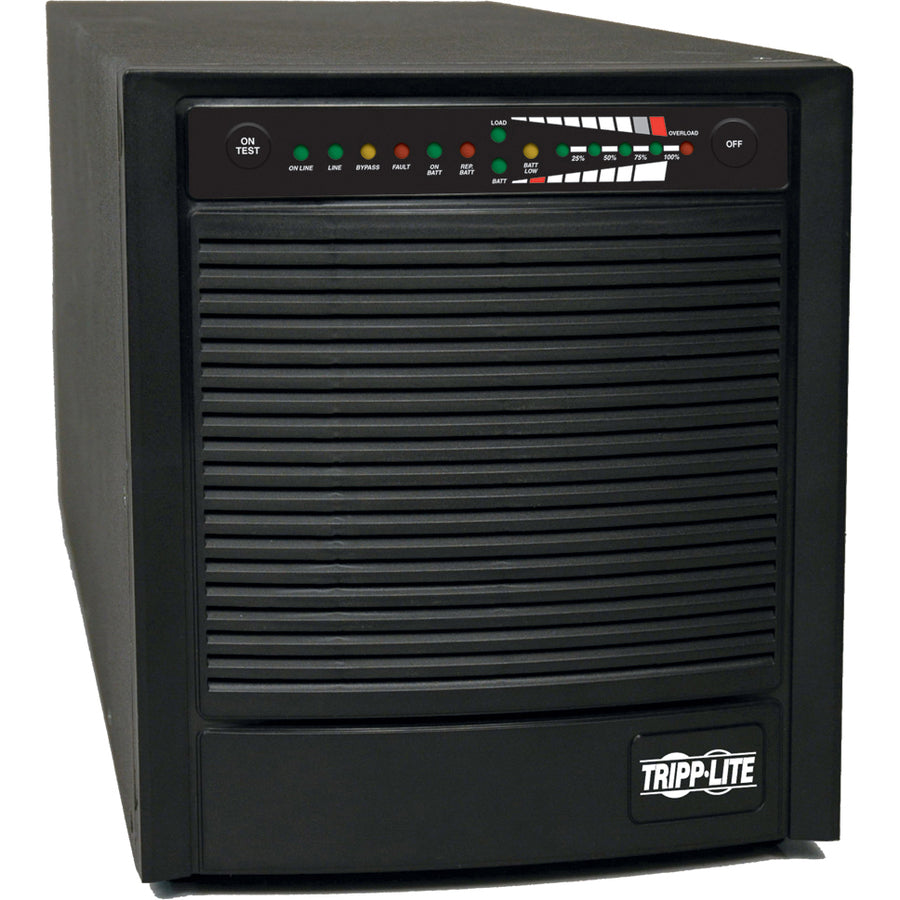

Tripp Lite SmartOnline SU3000XL 3000 VA / 2400 W Tower Online UPS

Tripp Lite SmartOnline SU3000XL 3000 VA / 2400 W Tower Online UPS

Discontinued by the manufacturerManufacturer’s current model: SU3000XLCD. This listing is the earlier model.
$4,027.00 CAD
$4,027.00 CAD
Sale Sold out

Available on order

Shipping calculated at checkout.

Available on order

Request a configured quoteCheck this UPS for your load

Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.

Buying 5 or more? Request volume pricing →

  • Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
  • New in box: manufacturer warranty applies
  • Have a purchase order? Request a quote.

Questions? 438-881-3363 · Mon to Fri

Works with this UPS
Tripp Lite BP72V18-2US Battery Pack 72 VTripp Lite BP72V18-2US Battery Pack 72 V$1,908.99
View details ↓Bundle & quote in the sizing tool →
View full details
Product details

About this UPS

Product Features:
  • Brand: Tripp Lite by Eaton
  • Product Type: Double Conversion Online UPS
  • Manufacturer Part Number: SU3000XL
  • Input Voltage: 110 V AC,120 V AC
  • Form Factor: Tower
  • Waveform Type: Sine Wave
  • Plug/Connector Type: NEMA L5-30P
  • Product Family: SmartOnline
  • Backup/Run Time (Half Load): 17 Minute
  • Backup/Run Time (Full Load): 6 Minute
  • Load Capacity: 3 kVA/2.40 kW

    • Marketing Information: Tripp Lite's SmartOnline SU3000XL on-line, double conversion UPS protects critical server, networking or telecommunications equipment from blackouts, brownouts, voltage fluctuations and surges in an attractive all-black tower format. Large capacity 3kVA / 2400 watt UPS continuously converts incoming AC-to-DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Removes harmonic distortion, fast electrical impulses, frequency fluctuations and other hard-to-solve power problems not addressed by other UPS systems. True sine wave output and zero transfer time offers guaranteed compatibility with all equipment types. Includes 7 UPS supported outlets with two individually switchable load banks that can be independently controlled via the UPS's software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment. Battery support can be extended with the addition of multiple external battery packs (part# BP72V9). Includes slot for internal SNMP/web card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data. Includes Tripp Lite's PowerAlert UPS Power Management Software. Compatible with Tripp Lite's WatchDog Service Monitoring/Rebooting Software.
Product Specifications:
Product Features:
  • Manufacturer:Eaton Corporation
  • Manufacturer Part Number:SU3000XL
  • Manufacturer Website Address:https://tripplite.eaton.com/
  • Brand Name:Tripp Lite by Eaton
  • Product Line:SmartOnline
  • Product Name:SmartOnline SU3000XL UPS

    • Marketing Information:Tripp Lite's SmartOnline SU3000XL on-line, double conversion UPS protects critical server, networking or telecommunications equipment from blackouts, brownouts, voltage fluctuations and surges in an attractive all-black tower format. Large capacity 3kVA / 2400 watt UPS continuously converts incoming AC-to-DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Removes harmonic distortion, fast electrical impulses, frequency fluctuations and other hard-to-solve power problems not addressed by other UPS systems. True sine wave output and zero transfer time offers guaranteed compatibility with all equipment types. Includes 7 UPS supported outlets with two individually switchable load banks that can be independently controlled via the UPS's software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment. Battery support can be extended with the addition of multiple external battery packs (part# BP72V9). Includes slot for internal SNMP/web card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data. Includes Tripp Lite's PowerAlert UPS Power Management Software. Compatible with Tripp Lite's WatchDog Service Monitoring/Rebooting Software.
    PRODUCT SPECIFICATIONS
    Plug/Connector Type NEMA L5-30P
    Receptacle Type
    • NEMA L5-30R
    • NEMA 5-15R
    • NEMA 5-15/20R
    Receptacle Detail
    • 1 x NEMA L5-30R
    • 6 x NEMA 5-15R
    • 4 x NEMA 5-15/20R
    Emergency Power OFF Optional
    Cord Length 10 ft (3.05 m)
    Transfer Time 0 ns
    Load Capacity (VA) 3 kVA
    Load Capacity (Watt) 2.40 kW
    Input Voltage
    • 110 V AC
    • 120 V AC
    Output Voltage
    • 110 V AC
    • 120 V AC
    Waveform Type Sine Wave
    Network Management SNMP Manageable
    Alarm
    • On Battery
    • Low Battery
    • Overload
    • UPS Fault
    Status Indicators 14 STATUS LEDs offer LINE POWER, ONLINE, BYPASS, ON BATTERY, OVERLOAD, BATTERY LOW, REPLACE BATTERY and FAULT status information. Also includes 4 LED meters for LOAD LEVEL / BATTERY LEVEL display (Battery level readout requires pressing "test" key)
    Total Number of Expansion Slots 1
    Battery Chemistry Lead Acid
    Backup/Run Time (Full Load) 6 Minute
    Backup/Run Time (Half Load) 17 Minute
    Battery Life 6 Year
    Typical Battery Recharge Time 4 Hour
    Maximum Operating Temperature 104 °F (40 °C)
    Height 14.75" (374.65 mm)
    Width 5.50" (139.70 mm)
    Depth 16.75" (425.45 mm)
    Form Factor Tower
    Weight (Approximate) 66 lb (29937.10 g)
    Package Contents
    • SmartOnline SU3000XL UPS
    • SU3000XL Online, Double-Conversion UPS System
    • PowerAlert Software and cabling
    • Instruction manual with warranty information
    Additional Information
      • True on-line, double conversion UPS provides pure, sine wave AC output
      • Maintains continuous operation through blackouts, brownouts, voltage fluctuations and surges with zero transfer time
      • Removes harmonic distortion, electrical impulses, frequency variations and other hard to solve power problems
      • Accepts input voltages between 80 and 138 (65 to 138 at loads under 70%), regulating output to 120V AC +/-2%
      • 3000VA / 2400 watt output capacity with 7 total outlets (6 NEMA 5-15/20R, 1 NEMA L5-30R)
      • Two built-in individually switchable load banks can be controlled via the UPS's software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment (2 banks of 3 outlets)
      • Standard internal battery set provides 17 minutes runtime at half load
      • Expandable runtime with multiple external battery packs (part# BP72V9)
      • Attractive all-black upright tower format
      • DB9 serial network interface supports RS-232 and contact closure messaging
      • Slot for optional SNMP/web card (part# SNMPWEBCARD)
      • Included PowerAlert UPS Power Management Software and cabling provide monitoring of in-depth site power conditions, full UPS status and fault warnings, output load level and load bank power control
      • Compatible with Tripp Lite's WatchDog Service Monitoring/Rebooting Software (part# WATCHDOGSW)
      • Diagnostic LEDs
      • 2 year manufacturer's product warranty
      • 250,000 Ultimate Lifetime Insurance (USA & Canada only)
    Certifications & Standards UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
    Country of Origin China
    Limited Warranty 2 Year
    Specifications

    Technical specifications

    Power
    VA Rating
    3000VA
    Wattage
    2400W
    Topology
    Online Double-Conversion
    Waveform
    Pure Sine Wave
    Input
    Input Voltage
    120V
    Input Plug
    NEMA L5-30P (locking 30A)
    Input Phase
    Single-phase
    Output
    Output Voltage
    120V
    Receptacles
    4× NEMA 5-15R4× NEMA 5-15/20R1× NEMA L5-30R
    Features
    Form Factor
    Tower
    Connectivity
    RS-232 SerialSNMP (via Network Management Card)HTTP/Web Management
    Network Card Installed
    No
    Extended Runtime Capable
    Yes
    Condition
    New
    Operating Temperature
    0 to 40 °C (32 to 104 °F)
    Dimensions
    375 × 140 × 425 mm (14.75 × 5.50 × 16.75 in)
    Weight
    29.94kg
    Certifications
    CSA (Canada)NOM (Mexico)UL 1778
    Manufacturer Warranty
    2 years
    Manufacturer datasheet (PDF) ↗
    Setup checklist: after you receive your UPS →
    Backup runtime

    How long it'll keep your equipment up.

    Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.

    Half load (1200 W) 14 min
    Full load (2400 W) 5 min

    Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →

    W
    Estimated runtime …min

    Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.

    Discontinued by the manufacturer

    Available now

    The manufacturer no longer makes the SU3000XL. These UPS are sold today; each card compares one with the discontinued model.

    • Delta

      Delta UPS302R1RT0B0B 3000 VA / 2700 W Rack/Tower Online UPS

      SU3000XLDelta
      Capacity 3000 VA / 2400 W 3000 VA / 2700 W
      Topology Online Double-Conversion Online Double-Conversion
      Form Tower Tower/Rack Convertible, 2U
      Input plug NEMA L5-30P NEMA L5-30P
      Outlets 4 × NEMA 5-15R, 4 × NEMA 5-15/20R, 1 × NEMA L5-30R 8 × NEMA 5-15/20R, 1 × NEMA L5-30R
      Runtime, half load 14 min 11 min

      Same class on every point compared.

      $2,981.99
    • Xtreme Power Conversion

      Xtreme Power T91-3000 3000 VA / 2880 W Online UPS, 120 V

      SU3000XLXtreme Power
      Capacity 3000 VA / 2400 W 3000 VA / 2880 W
      Topology Online Double-Conversion Online Double-Conversion
      Form Tower Tower
      Input plug NEMA L5-30P NEMA L5-30P
      Outlets 4 × NEMA 5-15R, 4 × NEMA 5-15/20R, 1 × NEMA L5-30R 1 × NEMA L5-30R, 8 × NEMA 5-20R
      Runtime, half load 14 min 10 min

      Differences

      • Larger unit: 2880 W instead of 2400 W
      $3,122.17
    • Xtreme Power Conversion

      Xtreme Power P91-3000 3000 VA / 2880 W Online UPS, 120 V

      SU3000XLXtreme Power
      Capacity 3000 VA / 2400 W 3000 VA / 2880 W
      Topology Online Double-Conversion Online Double-Conversion
      Form Tower Tower/Rack Convertible, 2U
      Input plug NEMA L5-30P NEMA L5-30P
      Outlets 4 × NEMA 5-15R, 4 × NEMA 5-15/20R, 1 × NEMA L5-30R 1 × NEMA L5-30R, 6 × NEMA 5-15/20R
      Runtime, half load 14 min 10 min

      Differences

      • 7 battery-backed outlets instead of 9
      • Larger unit: 2880 W instead of 2400 W
      $3,077.00

    Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.

    Add-ons

    Works with this UPS

    Only accessories the manufacturer lists for this model.

    Tripp Lite BP72V18-2US Battery Pack 72 V
    Tripp Lite
    Tripp Lite BP72V18-2US Battery Pack 72 V
    Adds battery runtime to this UPS
    BP72V18-2US
    $1,908.99
    Shipped across Canada
    Shipping is available across Canada. See the shipping policy for rates and timing.
    Manufacturer-backed
    New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
    In business since 2012
    UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
    Sizing & install help
    Email your load profile and we'll spec the right UPS within one business day.
    When the batteries fail

    Replacement batteries that fit this exact UPS

    A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.

    Bookmark this page before you need it.

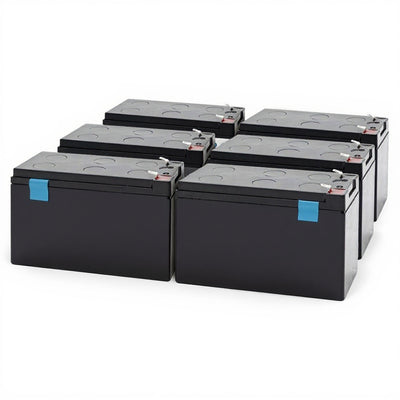

    Tripp Lite SU3000XL Replacement Battery Kit
    Tripp Lite · Compatible replacement
    Tripp Lite SU3000XL Replacement Battery Kit
    Voltage72V
    Capacity9.0Ah
    $228.99 Shop →

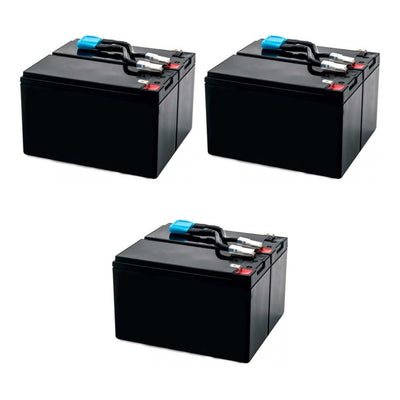

    Tripp Lite SU3000XL Assembled Replacement Battery Pack
    Tripp Lite · Compatible replacement
    Tripp Lite SU3000XL Assembled Replacement Battery Pack
    Voltage72V
    Capacity9.0Ah
    $344.99 Shop →
    Frequently asked

    Questions before you buy

    How do I know this UPS will run my equipment?

    Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.

    What's covered by the warranty, and how long does it last?

    New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.

    Can I extend runtime beyond what's shown above?

    Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
