Tripp Lite series SmartOnline SU3000XLCD 3000VA Tower UPS - SU3000XLCD
Tripp Lite series SmartOnline SU3000XLCD 3000VA Tower UPS - SU3000XLCD
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS

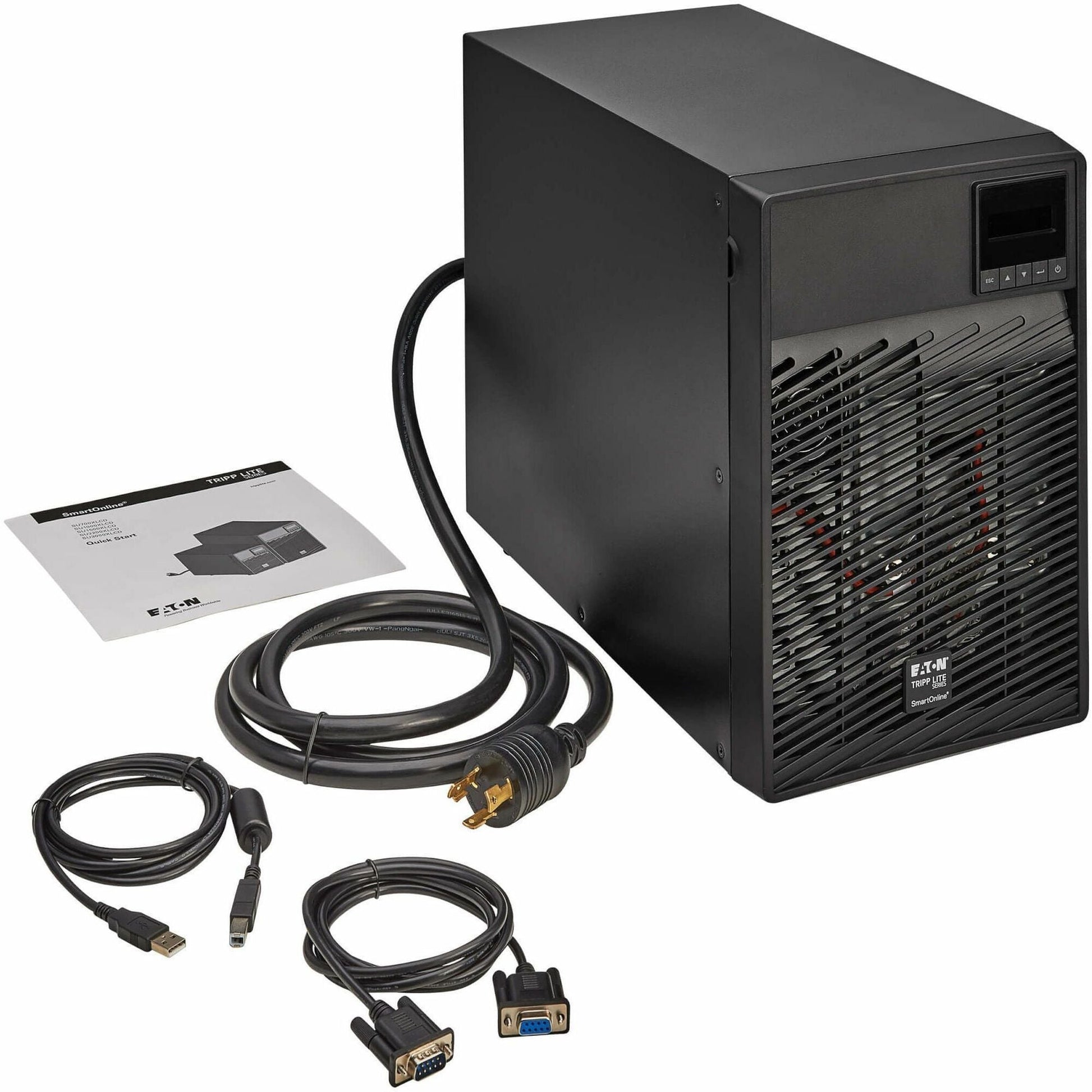

Tripp Lite series SmartOnline SU3000XLCD 3000VA Tower UPS
| UPC | 0037332158871 |
| Tower - 3 Hour Recharge - 5.70 Minute Stand-by - 120 V AC Input - 100 V AC, 110 V AC, 120 V AC Output - Single Phase - Pure Sine Wave - Serial Port - USB - LCD Display - 4 x NEMA 5-20R, 1 x NEMA L5-30R | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SU3000XLCD |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite series |
| Product Line: | SmartOnline |
| Product Model: | SU3000XLCD |
| Product Name: | SmartOnline SU3000XLCD 3000VA Tower UPS |
| Marketing Information: |
Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation isolates sensitive equipment from power problems on the AC line. The SmartOnline ® SU3000XLCD provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential. Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages Optional Network Management Card Allows Remote Access 24/7 NEMA Outlets Protect Your Connected Components Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better Clear LCD Interface Keeps You Informed at a Glance Advanced Communications Ports Allow for Automatic Saves and Shutdowns |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Overload Protection: | Yes |
| Bypass Switch: | Automatic |
| Emergency Power OFF: | Yes |
| Transfer Time: | 0 ns |
| Phase: | Single Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 3 kVA |
| Load Capacity (Watt): | 2.70 kW |
| Input Voltage: | 120 V AC |
| Output Voltage: |
|
| Output Frequency: | 60 Hz |
| Waveform Type: | Pure Sine Wave |
| Surge Energy Rating: | 190 J |
| Input Power Factor: | 0.99 |
| Output Power Factor: | 0.9 | Display & Graphics |
| Display: | LCD | Management |
| Network Management: | SNMP |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: | Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options | Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes | Battery Information |
| DC System Voltage: | 96 V DC |
| Battery Characteristics: | Valve-regulated |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 5.70 Minute |
| Backup/Run Time (Half Load): | 16.70 Minute |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Swappable: | Yes |
| Replaceable Battery: | Yes | Environmental Conditions |
| Minimum Operating Temperature: | 32 °F (0 °C) |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | 32 °F (0 °C) - 104 °F (40 °C) |
| Maximum Operating Elevation: | 9842.52 ft (3000000 mm) |
| Sound Emission: | 52 dB | Physical Characteristics |
| Height: | 13.63" (346.20 mm) |
| Width: | 8.43" (214.12 mm) |
| Depth: | 16.23" (412.24 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 33.40 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: |
|
| Software Included: | PowerAlert Software |
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
