Available on orderTripp Lite
· SMX2200XLRT2U

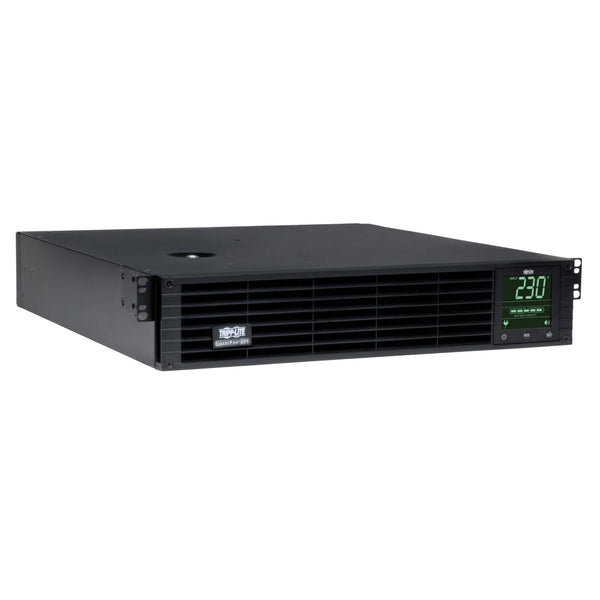

Tripp Lite SmartPro SMX2200XLRT2U 2200 VA / 1920 W Rack/Tower UPS 230 V
- Power
- 2200 VA / 1920 W
- Form
- Rackmount 2U
- Outlets
- 8× IEC 60320 C13
$2,379.99
About this UPS
Product Features:
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMARTINT2200VS
- Input Voltage: 220 V AC
- Form Factor: Tower
- Waveform Type: Pulse-width Modulated Sine Wave
- Plug/Connector Type: IEC 320-C20
- Product Family: SmartPro
- Backup/Run Time (Half Load): 19 Minute
- Backup/Run Time (Full Load): 7 Minute
- Load Capacity: 2.20 kVA/1.60 kW
Marketing Information:

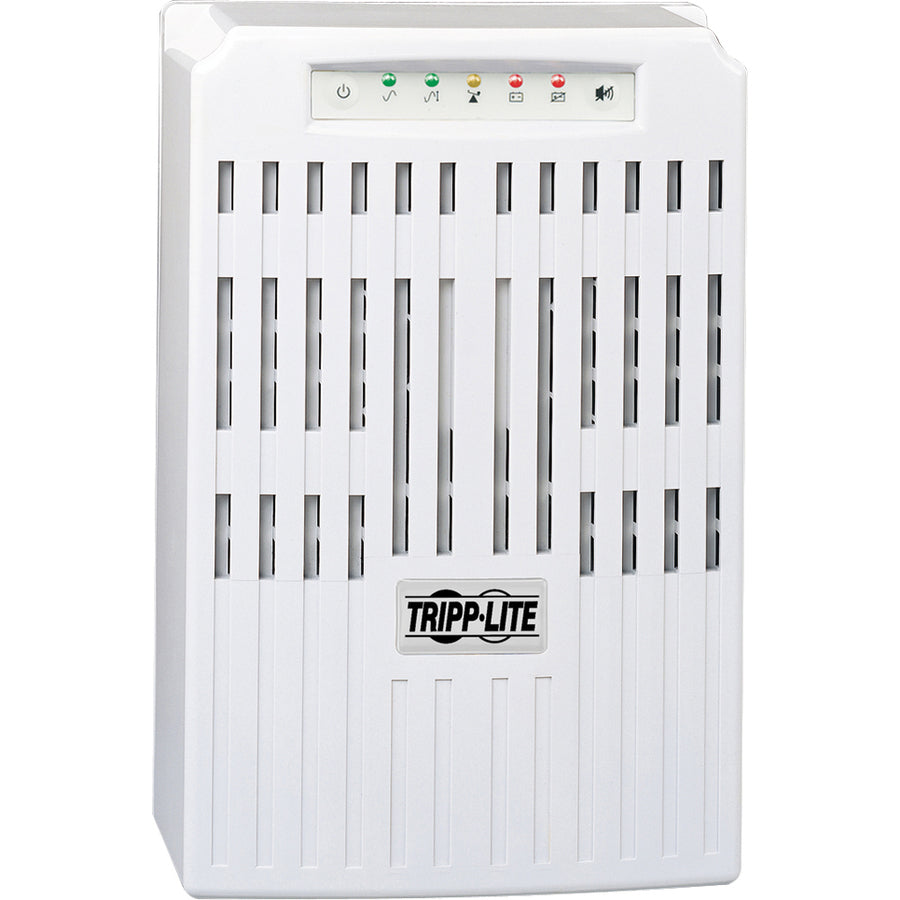

Tripp Lite's SMARTINT2200VS intelligent, line interactive tower UPS prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Large internal batteries offer 19 minutes half load runtime and 7 minutes at full load. Maintains regulated 230V nominal output without using battery power during brownouts and overvoltages from 151 to 282V. 2200VA power handling capability offers compatibility with sensitive electronic applications. Includes a total of 9 outlets with 3 load banks (2 outlets each). Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status.
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | IEC 320-C20 |
| Receptacle Type |
|
| Receptacle Detail |
|
| Emergency Power OFF | Yes |
| Transfer Time | 4 ms |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.60 kW |
| Input Voltage | 220 V AC |
| Output Voltage | 230 V AC |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 1800 J |
| Circuit Breaker | Yes |
| Network Management | SNMP Manageable |
| Alarm | Utility Power Failure |
| Status Indicators |
Five Front Panel LEDs:
|
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 7 Minute |
| Backup/Run Time (Half Load) | 19 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 4 Hour |
| Hot Swappable | Yes |
| Maximum Operating Temperature | 122 °F (50 °C) |
| Color Family | Gray |
| Product Color | Gray |
| Height | 14.25" (361.95 mm) |
| Width | 9.25" (234.95 mm) |
| Depth | 12" (304.80 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 54 lb (24493.99 g) |
| Package Contents |
|
| Additional Information |
Output Frequency Regulation:
|
| Certifications & Standards |
|
| Country of Origin | China |
| Limited Warranty | 2 Year |
Technical specifications
Power
VA Rating
2200VA
Wattage
1600W
Topology
Line-Interactive
Waveform
Simulated Sine Wave
Input
Input Voltage
240V
Input Plug
IEC C20
Input Phase
Single-phase
Output
Output Voltage
230V
Receptacles
8× IEC 60320 C131× IEC 60320 C19
Features
Form Factor
Tower
Connectivity
USBRS-232 SerialSNMP (via Network Management Card)HTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
No
Condition
New
Operating Temperature
0 to 50 °C (32 to 122 °F)
Dimensions
362 × 235 × 305 mm (14.25 × 9.25 × 12.00 in)
Weight
24.49kg
Manufacturer Warranty
2 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (800 W)
19 min
Full load (1600 W)
7 min
Available now
The manufacturer no longer makes the SMARTINT2200VS. These UPS are sold today; each card compares one with the discontinued model.
-
Xtreme Power Conversion
Xtreme Power P91g-2000 2000 VA / 2000 W Online UPS, 208/230 V
Compared with SMARTINT2200VS Spec SMARTINT2200VS Xtreme Power Capacity 2200 VA / 1600 W 2000 VA / 2000 W Topology Line-Interactive Online Double-Conversion Form Tower Tower/Rack Convertible, 2U Input plug IEC C20 NEMA L6-20P Outlets 8 × IEC 60320 C13, 1 × IEC 60320 C19 1 × IEC 60320 C19, 8 × IEC 60320 C13 Runtime, half load 19 min 10 min Differences
- Needs an L6-20R receptacle; this model uses an IEC C20 inlet cord
- Lower VA rating: 2000 VA instead of 2200 VA
- Online double-conversion, a step up from line-interactive
- Larger unit: 2000 W instead of 1600 W
$2,292.00 -
Xtreme Power Conversion
Xtreme Power P91g-2KLi 2000 VA / 1800 W Lithium-Ion Online UPS, 208/230 V
Compared with SMARTINT2200VS Spec SMARTINT2200VS Xtreme Power Capacity 2200 VA / 1600 W 2000 VA / 1800 W Topology Line-Interactive Online Double-Conversion Form Tower Tower/Rack Convertible, 2U Input plug IEC C20 NEMA L6-20P Outlets 8 × IEC 60320 C13, 1 × IEC 60320 C19 8 × IEC 60320 C13 Runtime, half load 19 min 30 min Differences
- Needs an L6-20R receptacle; this model uses an IEC C20 inlet cord
- 8 battery-backed outlets instead of 9
- No C19 outlet
- Lower VA rating: 2000 VA instead of 2200 VA
$4,728.96
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Discontinued by the manufacturer
Available now
The manufacturer no longer makes the SMARTINT2200VS. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.

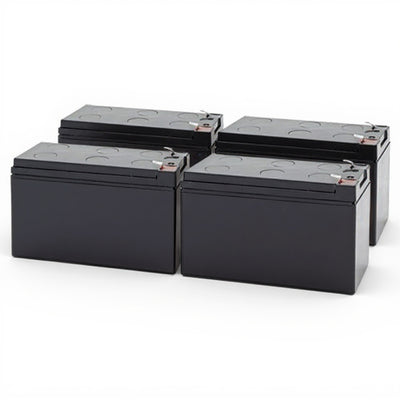

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
Other models in the same range
If this unit is too small or too big, here are the closest siblings: same topology, same form-factor family.
