Tripp Lite SmartOnline SU1000RTXLCD2UN 1000 VA / 900 W Rack Online UPS
- Power
- 1000 VA / 900 W
- Form
- Rackmount 2U
- Outlets
- 8× NEMA 5-15R
$2,357.99
Tripp Lite

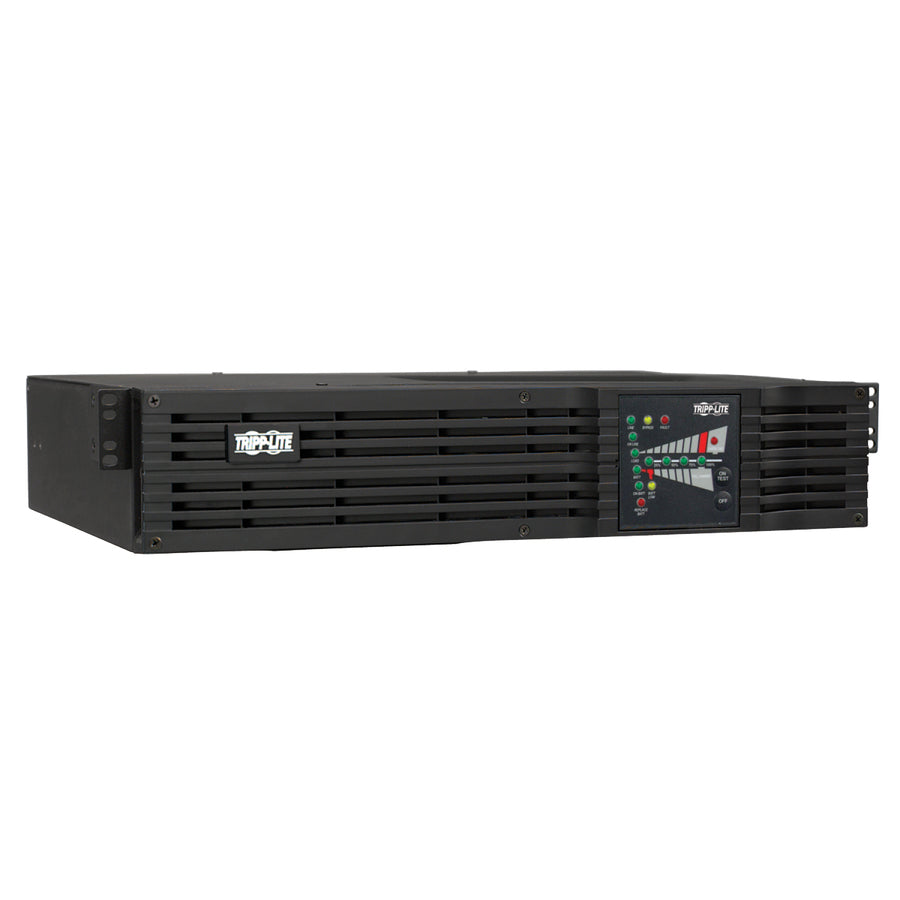

Tripp Lite SmartOnline SU1000RTXL2UN 1000 VA / 800 W Rack Online UPS
Tripp Lite SmartOnline SU1000RTXL2UN 1000 VA / 800 W Rack Online UPS
Discontinued by the manufacturerManufacturer’s current model: SU1000RTXLCD2UN. This listing is the earlier model.
Regular price
$1,763.00 CAD
Regular price
Sale price
$1,763.00 CAD
Available on order
Shipping calculated at checkout.
Quantity
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
About this UPS
Product Features:
- Brand: Tripp Lite
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: SU1000RTXL2UN
- Input Voltage: 100 V AC,110 V AC,120 V AC
- Form Factor: Rack/Tower
- Rack Height: 2U
- Product Family: SmartOnline
- Backup/Run Time (Full Load): 4 Minute
- Load Capacity: 1 kVA/800 W
Marketing Information: 1000VA on-line, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 13.5 inches. Extended runtime available with optional BP24V15RT2U (limit 1), BP24V28-2U (limit 1), BP24V70-3U (multi-pack compatible) or BP24V36-2US (multi-pack compatible) external battery packs. Full-time sine wave 100, 110 or 120V output with +/-2% voltage regulation. Online, double-conversion Uninterruptible Power Supply (UPS) actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150V. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. NEMA 5-15P input plug; NEMA 5-15R output receptacles. Network-grade AC surge and noise suppression. Zero transfer time between AC and battery operation. Network management interfaces support simultaneous communications via USB port, DB9 serial port and WEBCARDLX. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X.Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated two-bank PDU switching supports load shedding and remote reboot of connected equipment. 3-stage metered current monitoring and battery charge status LEDs. LED display panel easily rotates for viewing in rackmount or tower configurations. Dataline surge suppression for dialup, DSL or network Ethernet connection. Utility power and voltage regulation LEDs. Audible alarm. Self-test. Fault-tolerant auto-bypass mode. 4-post rackmount accessories included; 2-9USTAND tower kit and 2POSTRMKITWM 2-post rack & wallmount accessories available. Field-replaceable, hot-swappable internal batteries and external battery packs. $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Load Capacity | 1 kVA/800 W |
| Input Voltage |
|
| Output Voltage |
|
| Backup/Run Time (Full Load) | 4 Minute |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 13.50" (342.90 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 13.15 kg |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Country of Origin | China |
| Limited Warranty | 2 Year |
Technical specifications
Power
VA Rating
1000VA
Wattage
800W
Topology
Online Double-Conversion
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-15P (standard 15A)
Input Phase
Single-phase
Output
Output Voltage
120V
Receptacles
6× NEMA 5-15R
Features
Form Factor
Rackmount 2U
Rack Units
2U
Connectivity
USBRS-232 SerialHTTP/Web Management
Network Card Installed
Yes
Extended Runtime Capable
Yes
Condition
New
Dimensions
89 × 444 × 343 mm (3.50 × 17.50 × 13.50 in)
Weight
13.15kg
Certifications
CSA (Canada)UL 1778
Manufacturer Warranty
2 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (400 W)
14 min
Full load (800 W)
4.5 min
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Available now
The manufacturer no longer makes the SU1000RTXL2UN. These UPS are sold today; each card compares one with the discontinued model.
-
Compared with SU1000RTXL2UN Spec SU1000RTXL2UN Delta Capacity 1000 VA / 800 W 1000 VA / 900 W Topology Online Double-Conversion Online Double-Conversion Form Rackmount 2U, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 14 min 10 min Differences
- Network card not included
$1,777.99 -
Compared with SU1000RTXL2UN Spec SU1000RTXL2UN 360PQ Capacity 1000 VA / 800 W 1000 VA / 1000 W Topology Online Double-Conversion Online Double-Conversion Form Rackmount 2U, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 14 min 12 min Differences
- Network card not included
- Larger unit: 1000 W instead of 800 W
$1,137.00 -
Xtreme Power Conversion
Xtreme Power P91c-1000 1000 VA / 800 W Online UPS, 120 V
Compared with SU1000RTXL2UN Spec SU1000RTXL2UN Xtreme Power Capacity 1000 VA / 800 W 1000 VA / 800 W Topology Online Double-Conversion Online Double-Conversion Form Rackmount 2U, 2U Rackmount 1U, 1U Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 3 × NEMA 5-15R Runtime, half load 14 min 20 min Differences
- 3 battery-backed outlets instead of 6
- External battery option to confirm
- Network card not included
$1,390.17
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Discontinued by the manufacturer
Available now
The manufacturer no longer makes the SU1000RTXL2UN. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Works with this UPS
Only accessories the manufacturer lists for this model.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.

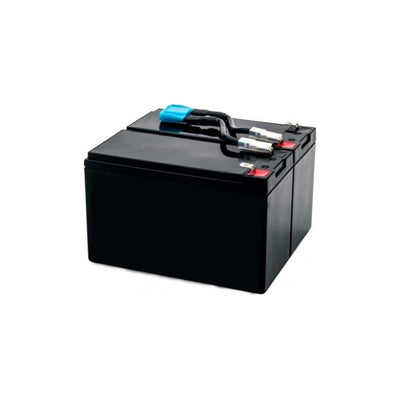

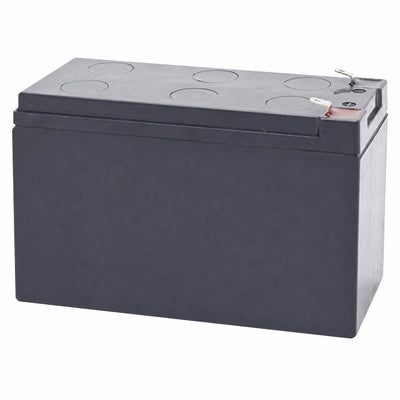

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
Other models in the same range
If this unit is too small or too big, here are the closest siblings: same topology, same form-factor family.
