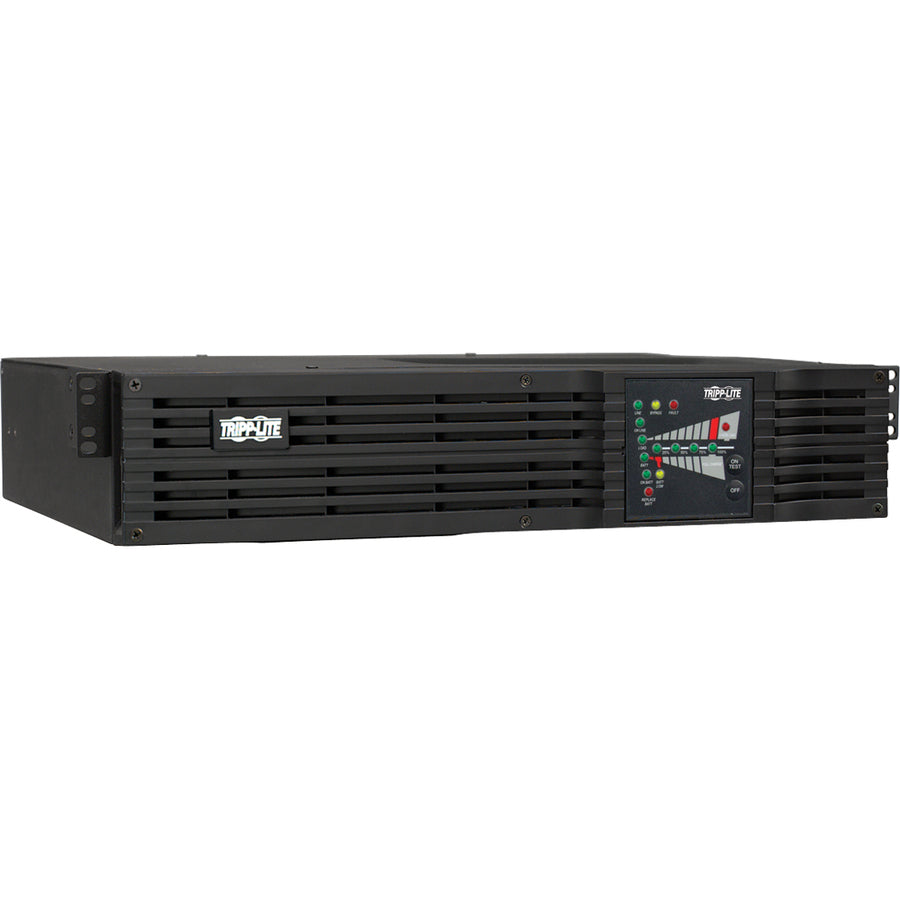

Tripp Lite SmartOnline SU2200RTXL2UN 2200 VA / 1600 W Rack Online UPS with Network Card

Tripp Lite SmartOnline SU2200RTXL2UN 2200 VA / 1600 W Rack Online UPS with Network Card

Discontinued by the manufacturerManufacturer’s current model: SU2200RTXLCDN. This listing is the earlier model.
$2,792.00 CAD
$2,792.00 CAD
Sale Sold out

Available on order

Shipping calculated at checkout.

Available on order

Request a configured quoteCheck this UPS for your load

Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.

Buying 5 or more? Request volume pricing →

  • Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
  • New in box: manufacturer warranty applies
  • Have a purchase order? Request a quote.

Questions? 438-881-3363 · Mon to Fri

Works with this UPS
Tripp Lite Universal 1U Shelf Kit for 4-Post Racks (4POSTRAILKITWM)Tripp Lite Universal 1U Shelf Kit for 4-Post Racks (4POSTRAILKITWM)$112.99
View details ↓Bundle & quote in the sizing tool →
View full details
Product details

About this UPS

Product Features:
  • Brand: Tripp Lite by Eaton
  • Product Type: Double Conversion Online UPS
  • Manufacturer Part Number: SU2200RTXL2UN
  • Input Voltage: 120 V AC
  • Form Factor: Rack/Tower
  • Waveform Type: Sine Wave,Pure Sine Wave
  • Rack Height: 2U
  • Plug/Connector Type: NEMA 5-20P
  • Product Family: SmartOnline
  • Backup/Run Time (Half Load): 14 Minute
  • Backup/Run Time (Full Load): 4.50 Minute
  • Load Capacity: 2.20 kVA/1.60 kW

    • Marketing Information: Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert UPS monitoring software is available via free download. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation and output power availability. Audible alarm with push-button momentary alarm-cancel. Programmable self-test. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs.
Product Specifications:
Product Features:
  • Manufacturer:Tripp Lite by Eaton
  • Manufacturer Part Number:SU2200RTXL2UN
  • Manufacturer Website Address:https://tripplite.eaton.com/
  • Brand Name:Tripp Lite by Eaton
  • Product Line:SmartOnline
  • Product Model:SU2200RTXL2UN
  • Product Name:SU2200RTXL2UN UPS with Pre-installed SNMPWEBCARD

    • Marketing Information:Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert UPS monitoring software is available via free download. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation and output power availability. Audible alarm with push-button momentary alarm-cancel. Programmable self-test. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs.
    PRODUCT SPECIFICATIONS
    Plug/Connector Type NEMA 5-20P
    Receptacle Type
    • NEMA 5-15/20R
    • NEMA L5-20R
    Receptacle Detail
    • 6 x NEMA 5-15/20R
    • 1 x NEMA L5-20R
    Dataline Protection
    • RJ-11
    • RJ-45
    Protection Type
    • Over Voltage
    • Under Voltage
    • EMI / RFI
    • Brownout
    Bypass Switch Automatic
    Emergency Power OFF Yes
    Cord Length 10 ft
    Load Capacity (VA) 2.20 kVA
    Load Capacity (Watt) 1.60 kW
    Input Voltage 120 V AC
    Input Current 16 A
    Output Voltage 120 V AC
    Waveform Type
    • Sine Wave
    • Pure Sine Wave
    Surge Energy Rating 570 J
    Circuit Breaker Yes
    Network Management SNMP Manageable
    Alarm
    • UPS StartUp
    • Power Failure
    • Low Battery
    • Overload
    • UPS Fault
    • Remote Shutdown
    Status Indicators
    • 14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information
    • 4-LED meter displays load and battery charge levels
    • LED panel rotates for viewing in rack/tower formats
    Serial Port Yes
    USB Yes
    Total Number of Expansion Slots 1
    Backup/Run Time (Full Load) 4.50 Minute
    Backup/Run Time (Half Load) 14 Minute
    Typical Battery Recharge Time 6 Hour
    Hot Swappable Yes
    Maximum Operating Temperature 104 °F (40 °C)
    Sound Emission 45 dB
    Thermal Dissipation 812.90 BTU/h
    Height 3.50" (88.90 mm)
    Width 17.50" (444.50 mm)
    Depth 19" (482.60 mm)
    Rack Height 2U
    Form Factor Rack/Tower
    Weight (Approximate) 21.50 kg
    Package Contents
    • SU2200RTXL2UN UPS with Pre-installed SNMPWEBCARD
    • Poweralert Software and Cabling
    • Mounting Hardware For 4 Post Rack Enclosures
    • Instruction Manual
    Certifications & Standards
    • UL1778 (USA)
    • CSA (Canada)
    • NOM (Mexico)
    • FCC Part 15 Category A (EMI)
    Software Included Poweralert Software
    Country of Origin China
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 2 Year
    Specifications

    Technical specifications

    Power
    VA Rating
    2200VA
    Wattage
    1600W
    Topology
    Online Double-Conversion
    Waveform
    Pure Sine Wave
    Input
    Input Voltage
    120V
    Input Plug
    NEMA 5-20P (T-slot 20A)
    Input Phase
    Single-phase
    Output
    Output Voltage
    120V
    Receptacles
    6× NEMA 5-15/20R1× NEMA L5-20R
    Features
    Form Factor
    Rackmount 2U
    Rack Units
    2U
    Connectivity
    USBRS-232 SerialSNMP (via Network Management Card)HTTP/Web Management
    Network Card Installed
    Yes
    Extended Runtime Capable
    Yes
    Condition
    New
    Operating Temperature
    0 to 40 °C (32 to 104 °F)
    Dimensions
    89 × 444 × 483 mm (3.50 × 17.50 × 19.00 in)
    Weight
    21.5kg
    Certifications
    CSA (Canada)NOM (Mexico)UL 1778
    Manufacturer Warranty
    2 years
    Manufacturer datasheet (PDF) ↗
    Setup checklist: after you receive your UPS →
    Backup runtime

    How long it'll keep your equipment up.

    Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.

    Half load (800 W) 14 min
    Full load (1600 W) 4.5 min

    Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →

    W
    Estimated runtime …min

    Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.

    Discontinued by the manufacturer

    Available now

    The manufacturer no longer makes the SU2200RTXL2UN. These UPS are sold today; each card compares one with the discontinued model.

    • Delta

      Delta UPS202R1RT0B0B 2000 VA / 1800 W Rack/Tower Online UPS

      SU2200RTXL2UNDelta
      Capacity 2200 VA / 1600 W 2000 VA / 1800 W
      Topology Online Double-Conversion Online Double-Conversion
      Form Rackmount 2U, 2U Tower/Rack Convertible, 2U
      Input plug NEMA 5-20P NEMA 5-20P
      Outlets 6 × NEMA 5-15/20R, 1 × NEMA L5-20R 8 × NEMA 5-15/20R, 1 × NEMA L5-20R
      Runtime, half load 14 min 11 min

      Differences

      • Network card not included
      • Lower VA rating: 2000 VA instead of 2200 VA
      $2,499.99
    • Xtreme Power Conversion

      Xtreme Power P91-2000 2000 VA / 1930 W Online UPS, 120 V

      SU2200RTXL2UNXtreme Power
      Capacity 2200 VA / 1600 W 2000 VA / 1930 W
      Topology Online Double-Conversion Online Double-Conversion
      Form Rackmount 2U, 2U Tower/Rack Convertible, 2U
      Input plug NEMA 5-20P NEMA 5-20P
      Outlets 6 × NEMA 5-15/20R, 1 × NEMA L5-20R 8 × NEMA 5-15/20R
      Runtime, half load 14 min 10 min

      Differences

      • No L5-20R outlet
      • Network card not included
      • Lower VA rating: 2000 VA instead of 2200 VA
      • Larger unit: 1930 W instead of 1600 W
      $2,399.99
    • 360PQ

      360PQ Platinum PL-L020-01 2000 VA / 2000 W UPS, 120 V

      SU2200RTXL2UN360PQ
      Capacity 2200 VA / 1600 W 2000 VA / 2000 W
      Topology Online Double-Conversion Online Double-Conversion
      Form Rackmount 2U, 2U Tower/Rack Convertible, 2U
      Input plug NEMA 5-20P NEMA 5-20P
      Outlets 6 × NEMA 5-15/20R, 1 × NEMA L5-20R 4 × NEMA 5-15R, 4 × NEMA 5-20R
      Runtime, half load 14 min 12 min

      Differences

      • No L5-20R outlet
      • Network card not included
      • Lower VA rating: 2000 VA instead of 2200 VA
      • Larger unit: 2000 W instead of 1600 W
      $1,615.50

    Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.

    Add-ons

    Works with this UPS

    Only accessories the manufacturer lists for this model.

    Tripp Lite Universal 1U Shelf Kit for 4-Post Racks (4POSTRAILKITWM)
    Tripp Lite
    Tripp Lite Universal 1U Shelf Kit for 4-Post Racks (4POSTRAILKITWM)
    Rack rails for this model
    4POSTRAILKITWM
    $112.99
    Shipped across Canada
    Shipping is available across Canada. See the shipping policy for rates and timing.
    Manufacturer-backed
    New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
    In business since 2012
    UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
    Sizing & install help
    Email your load profile and we'll spec the right UPS within one business day.
    When the batteries fail

    Replacement batteries that fit this exact UPS

    A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.

    Bookmark this page before you need it.

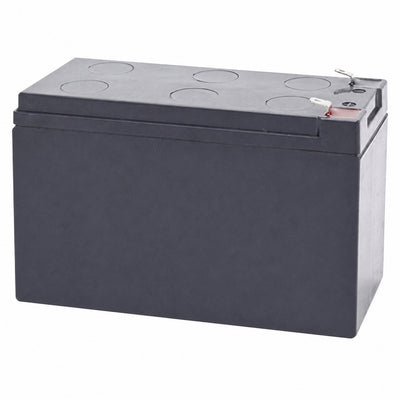

    Tripp Lite SU2200RTXL2UN UPS Battery Set (Replacement)
    Tripp Lite · Compatible replacement
    Tripp Lite SU2200RTXL2UN UPS Battery Set (Replacement)
    Voltage48V
    Capacity9.0Ah
    $175.94 Shop →
    Tripp Lite RBC94-2U Compatible Replacement Battery Kit (48V, 4 x 12V 9Ah)
    Tripp Lite · Compatible replacement
    Tripp Lite RBC94-2U Compatible Replacement Battery Kit (48V, 4 x 12V 9Ah)
    Voltage48V
    Capacity9.0Ah
    $171.99 Shop →

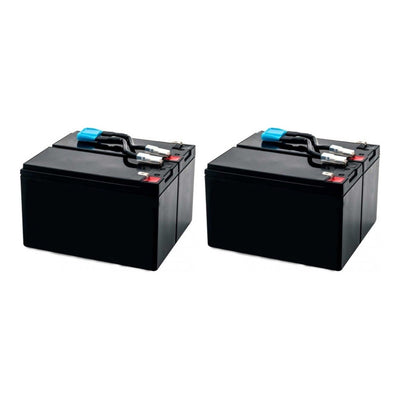

    Tripp Lite SU2200RTXL2UN Assembled Replacement Battery Pack
    Tripp Lite · Compatible replacement
    Tripp Lite SU2200RTXL2UN Assembled Replacement Battery Pack
    Voltage48V
    Capacity9.0Ah
    $195.49 Shop →
    Frequently asked

    Questions before you buy

    How do I know this UPS will run my equipment?

    Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.

    What's covered by the warranty, and how long does it last?

    New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.

    Can I extend runtime beyond what's shown above?

    Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.

    Same family

    Other models in the same range

    If this unit is too small or too big, here are the closest siblings: same topology, same form-factor family.
