About this UPS

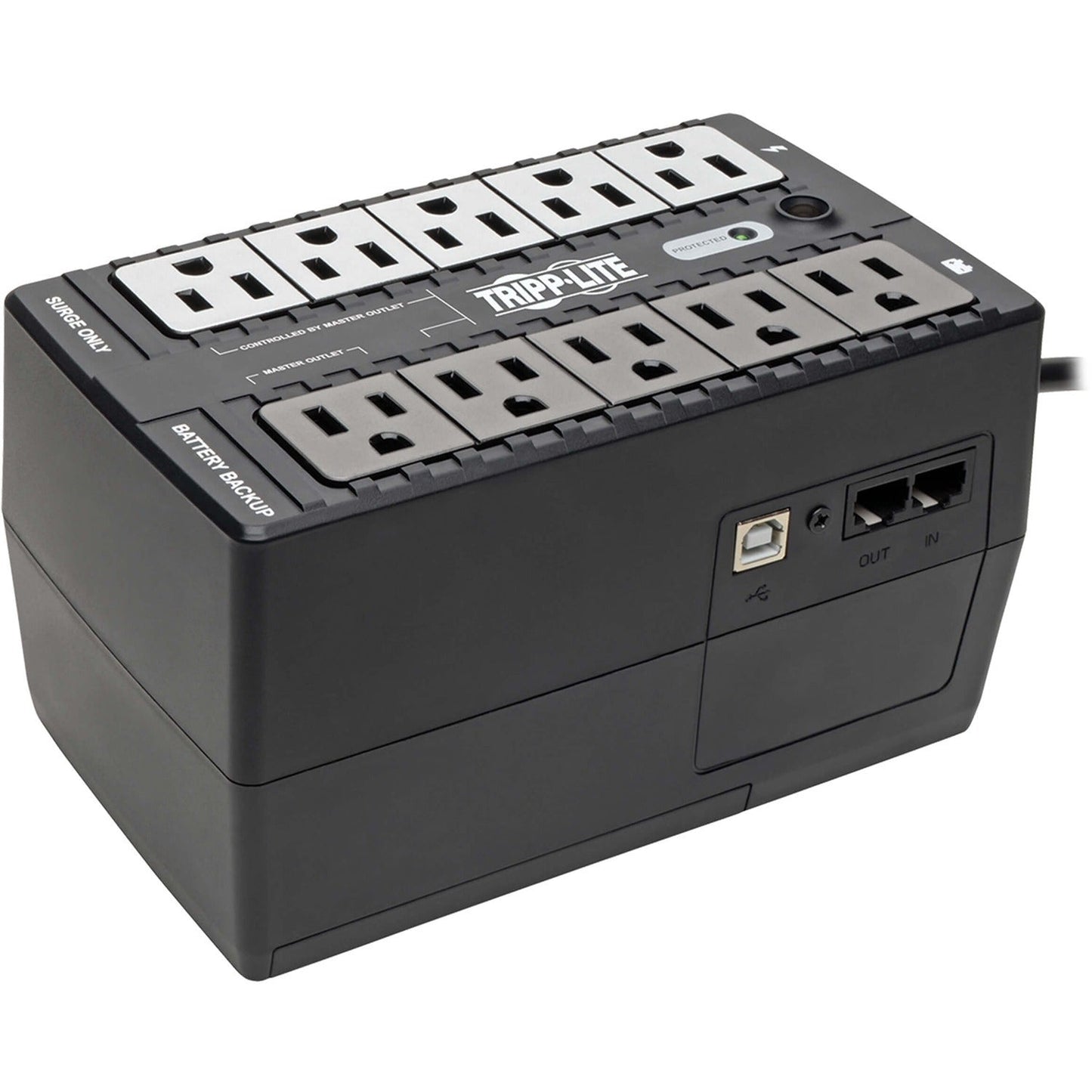

Tripp Lite by Eaton Eco 650VA Energy-saving Standby 120V UPS with USB Port and Muted Alarm
| UPC | 0037332211071 |
| Wall Mountable, Desktop - 120 V AC Input - 115 V AC, 120 V AC Output - USB - 8 x NEMA 5-15R | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | ECO650UPSM |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Series: | ECO |
| Product Model: | ECO650UPSM |
| Product Name: | Eco 650VA Energy-saving Standby 120V UPS with USB Port and Muted Alarm |
| Marketing Information: | Energy-Saving 650VA/325W/120V Battery Backup for PCs, Home Theater and Digital Signage The standby ECO650UPSM UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The 10-outlet 120V battery backup is ideal protection for your home office, media center or professional kiosk, security and small-business phone applications, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment Allows Time to Back Up Critical Files During a Blackout Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the ECO650UPSM should keep an energy-efficient desktop computer with small LCD monitor powered as long as 16 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available 10 NEMA 5-15R Outlets Protect Your Connected Components Five 5-15R outlets provide battery backup and surge protection for your computer, monitor and other crucial components. The other five 5-15R outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout ENERGY STAR-Certified to Help You Save Money and Protect the Environment By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. An ECO power-saving option features three switched ECO outlets (two surge-only, one surge- and battery-protected) that turn off automatically when the device connected to the Battery Backup Master Outlet is powered down or in sleep mode. These outlets are recommended for printers, desk lamps and other non-essential peripherals that don't need to be operational all the time 316 Joules Fight Back Against Unexpected Power Surges A 316-joule surge suppression rating protects connected components from the harmful effects of power surges. Dual network data line jacks protect a wired peripheral from dangerous surges on a single 10/100Base-T or dial-up network connection HID-Compliant USB Port Allows for Automatic Saves and Shutdowns This USB port connects the ECO650UPSM to a computer running Tripp Lite's downloadable PowerAlert software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. USB cable included Combats Electromagnetic Interference That Can Harm Equipment Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The ECO650UPSM incorporates technology that filters out disruptive line noise so that it won't affect your equipment |
| Product Type: | Standby UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 8 x NEMA 5-15R |
| Dataline Protection: | RJ-11 |
| Protection Type: |
|
| Bypass Switch: | Optional |
| Cord Length: | 6 ft | Power Description |
| Load Capacity (VA): | 650 VA |
| Load Capacity (Watt): | 325 W |
| Input Voltage: | 120 V AC |
| Input Current: | 10 A |
| Output Voltage: |
|
| Waveform Type: | Pulse-width Modulated Sine Wave |
| Surge Energy Rating: | 420 J | Management |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: |
|
Interfaces/Ports |
| Modem (RJ-11): | Yes |
| USB: | Yes | Battery Information |
| Backup/Run Time (Half Load): | 11 Minute | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) | Physical Characteristics |
| Height: | 3.10" (78.74 mm) |
| Width: | 10.80" (274.32 mm) |
| Depth: | 5.70" (144.78 mm) |
| Form Factor: |
|
| Weight (Approximate): | 2.99 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: |
|
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Energy Efficiency Certification: | ENERGY STAR 2.0 |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year |
Technical specifications
Power
VA Rating
650VA
Wattage
325W
Topology
Standby
Waveform
Simulated Sine Wave
Input
Input Voltage
120V
Output
Output Voltage
115V
Receptacles
8× NEMA 5-15R
Features
Form Factor
Tower
Connectivity
["USB""HTTP/Web Management"]
Condition
New
Operating Temperature
0 to 40 °C (32 to 104 °F)
Dimensions
79 × 274 × 145 mm (3.10 × 10.80 × 5.70 in)
Weight
2.99kg
Manufacturer Warranty
3 years
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (162 W)
8.0 min
Full load (325 W)
1.0 min
W
Estimated runtime
—min
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Shipped across Canada
Shipped from our Canadian warehouse. See shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the full manufacturer warranty registered to you on receipt.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile — we'll spec the right UPS within one business hour.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
