About this UPS

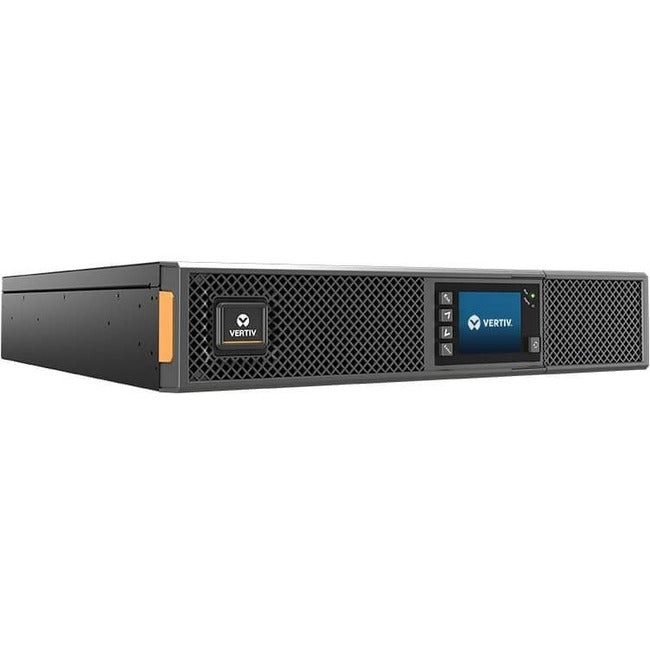

Vertiv Liebert GXT5 UPS - 3000VA/3000W 230V | Online Rack Tower Energy Star
| UPC | 0767041026580 |
| Double Conversion | 2U | Optional RDU101 Card| Color/Graphic LCD| 3-Year Warranty | |
| General Information | |
|---|---|
| Manufacturer: | Vertiv |
| Manufacturer Part Number: | GXT53000IRT2UXL |
| Manufacturer Website Address: | http://www.vertiv.com/ |
| Brand Name: | Liebert |
| Product Series: | GXT5 |
| Product Model: | GXT5-3000IRT2UXL |
| Product Name: | GXT5 UPS - 3000VA/3000W 230V | Online Rack Tower |
| Marketing Information: | The Vertiv Liebert GXT5 UPS 3000VA/3000W, is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environment including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR ® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It has a three-year factory warranty. It offers premium power protection for critical infrastructure in centralized and edge applications. |
| Product Condition: | New |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Protection Type: |
|
| Cord Length: | 10 ft |
| Transfer Time: | 0 ns |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Single Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 3 kVA |
| Load Capacity (Watt): | 3 kW |
| Input Voltage: | 230 V AC |
| Input Voltage Range: | 115 V AC - 288 V AC |
| Output Voltage: |
|
| Input Frequency: | 70 Hz |
| Waveform Type: | Pure Sine Wave |
| Circuit Breaker: | Yes | Management |
| Network Management: | SNMP/HTTP Remote Monitoring | Controls/Indicators |
| Status Indicators: |
Colored Graphic LCD Display:
|
Interfaces/Ports |
| Serial Port: | Yes |
| VGA: | No |
| Modem (RJ-11): | No |
| Network (RJ-45): | Yes |
| USB (HID Compliant) Port: | Yes | Battery Information |
| DC System Voltage: | 72 V DC |
| Number of Batteries: | 6 |
| Battery Characteristics: | Valve-regulated, Non-spillable |
| Battery Chemistry: | Lead Acid |
| Battery Size: | 12V |
| Battery Capacity: | 9000 mAh |
| Backup/Run Time (Full Load): | 3.30 Minute |
| Backup/Run Time (Half Load): | 10.80 Minute |
| Battery Life: | 5 Year |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Pluggable: | Yes |
| Hot Swappable: | Yes |
| Replaceable Battery: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | 5 °F (-15 °C) - 104 °F (40 °C) |
| Maximum Operating Elevation: | 9842.52 ft (3000000 mm) |
| Sound Emission: | 48 dB | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 3.35" (85 mm) |
| Width: | 16.93" (430 mm) |
| Depth: | 21.26" (540 mm) |
| Rack Height: | 2U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 28.50 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: |
|
| Software Included: | Free Download - Power Insight 2.2 |
| Energy Star: | Yes |
| Country of Origin: | China |
| TAA Compliant: | No |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 3 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
