Extending APC Smart-UPS SRT runtime without guessing the battery pack
A composite server-room case built around exact SRT pack matching, load evidence and a witnessed battery test
Publication note. This composite scenario describes a plausible technical situation from the cited sources. No customer, site, price, measured result or completed work is presented as real.
Decision in brief

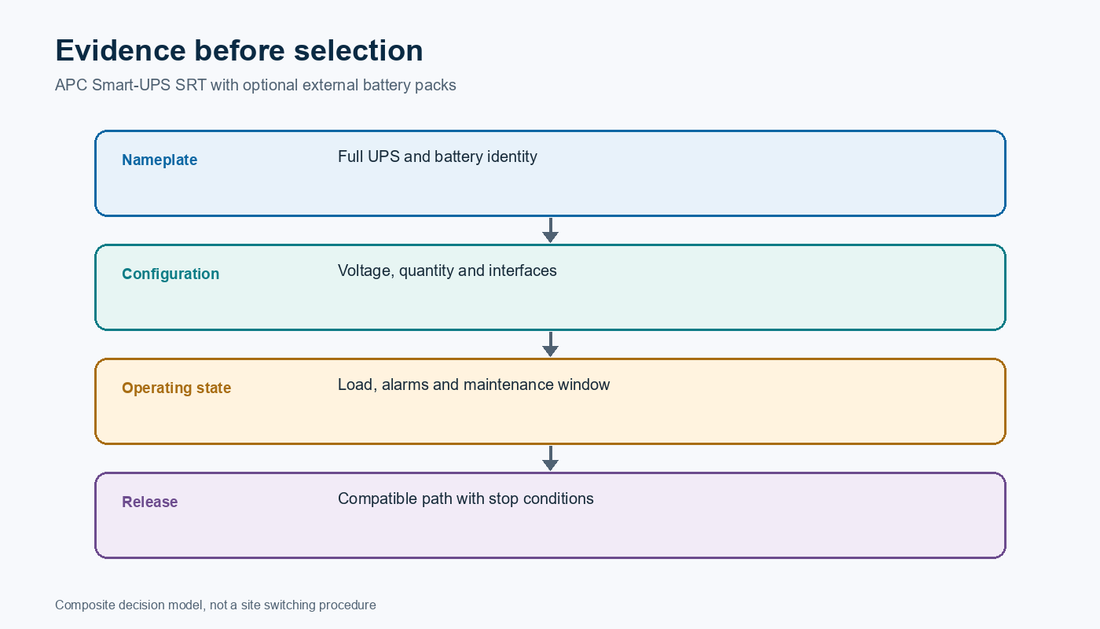

Release an external-pack order only after the complete UPS suffix, nominal DC family, installed pack count, cable route, rack support and steady-state load are confirmed. The pack can then be commissioned and tested against a stated acceptance window.
| Item | Record |
|---|---|
| Equipment | APC Smart-UPS SRT with optional external battery packs |
| Status | Composite scenario with no field outcome claimed |
| Selection basis | Complete nameplate, manufacturer document and site data |
| Closeout | Recorded alarms, load, test and returned operating state |
Technical context
A growing server room needed more ride-through time, but the installed SRT nameplate, input voltage, existing battery-pack count and actual load had not yet been reconciled. The request was commercially simple and technically incomplete: add batteries and obtain more minutes.
The catalogue contains several SRT external packs that look similar in photographs. Their DC voltage and supported UPS families differ. The case therefore starts with the UPS and battery-pack labels, not with a target part number selected from memory.
The release decision follows verified evidence.
Boundaries established by the evidence
Schneider Electric publishes separate installation guidance for SRT192BP and SRT192BP2 battery packs. [1]
Schneider’s battery-recognition guidance is model-specific and lists exclusions, which prevents a universal detection rule. [2]
A runtime target remains unverified until the connected load and a controlled test are recorded. [3]
Products and service in context
Use the SRT family page while reconciling the UPS suffix and the available extended-runtime architecture.
Browse APC Smart-UPS SRT systems
Release conditions before ordering
After the DC family is confirmed, compare the installed labels with the SRT192BP catalogue record.
View the APC SRT192BP product page
Keep the order on hold while any of the following points remains open:
- Unreadable UPS or pack nameplate
- Mixed or unconfirmed SRT pack family
- No stable load reading
- No approved battery-test window
The release decision follows verified evidence.
Work control: APC Smart-UPS SRT with optional external battery packs
Before any pack is released, the equipment owner records the complete SRT suffix, the model of every installed pack, the steady load and the approved test window. The technician then checks the DC family, cable route, pack count and rack support against the applicable Schneider procedure.
Work stops if a nameplate is unreadable, the installed packs cannot be reconciled or the load is not stable enough for a controlled test. Handback records pack recognition, alarm state, the observed battery test load and the agreed stop condition, without converting that observation into a guaranteed runtime.
If the matched pack requires on-site installation or a witnessed load test, Plan an on-site UPS battery replacement describes the applicable field service.
Handback evidence
- UPS and every external pack identified by complete model
- Pack count recognized by the applicable UPS procedure
- No new battery or communication alarm after recharge
- Battery operation observed under the agreed load
- Measured test record retained with assumptions and stop conditions
The release decision follows verified evidence.
Decision outcome
The composite decision record authorizes one of three paths: install the exact compatible pack, keep the present configuration while more data are collected, or rescope the UPS if the required autonomy cannot be supported safely. It does not claim a completed installation or a number of minutes gained.
Where the evidence points to the alternate SRT192BP2 route, check that product record before releasing the order.
View the APC SRT192BP2 product page
References
- Schneider Electric, Installation Guide External Battery Pack SRT192BP and SRT192BP2
- Schneider Electric, Smart-UPS SRT battery pack disconnected guidance
- GDF Technologies, internal UPS battery selection, sizing and condition-assessment references.
Date: July 12, 2026
Scope: Composite scenario, Canada, English Canadian
Trademarks and model numbers belong to their respective owners and are used only to identify products.
