Product Features:

Manufacturer:Eaton Corporation

Manufacturer Part Number:SMART1200XLHG

Manufacturer Website Address:https://tripplite.eaton.com/

Brand Name:Tripp Lite by Eaton

Product Line:SmartPro

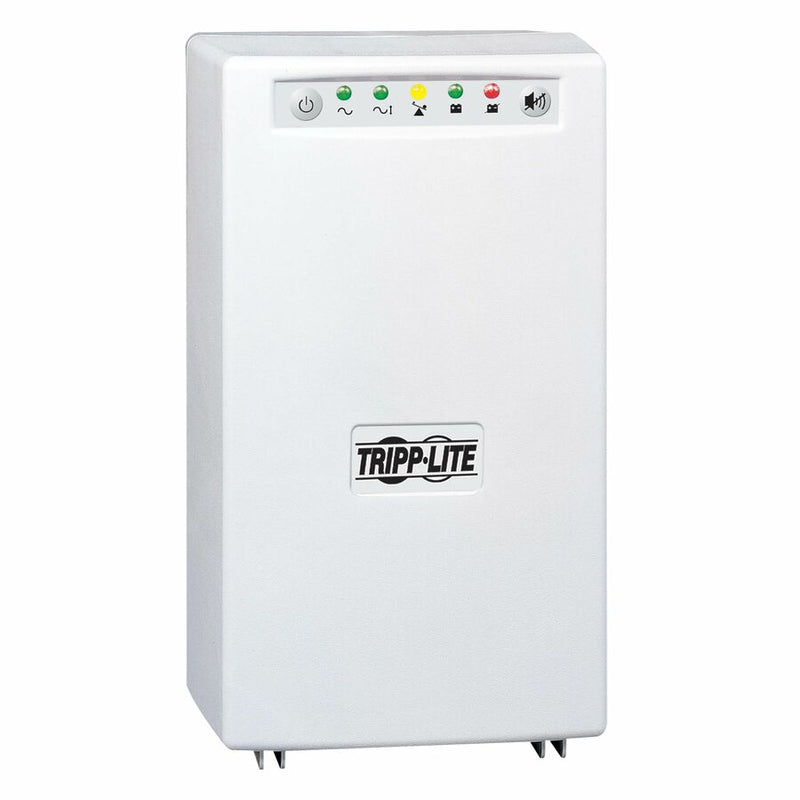

Product Name:SmartPro 1200XLHG UPS

Marketing Information:Tripp Lite's SMART1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 28 minutes of runtime for a half load or 10 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output without drawing battery power. The SMART1200XLHG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise, while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a six-foot cord for flexibility in placement. All four outlets provide both backup protection and surge protection rated to 940 joules. The SMART1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite's included PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.

Ideal UPS Backup in Healthcare Facilities

• Complies with UL 60601-1 standards for use in patient-care facilities
• Isolation transformer with Faraday shield offers full isolation and removes common mode noise
• 6 ft. power cord with 120V NEMA 5-15P-HG plug
• Floating AC output prevents noise coupling and meets agency requirements for isolation

Reliable Battery Backup and Surge Protection

• Supports half load up to 28 min. and full load up to 10 min.
• 4 NEMA 5-15R-HG outlets with 940-joule surge protection
• Filters out disruptive EMI/RFI line noise that can cause equipment damage or data loss
• Resists electrostatic discharge

LEDs and Audible Alarms

• Front LEDs indicate power, mode, load and battery status
• Alarms alert you to power failure, overload and low battery
• Mute/quiet mode ideal for use in quiet patient-care vicinities

Saves Files When You're Away

• Included PowerAlert® software enables safe, unattended system shutdown and file saving during power failures
• Connects to computer via DB9 or USB port with included cables

PRODUCT SPECIFICATIONS
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	4 x NEMA 5-15R
Cord Length	6 ft (1.83 m)
Transfer Time	4 ms
Load Capacity (VA)	1 kVA
Load Capacity (Watt)	750 W
Input Voltage	120 V AC
Output Voltage	115 V AC 120 V AC
Network Management	SNMP Manageable
Alarm	On Battery Overload Low Battery
Status Indicators	Includes 5 front-panel indicator LEDs to show battery charge level, AC line voltage levels, automatic voltage regulation status, UPS load level and replace battery warning
USB	Yes
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	10 Minute
Backup/Run Time (Half Load)	28 Minute
Battery Life	6 Year
Typical Battery Recharge Time	4 Hour
Hot Swappable	Yes
Maximum Operating Temperature	104°F (40°C)
Height	12.75" (323.85 mm)
Width	7.50" (190.50 mm)
Depth	9" (228.60 mm)
Form Factor	Tower
Weight (Approximate)	44.60 lb (20230.22 g)
Package Contents	SmartPro 1200XLHG UPS SMART 1200XLHG Medical Grade Tower UPS System PowerAlert Software and cabling Warranty information Instruction manual
Additional Information	Ideal UPS protection for applications in medical patient-care areas where UL 2601-1 listed medical electrical equipment is required Maintains less than 300 microamps leakage current for UPS and all connected equipment Built-in isolation transformer with faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes Provides connected equipment with continuous power during short and long duration loss of commercial power Expandable runtime is available with the addition of one or more external battery packs (part# BP36V27) Line-interactive voltage regulation corrects brownouts and overvoltages from 81 to 143 volts back to usable 120V output levels, without using battery power Hospital-grade plug and outlets offer added degree of safety and reliability to input/output connections Full line isolation prevents shock potential and operational problems in sensitive electronic equipment Resistant to electrostatic discharge Supports loads up to 1000VA / 750 watts 34 minutes half load runtime (500VA/375 watts), 16 minutes full load runtime (1000VA/750 watts) 4 protected hospital-grade outlets; 6-ft. cord 1-RS-232 and 1-USB serial port for network interface; SNMP compatible SNMP compatible with separate purchase SNMPWEBSOLO ethernet adapter accessory Complete surge protection, line isolation and EMI/RFI noise filtering 2 year product warranty PowerAlert unattended shutdown software and complete cabling included 5 diagnostic LEDs indicate AC present, on battery, voltage correction, overload & battery low/replace Battery replacement door Back panel grounding lug
Certifications & Standards	UL1778 (USA, Series AGSM1200PSR3HG), UL2601-1 (Medical), cUL (Canada), FCC Class A (emissions), Conforms to IEEE 587 / ANSI C62.41 specifications
Country of Origin	Taiwan
Limited Warranty	2 Year
