| UPC | 0037332116406 |
| 1000VA/750W - 10 Minute Full Load - 4 x NEMA 5-15R | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SMART1200XLHG |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartPro |

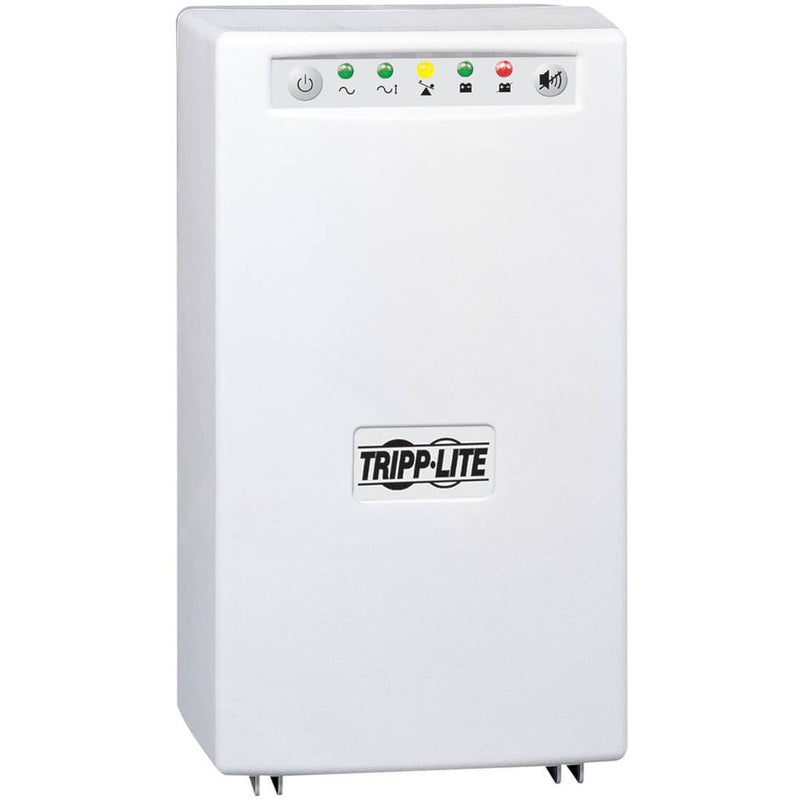

| Product Name: | SmartPro 1200XLHG UPS |
| Marketing Information: | Tripp Lite's SMART1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 28 minutes of runtime for a half load or 10 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output without drawing battery power. The SMART1200XLHG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise, while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a six-foot cord for flexibility in placement. All four outlets provide both backup protection and surge protection rated to 940 joules. The SMART1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite's included PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure. Ideal UPS Backup in Healthcare Facilities
|
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 4 x NEMA 5-15R |
| Cord Length: | 6 ft |
| Transfer Time: | 4 ms | Power Description |
| Load Capacity (VA): | 1 kVA |
| Load Capacity (Watt): | 750 W |
| Input Voltage: | 120 V AC |
| Output Voltage: |
|
Management |
| Network Management: | SNMP Manageable |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: | Includes 5 front-panel indicator LEDs to show battery charge level, AC line voltage levels, automatic voltage regulation status, UPS load level and replace battery warning | Interfaces/Ports |
| USB: | Yes | Battery Information |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 10 Minute |
| Backup/Run Time (Half Load): | 28 Minute |
| Battery Life: | 6 Year |
| Typical Battery Recharge Time: | 4 Hour |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104°F (40°C) | Physical Characteristics |
| Height: | 12.75" (323.85 mm) |
| Width: | 7.50" (190.50 mm) |
| Depth: | 9" (228.60 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 20.23 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Certifications & Standards: | UL1778 (USA, Series AGSM1200PSR3HG), UL2601-1 (Medical), cUL (Canada), FCC Class A (emissions), Conforms to IEEE 587 / ANSI C62.41 specifications |
| Country of Origin: | Taiwan | Warranty |
| Limited Warranty: | 2 Year |
