| UPC | 0037332125774 |
| 2200VA/1600W - 6 Minute Full Load - 6 x NEMA 5-15/20R, 1 x NEMA L5-20R | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SMART2200SLT |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartPro |
| Product Model: | SMART2200SLT |

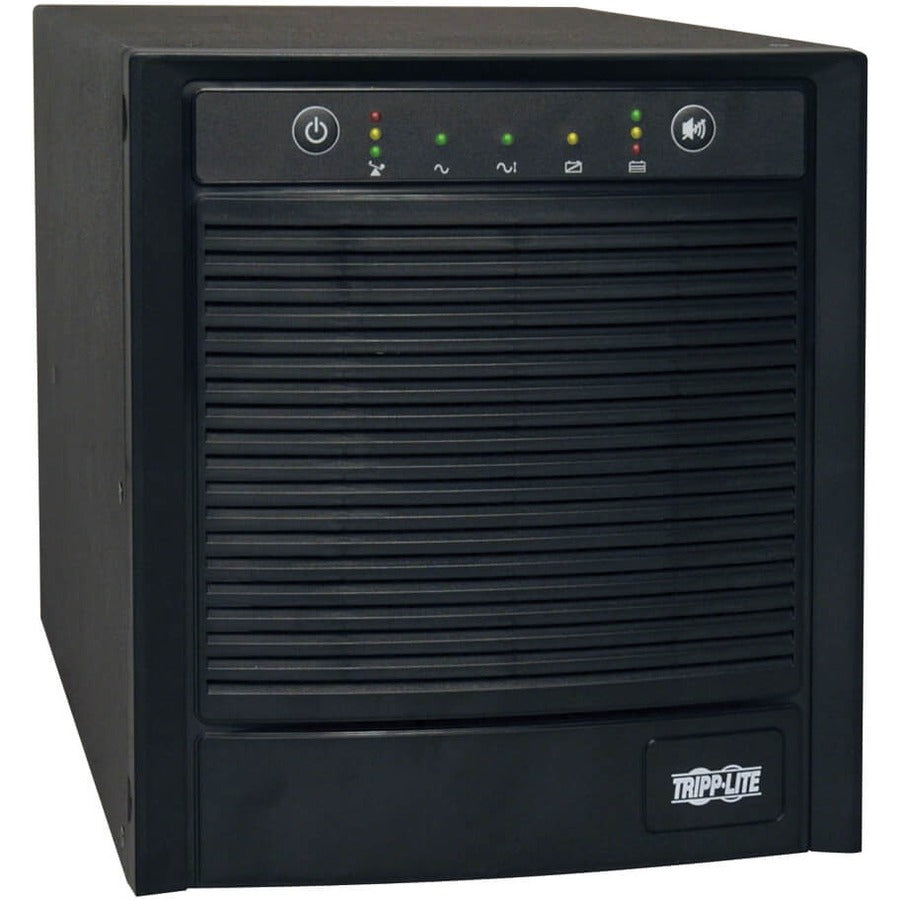

| Product Name: | SmartPro SMART2200SLT 2200VA Tower UPS |
| Marketing Information: | 2200VA line-interactive tower UPS system for server, networking and telecommunications equipment. Upright tower form factor. Offers sine wave 120V nominal output in both AC and battery modes. Switches to battery-derived AC output during power failures and extreme voltage variations. Line-interactive automatic voltage regulation (AVR) provides voltage boost/cut during brownouts/overvoltages to maintain regulated 120V nominal output over an input voltage range of 83-145V. Includes NEMA 5-20P input plug and 7 UPS-supported (6 x 5-15/20R & 1 L5-20R) output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and slot for Network Management Card option. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all three network interfaces. PowerAlert UPS management software is available via free download. Three-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation, and battery warning LEDs. Audible alarm. Self-test. Field-replaceable, hot-swappable internal batteries. Attractive all-black color scheme. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-20P |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Emergency Power OFF: | Yes |
| Transfer Time: | 4 ms | Power Description |
| Load Capacity (VA): | 2.20 kVA |
| Load Capacity (Watt): | 1.60 kW |
| Input Voltage: | 120 V AC |
| Input Current: | 14.80 A |
| Output Voltage: | 120 V AC | Management |
| Network Management: | SNMP Manageable | Interfaces/Ports |
| Modem (RJ-11): | Yes |
| USB: | Yes | Battery Information |
| Backup/Run Time (Full Load): | 5 Minute |
| Backup/Run Time (Half Load): | 13 Minute |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 10.50" (266.70 mm) |
| Width: | 8.88" (225.43 mm) |
| Depth: | 12.50" (317.50 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 25.85 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Certifications & Standards: | Tested to UL1778 (USA), CSA C22.2 No. 107.3 (Canada), RoHS compliant, Class A (Emissions), NOM (Mexico) |
| Software Included: | PowerAlert Software |
| Country of Origin: | China | Warranty |
| Limited Warranty: | 3 Year |
