Tripp Lite

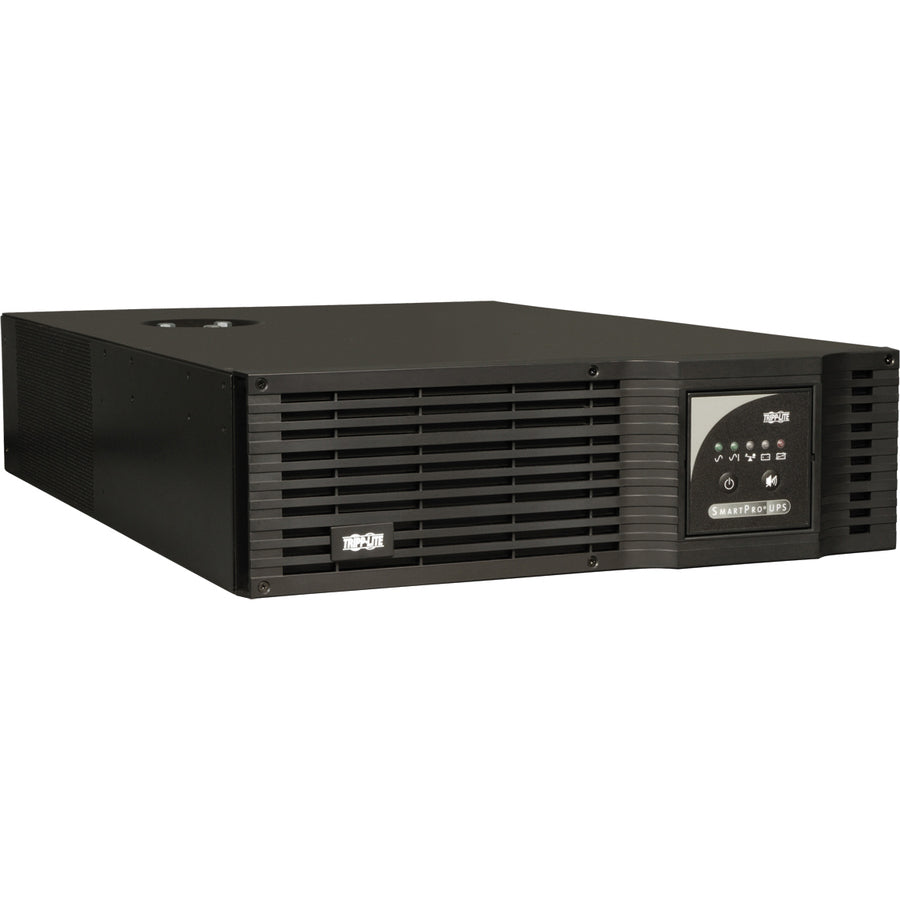

Tripp Lite SmartPro SMART5000TEL3U 5000VA Tower/Rack-mountable UPS - SMART5000TEL3U - Line-interactive UPS, 208 V AC, Rack/Tower, 3U, 208 V AC, NEMA L6-30P, SmartPro, 24 Minute, 10 Minute, 5 kVA/3.75 kW
Tripp Lite SmartPro SMART5000TEL3U 5000VA Tower/Rack-mountable UPS - SMART5000TEL3U - Line-interactive UPS, 208 V AC, Rack/Tower, 3U, 208 V AC, NEMA L6-30P, SmartPro, 24 Minute, 10 Minute, 5 kVA/3.75 kW
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMART5000TEL3U
- Input Voltage: 208 V AC
- Form Factor: Rack/Tower
- Rack Height: 3U
- Plug/Connector Type: NEMA L6-30P
- Product Family: SmartPro
- Backup/Run Time (Half Load): 24 Minute
- Backup/Run Time (Full Load): 10 Minute
- Load Capacity: 5 kVA/3.75 kW
Marketing Information: Tripp Lite's SMART5000TEL3U intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and surges in a compact rackmount housing. Completely self-contained UPS system occupies only 3 rack spaces (3U) in a standard 19 inch rack, making this model one of the smallest 5kVA UPS systems available. Included accessories support mounting 4 post rack enclosures. Large capacity 5000 VA/3750 watt UPS system accepts raw AC input, adjusting output to regulated 208V levels. One pair of 120V outlets support up to 600VA monitors and other low voltage accessories. Includes slot for internal Network Management Card option. Includes USB and 2 DB9 monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Five outlets (two L6-20R, one L6-30R and two 5-15R) allow the connection of high current 20 and 30 amp 208V connectors and up to two 120V devices (max 600VA at 120V).
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Emergency Power OFF | Yes |
| Transfer Time | 8 ms |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 3.75 kW |
| Input Voltage | 208 V AC |
| Input Current | 24 A |
| Output Voltage | 208 V AC |
| Network Management | SNMP Manageable |
| Modem (RJ-11) | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 10 Minute |
| Backup/Run Time (Half Load) | 24 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Hot Swappable | Yes |
| Height | 5.25" (133.35 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 25" (635 mm) |
| Rack Height | 3U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 143.30 lb (64999.79 g) |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards | UL1778 (USA), CSA (Canada), FCC Class A (Emissions) |
| Software Included | PowerAlert Software |
| Country of Origin | Taiwan |
| Limited Warranty | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.

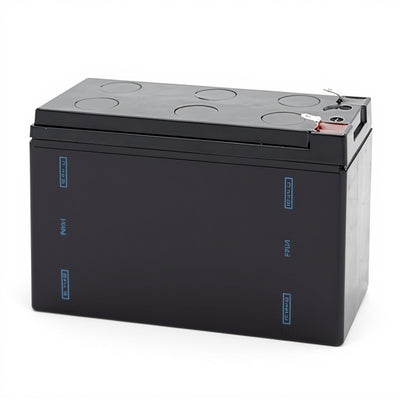

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
