| UPC | 0037332120304 |
| 2200VA/1600W - 7 Minute Full Load - 8 x IEC 320-C13, 1 x IEC 320-C19 | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SMARTINT2200VS |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartPro |

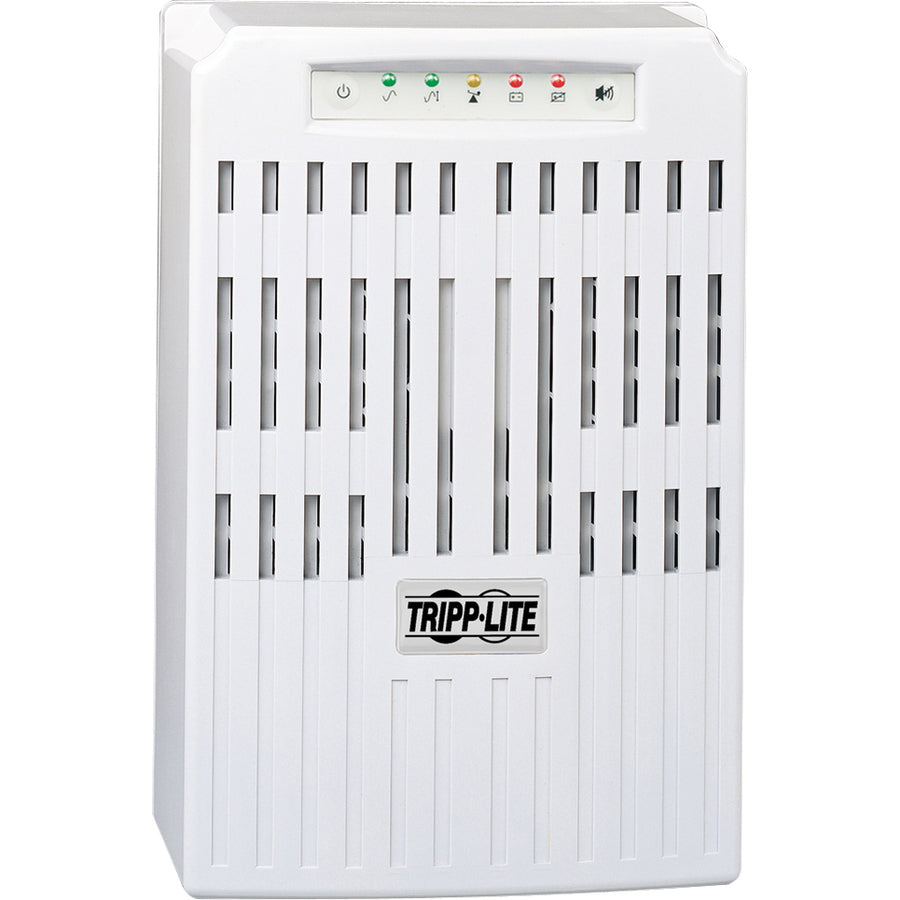

| Product Name: | SmartPro 2200VA Tower UPS |
| Marketing Information: | Tripp Lite's SMARTINT2200VS intelligent, line interactive tower UPS prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Large internal batteries offer 19 minutes half load runtime and 7 minutes at full load. Maintains regulated 230V nominal output without using battery power during brownouts and overvoltages from 151 to 282V. 2200VA power handling capability offers compatibility with sensitive electronic applications. Includes a total of 9 outlets with 3 load banks (2 outlets each). Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | IEC 320-C20 |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Emergency Power OFF: | Yes |
| Transfer Time: | 4 ms | Power Description |
| Load Capacity (VA): | 2.20 kVA |
| Load Capacity (Watt): | 1.60 kW |
| Input Voltage: | 220 V AC |
| Output Voltage: | 230 V AC |
| Waveform Type: | Pulse-width Modulated Sine Wave |
| Surge Energy Rating: | 1800 J |
| Circuit Breaker: | Yes | Management |
| Network Management: | SNMP Manageable |
| Alarm: | Utility Power Failure | Controls/Indicators |
| Status Indicators: |
Five Front Panel LEDs:
|
Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes | Battery Information |
| Backup/Run Time (Full Load): | 7 Minute |
| Backup/Run Time (Half Load): | 19 Minute |
| Battery Life: | 6 Year |
| Typical Battery Recharge Time: | 4 Hour |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 122°F (50°C) | Physical Characteristics |
| Color Family: | Gray |
| Product Color: | Gray |
| Height: | 14.25" (361.95 mm) |
| Width: | 9.25" (234.95 mm) |
| Depth: | 12" (304.80 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 24.49 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
Output Frequency Regulation:
|
| Certifications & Standards: |
|
| Country of Origin: | China | Warranty |
| Limited Warranty: | 2 Year |
