| UPC | 0037332186232 |
| 2U Rack/Tower - 6.40 Minute Stand-by - 120 V AC Input - 120 V AC Output - Serial Port - USB - 6 x NEMA 5-15R | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SMC10002URM |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartPro |
| Product Model: | SMC10002URM |

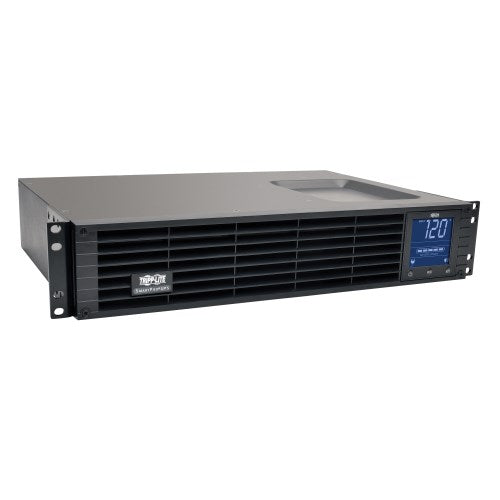

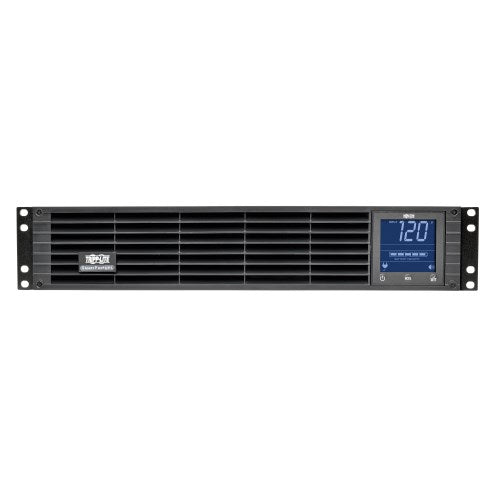

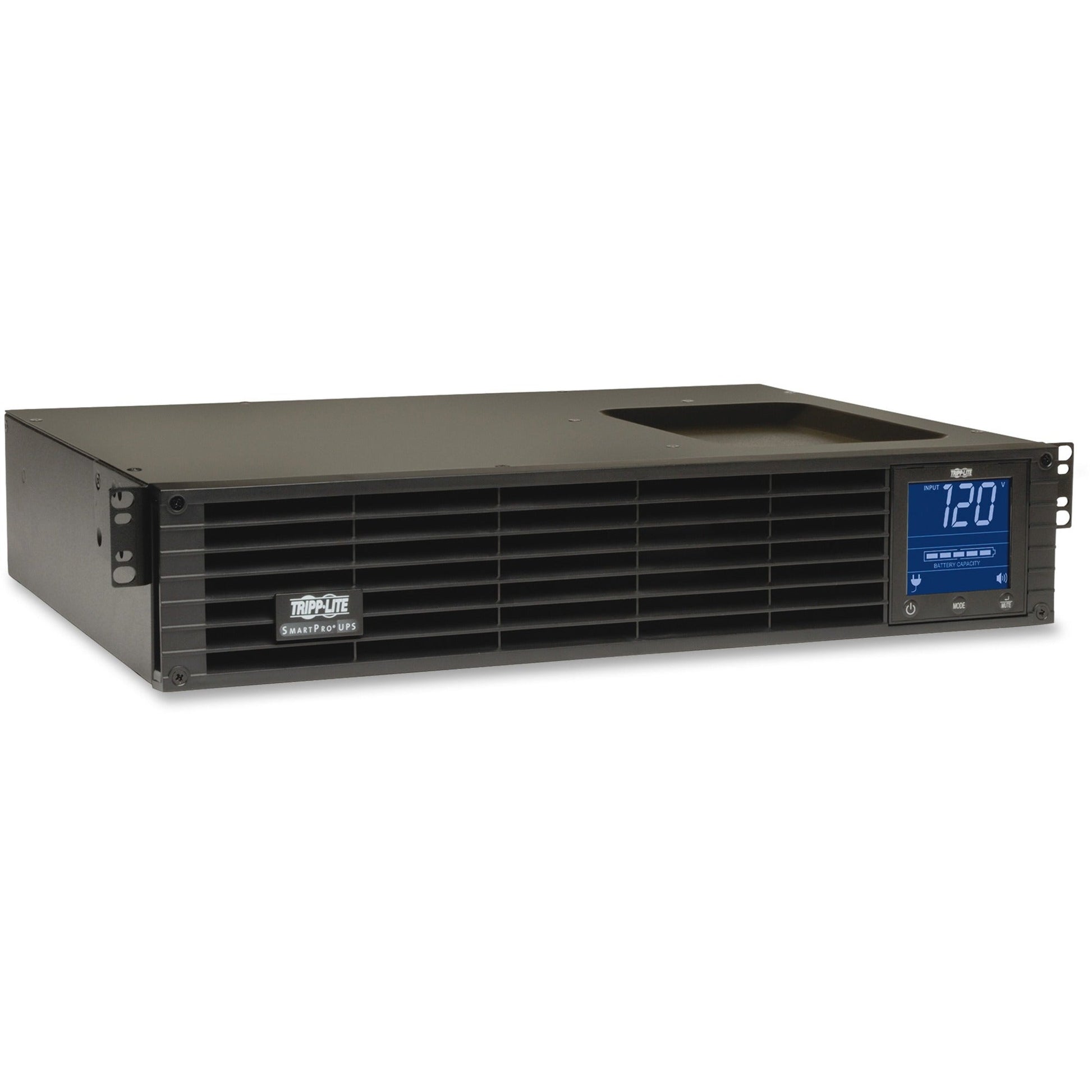

| Product Name: | Line-interactive UPS Power Supply |

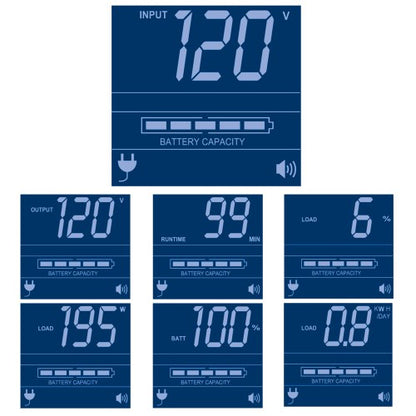

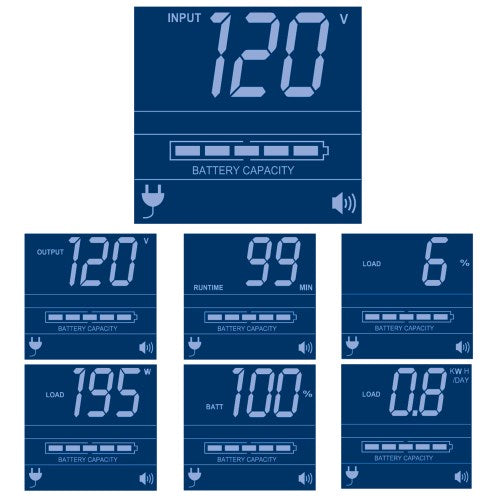

| Marketing Information: | Line-interactive, uninterruptible power supply (UPS) with enhanced LCD interface offers network-grade power protection for your critical server, network and telecommunications equipment. UPS with built-in, auto-voltage regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of a power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption. 95 percent line-mode efficiency offers reduced heat emissions and operating costs. USB and RS-232 ports work with PowerAlert software to communicate detailed UPS status and site power conditions. Communication ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. |
| Packaged Quantity: | 1 Each |
| Product Type: | Line-interactive UPS | Technical Information |

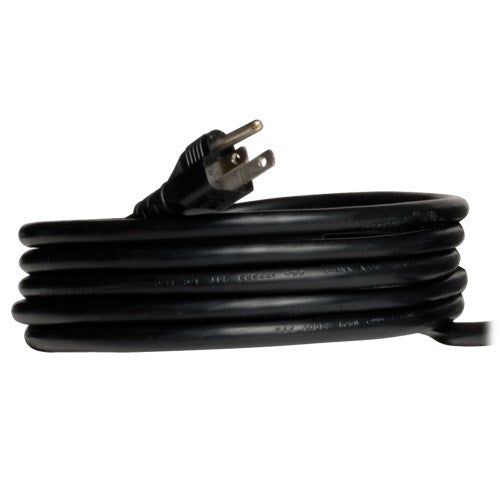

| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |

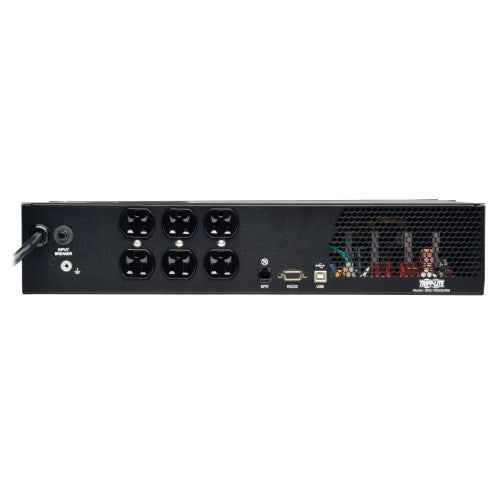

| Receptacle Detail: | 6 x NEMA 5-15R |
| Protection Type: |
|
| Emergency Power OFF: | Yes |
| Cord Length: | 9.8 ft | Power Description |
| Load Capacity (VA): | 1 kVA |
| Load Capacity (Watt): | 700 W |
| Input Voltage: | 120 V AC |
| Input Current: | 9.20 A |
| Output Voltage: | 120 V AC |
| Waveform Type: |
|
| Surge Energy Rating: | 570 J |
| Circuit Breaker: | Yes | Management |
| Alarm: |
|
| Battery Management: | user-replaceable | Controls/Indicators |
| Status Indicators: | LEDs | Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes | Battery Information |
| Backup/Run Time (Full Load): | 6.40 Minute |
| Backup/Run Time (Half Load): | 15.60 Minute |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104°F (40°C) |
| Sound Emission: | 45 dB |
| Thermal Dissipation: | 122 BTU/h | Physical Characteristics |
| Height: | 3.45" (87.63 mm) |
| Width: | 17.35" (440.69 mm) |
| Depth: | 12.50" (317.50 mm) |
| Rack Height: | 2U |

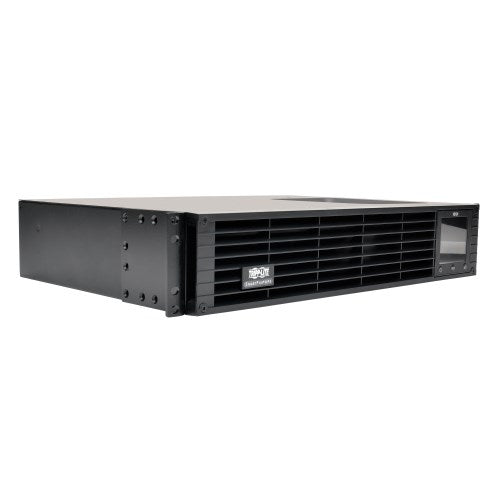

| Form Factor: | Rack/Tower |
| Weight (Approximate): | 16.06 kg | Miscellaneous |

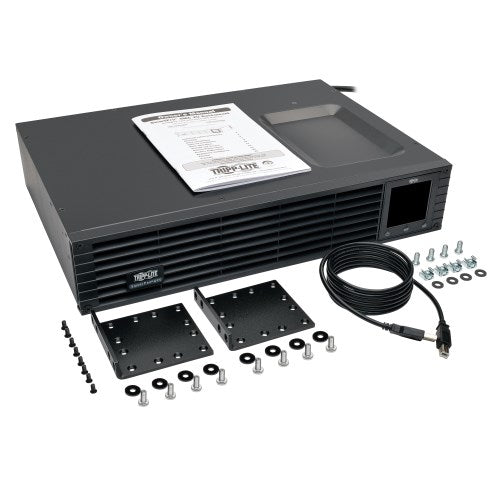

| Package Contents: |
|
| Certifications & Standards: | UL Listed Certification |
| Recycled: | No |
| Assembly Required: | No |
| Country of Origin: | China |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year |
