| UPC | 0037332140425 |
| Tower - 4.50 Hour Recharge - 11 Minute Stand-by - 220 V AC Input - 230 V AC Output - Serial Port - USB - 6 x IEC 60320 C13 | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SMX1200XLHG |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartPro |
| Product Model: | SMX1200XLHG |

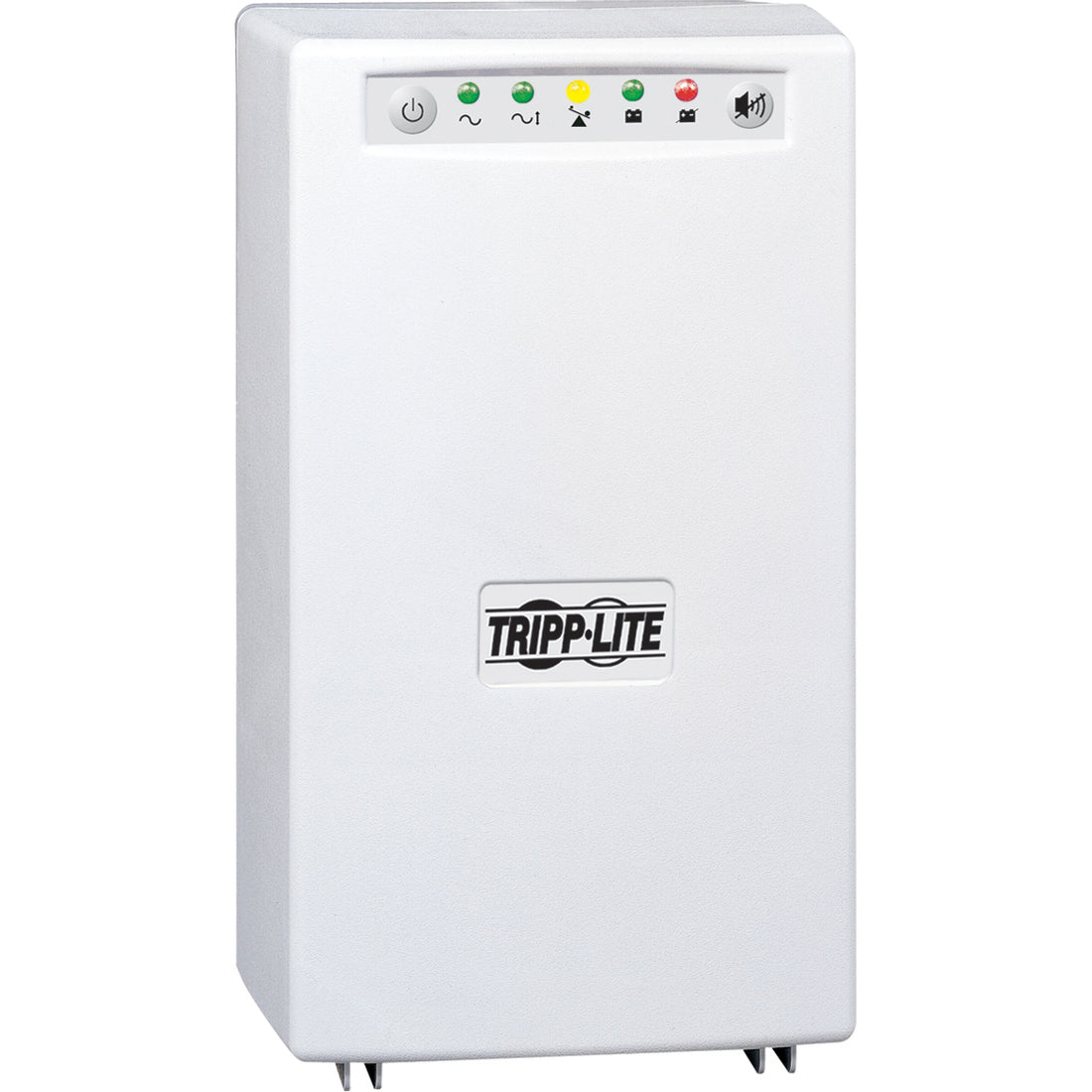

| Product Name: | SmartPro SMX1200XLHG 1000 VA Tower UPS |

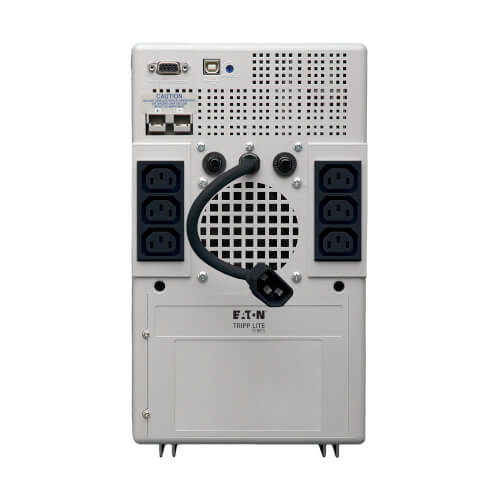

| Marketing Information: | Tripp Lite's SMX1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 27.5 minutes of runtime for a half load, or 11 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX1200XLHG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps. This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15 cm (6 in.) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules. The SMX1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite's included PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure. Application Usage This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX1200XLHG in this type of application will void the battery warranty Provides Ideal UPS Backup in Healthcare Facilities
|
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | IEC 60320 C14 |
| Receptacle Type: | IEC 60320 C13 |
| Receptacle Detail: | 6 x IEC 60320 C13 | Power Description |
| Load Capacity (VA): | 1 kVA |
| Load Capacity (Watt): | 750 W |
| Input Voltage: | 220 V AC |
| Input Current: | 5 A |
| Output Voltage: | 230 V AC | Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes | Battery Information |
| Backup/Run Time (Full Load): | 11 Minute |
| Backup/Run Time (Half Load): | 27.50 Minute |
| Typical Battery Recharge Time: | 4.50 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 12.70" (322.58 mm) |
| Width: | 7.50" (190.50 mm) |
| Depth: | 9.10" (231.14 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 20.64 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | CE IEC 60601-1 (Medical) Class B (Emissions) |
| Software Included: | PowerAlert Software |
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
