| UPC | 037332158253 |
| 14U Rack/Tower - 8 Hour Recharge - 5.50 Minute Stand-by - 220 V AC Input - 120 V AC, 208 V AC, 240 V AC Output - 2 x NEMA L6-30R, 4 x NEMA 5-15R, 8 x NEMA 5-15/20R, 8 x IEC 60320 C19 - Serial Port - USB | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SU16KRT-1TF |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartOnline |
| Product Series: | EZ |
| Product Model: | SU16KRT-1TF |

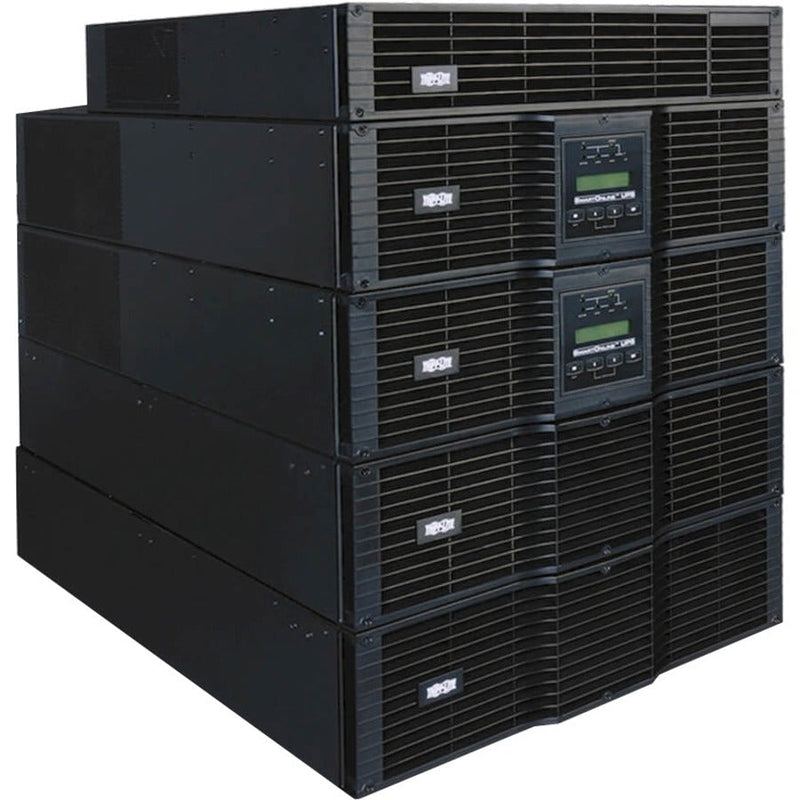

| Product Name: | SmartOnline EZ SU16KRT-1TF 16kVA Tower/Rack Mountable UPS |
| Marketing Information: | Tripp Lite SU16KRT-1TF 16,000VA / 16kVA / 14,400 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 14U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 8kVA, and non-redundant operation at loads between 8 and 16kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hardwired |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Transfer Time: | 0 ns |
| Overload Protection: | Yes | Power Description |
| Load Capacity (VA): | 16 kVA |
| Input Voltage: | 220 V AC |
| Output Voltage: |
|
| Input Frequency: | 60 Hz |
| Output Frequency: | 60 Hz |
| Input Current: | 88.40 A | Management |
| Network Management: | SNMP Manageable |
| Bypass Switch: |
|
| Emergency Power OFF: | Yes | Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes |
| Modular Slots: | Communications Slot | Battery Information |
| Backup/Run Time (Full Load): | 5.50 Minute |
| Backup/Run Time (Half Load): | 13.50 Minute |
| Typical Battery Recharge Time: | 8 Hour | Physical Characteristics |
| Form Factor: | Rack/Tower |
| Rack Height: | 14U |
| Height: | 5.14" (130.56 mm) |
| Width: | 17.50" (444.50 mm) |
| Depth: | 26" (660.40 mm) |
| Weight (Approximate): | 19.50 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: | Output Receptacles: 8 x C19 |
| Software Included: | PowerAlert Software |
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
