Tripp Lite

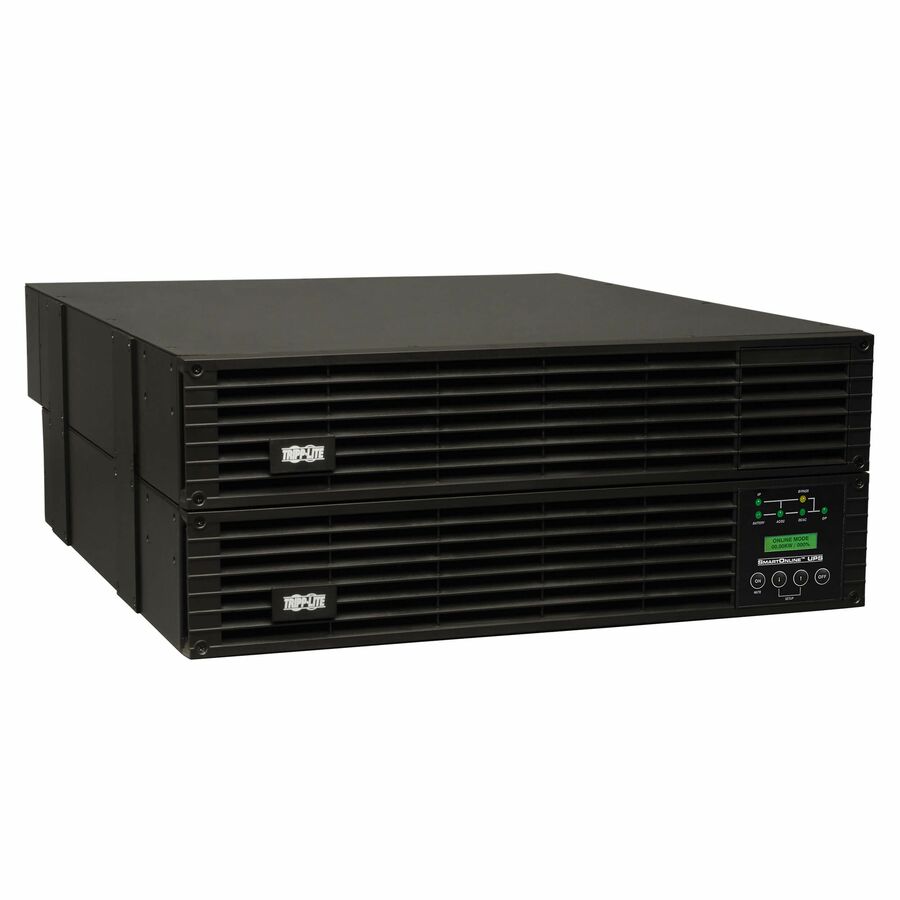

Tripp Lite by Eaton SmartOnline E SU5000RT4UHV 5kVA Tower/Rack-Mountable UPS - SU5000RT4UHV - Double Conversion Online UPS, 220 V AC, Rack/Tower, 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC, NEMA L6-30P, SmartOnline E, 11 Minute, 3.50 Minute, 5 kVA
Tripp Lite by Eaton SmartOnline E SU5000RT4UHV 5kVA Tower/Rack-Mountable UPS - SU5000RT4UHV - Double Conversion Online UPS, 220 V AC, Rack/Tower, 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC, NEMA L6-30P, SmartOnline E, 11 Minute, 3.50 Minute, 5 kVA
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: SU5000RT4UHV
- Input Voltage: 220 V AC
- Form Factor: Rack/Tower
- Plug/Connector Type: NEMA L6-30P
- Product Family: SmartOnline E
- Backup/Run Time (Half Load): 11 Minute
- Backup/Run Time (Full Load): 3.50 Minute
- Load Capacity: 5 kVA
Marketing Information:
Tripp Lite SU5000RT4UHV 5000VA / 5kVA / 4500 watt on-line, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a single 4U rack/tower compatible housing. Single all-in-one rack / tower housing installs in only 4 rack spaces (4U) with a maximum installed depth of only 20.7 in. / 52.6 cm. Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal during brownouts as low 100V and overvoltages as high as 300V. Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring. L6-30P input, plus two L6-30R and two L6-20R outlets.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Load Capacity (VA) | 5 kVA |
| Input Voltage | 220 V AC |
| Output Voltage |
|
| Output Frequency | 50 Hz |
| Input Current | 24 A |
| Network Management | SNMP Manageable |
| Bypass Switch | Automatic |
| Emergency Power OFF | Yes |
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Typical Battery Recharge Time | 6 Hour |
| Form Factor | Rack/Tower |
| Rack Height | 4U |
| Height | 6.85" (173.99 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 21" (533.40 mm) |
| Weight (Approximate) | 113.60 lb (51528.09 g) |
| Package Contents |
|
| Software Included | PowerAlert Software |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
