The SV40KM2P0B SmartOnline® SV Series 40kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems.

The SV40KM2P0B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS) and two 20kVA SV20PM power modules. Space is included for up to two additional user-installable SV20PM power modules. External ±120VDC battery options, such as BP240V370 or EBP240VXXX series battery cabinets, are available from Tripp Lite for extended runtime.

The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.

With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 40kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting.

Features

40kVA 36kW 3-Phase Medium-Chassis UPS System

• Supports 208/120V or 220/127V AC 50/60Hz Wye 4-wire plus Earth hardwire input and output wiring
• Dual hardwire input design enables operation from up to 2 power sources
• Network-grade sine-wave AC output with 1% output voltage regulation and less than 1% output total harmonic distortion
• Tested to UL 1778 (U.S.), CSA (Canada) and NOM (Mexico) standards
• High 0.9 power factor for maximum power to the connected load

Pre-Installed WEBCARDLX Network Interface

• Allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH
• Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
• Optional EnviroSense2 sensors (sold separately) enable site monitoring of temperature, humidity and contact-closure status
• No Java required

Modular, Scalable Design for Maximum Flexibility

• Modular configuration with hot-swappable power modules and batteries enables easy, fast maintenance with zero downtime
• Open slots for up to 2 additional 20kVA SV20PM power modules accommodate increased capacity up to 80kVA (or 60kVA with N+1 fault tolerance)
• Supports external ±120VDC battery options for extended runtimes

Optional Economy Mode

• Up to 99% efficient in optional economy mode to lower operating and cooling costs

Wide Input/Narrow Output Voltage Operating Range

• Enables full continuous online operation during brownouts as low as 121V and overvoltages up to 253V
• Regulates output voltage within 1% of the selected nominal output voltage in on-line double-conversion mode

Advanced IGBT Inverter with Digital Signal Processor (DSP) Technology

• Provides for less than 2% input total harmonic distortion (THDi) to support 1:1 generator sizing and prevent the need to oversize generator systems relative to UPS capacity

Automatic and Manual Bypass Options

• Keep connected equipment operational during routine maintenance or critical power module failure

• 120 V AC
• 127 V AC
• 208 V AC
• 220 V AC

• 120 V AC
• 208 V AC
• 127 V AC
• 220 V AC

• UPS Alarm
• Power Off
• Power On
• Battery Mode
• Low Battery
• UPS Fault

Front Panel LCD Display:

• Complete operating status display
• Setting and selection options for all UPS functions

Front panel LED indicators:

• Input (green)
• Bypass (amber)
• Inverter (green)
• Battery (red)
• Alarm (red)

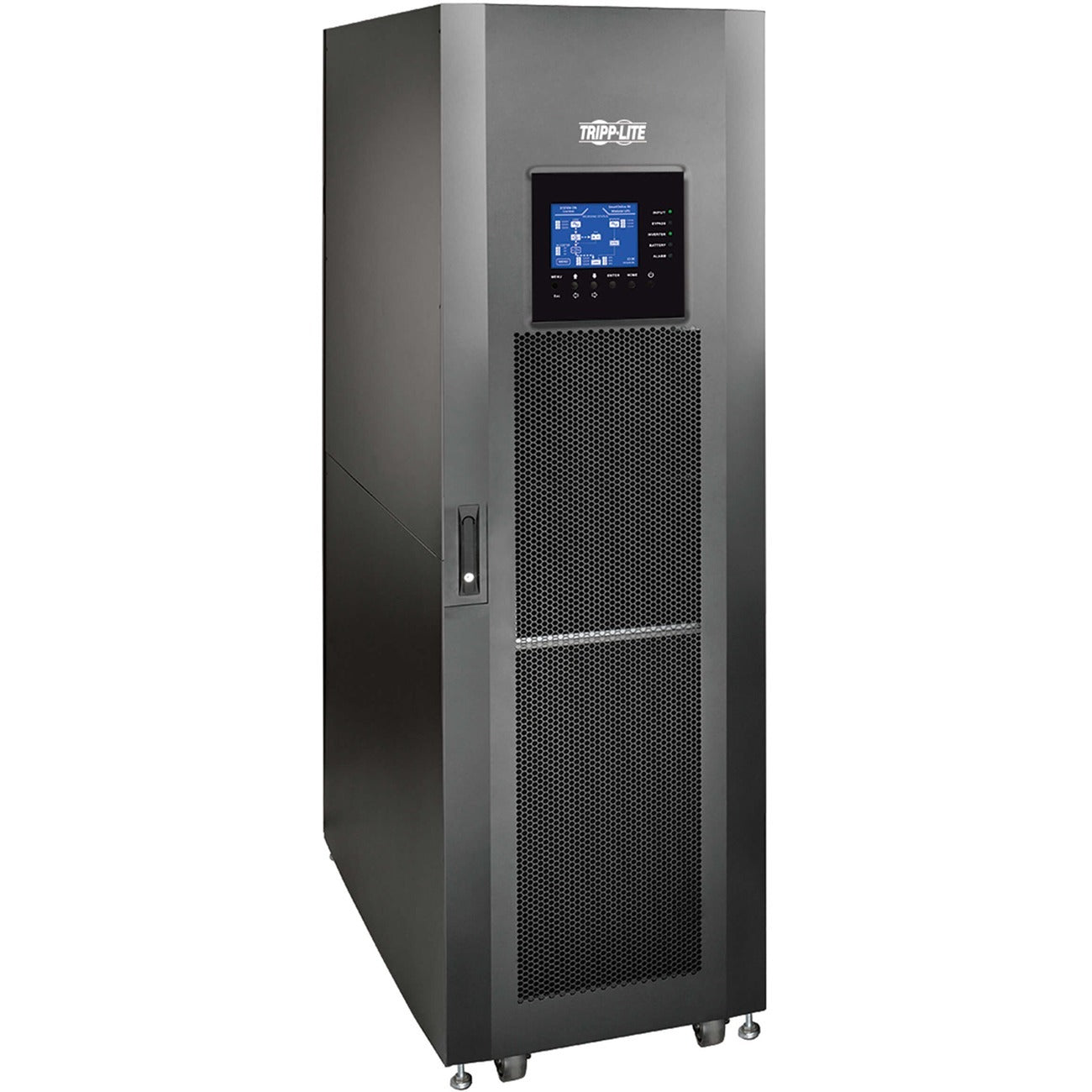

• SmartOnline SV40KM2P0B 40kVA Tower UPS
• Pre-installed WEBCARDLX Network Interface
• 1 x SV20PM 20kVA Power Module (Shipped Separately)
• Owner's Manual
• DB9 Cable
